RGB Miniature Male BNC, 75 Ohm Compression Connector

Description

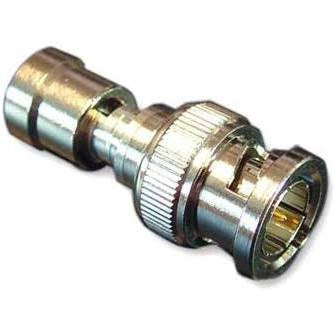

West Penn CN-BNCP-RGB Compression Connector – RGB Miniature Male BNC, 75 Ohm

The West Penn CN-BNCP-RGB Compression Connector is a professional-grade male BNC compression connector designed specifically for RGB miniature coaxial cable applications. Engineered to meet the demanding performance requirements of video, CCTV, broadcast, and AV installations, this connector delivers consistent impedance, excellent return loss, and a secure mechanical termination.


Product Features

  • Precision 75 Ohm impedance for high-quality video signal integrity

  • Compression-style termination for reliable, repeatable installations

  • Optimized for RGB miniature coaxial cable

  • Excellent return loss and VSWR performance across wide frequency ranges

  • Rugged brass construction with nickel plating for corrosion resistance

  • Secure cable retention with high pullout force rating


Electrical Performance Specifications

  • DC – 1 GHz

    • Return Loss: Greater than 27 dB

    • VSWR: Less than 1.10

  • DC – 2 GHz

    • Return Loss: Greater than 23 dB

    • VSWR: Less than 1.16

  • DC – 3 GHz

    • Return Loss: Greater than 22 dB

    • VSWR: Less than 1.18


Mechanical Specifications

  • Connector Type: Male BNC

  • Construction: Compression Connector, RGB Miniature

  • Body Material: Brass

  • Body Plating: Nickel

  • Cable Pullout Force: Exceeding 45 in/lbs

  • Center conductor: 0.015 – 0.025 in

  • Dielectric OD: 0.065 – 0.078 in

  • Outer jacket OD: 0.095 – 0.115 in

  • Suitable for most RG174 / RG188 coaxial cable


Typical Applications

  • CCTV and security camera video connections

  • RGB and component video installations

  • Broadcast and studio video systems

  • Professional AV racks and patch panels


Installation & Use Case Example

For low-voltage installers working on multi-camera CCTV or RGB video distribution systems, the CN-BNCP-RGB allows fast, consistent terminations using standard compression tools. Its strong pullout force and low VSWR performance make it ideal for long-term reliability in commercial and residential environments.


Why Buy from Tri-Tek Electronics?

Tri-Tek Electronics supports professional installers, technicians, and hobbyists with knowledgeable staff and local inventory. With a retail location in Mesa, AZ, Tri-Tek serves Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding areas with fast local availability and expert support.

Product form

West Penn CN-BNCP-RGB Compression Connector – RGB Miniature Male BNC, 75 Ohm The West Penn CN-BNCP-RGB Compression Connector is a... Read more

Free local pickup in our store

SKU: WPNCN-BNCP-RGB

25 in stock

$3.50
