Simplified MFG SP14S: 1x4 HDMI 2.0 Splitter with Audio Extractor
Tri-Tek Electronics is proud to offer the Simplified MFG SP14S, a high-performance 1x4 HDMI splitter that supports HDMI 2.0 for 4K UHD video distribution and features integrated audio extraction. As an authorized distributor, we provide full manufacturer warranty coverage, competitive pricing, and comprehensive factory support.
Product Overview
The Simplified MFG SP14S is a versatile 1x4 HDMI splitter designed to distribute a single HDMI source to four displays simultaneously, ensuring high-quality video and audio across all outputs. With support for HDMI 2.0, this splitter handles 4K UHD resolutions at 60Hz, HDR, and a bandwidth of 18Gbps, making it ideal for both professional AV setups and home theaters. The integrated audio extractor allows you to separate audio from the HDMI signal for output to external audio systems, such as soundbars or AV receivers, without compromising video quality.
Key Features
-
1x4 HDMI Splitting: Distributes one HDMI source to four displays, providing consistent and high-quality video output.
-
4K UHD Resolution Support: Handles video resolutions up to 4K @ 60Hz (YUV 4:4:4), ensuring sharp and clear visuals.
-
HDMI 2.0 Compliance: Supports HDMI 2.0 with a bandwidth of 18Gbps for superior video and audio performance.
-
HDR and Dolby Vision™: Compatible with HDR10, HDR10+, and Dolby Vision™ for enhanced color depth and contrast.
-
Audio Extraction: Extracts audio from the HDMI signal for output to optical (Toslink) or analog (3.5mm) audio systems.
-
Advanced EDID Management: Ensures optimal compatibility between the source and displays, supporting a wide range of formats.
-
CEC Pass-Through: Supports Consumer Electronics Control (CEC) for simplified device management.
-
HDCP 2.2 Compliance: Ensures secure content transmission and compatibility with protected content.
-
Compact and Durable Design: Features a sleek and robust build for reliable performance in various environments.
-
Easy Installation: Plug-and-play setup with no additional configuration required.
Technical Specifications
| Specification |
Details |
| HDMI Inputs |
1 x HDMI |
| HDMI Outputs |
4 x HDMI |
| Max Resolution |
4K @ 60Hz (YUV 4:4:4) |
| Bandwidth |
18Gbps |
| HDR Support |
HDR10, HDR10+, Dolby Vision™ |
| Audio Extraction |
Optical (Toslink), Analog (3.5mm) |
| Audio Formats |
LPCM, Dolby Digital, DTS |
| EDID Management |
Comprehensive EDID handling |
| CEC Support |
CEC pass-through |
| HDCP Compliance |
HDCP 2.2 |
| Power Supply |
DC 5V, 1A |
| Dimensions |
6.3” x 3.5” x 1.0” |
| Weight |
0.8 lbs |
| Warranty |
3 Years |
Installation Scenario

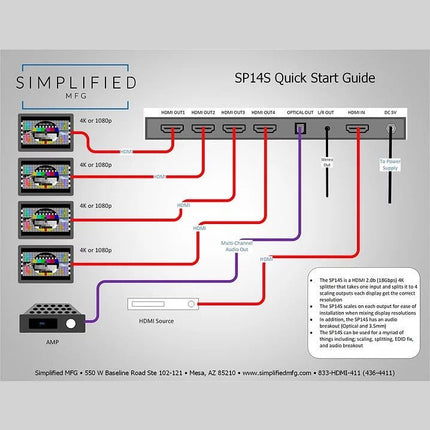

In a home theater setup, the Simplified MFG SP14S allows you to connect a single 4K media source, such as a Blu-ray player or a streaming device, to four different displays, providing each room with the same high-quality video and audio experience. The integrated audio extraction feature lets you route audio to a dedicated sound system, ensuring immersive sound for movies and shows.
In a corporate environment, the SP14S can distribute content from a single presentation source to multiple displays in conference rooms or training centers, ensuring that all attendees can view the material clearly and with consistent quality. The audio extractor can connect to a central sound system for clear and powerful audio during presentations.
For commercial applications, such as digital signage or retail displays, the SP14S provides a reliable solution for distributing promotional content or information to multiple screens throughout a store or venue. The audio extraction feature allows you to integrate background music or announcements into the audio system, enhancing the overall customer experience.
Tri-Tek Electronics Advantage
-
Authorized Distributor: Full warranty coverage and factory support.
-
Expert Support: Knowledgeable staff ready to assist with product selection and installation guidance.
-
Best Pricing: Competitive pricing with a commitment to quality and customer satisfaction.
