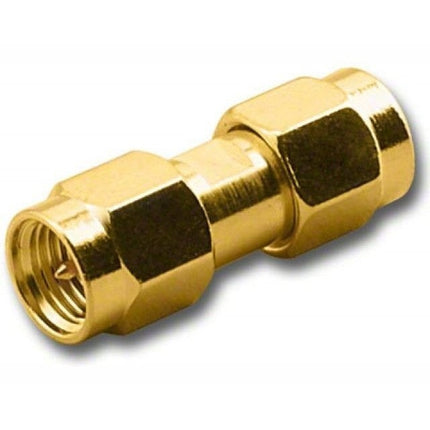

Pan Pacific SMA-2500P, SMA Plug to Plug Adapter, Straight
The Pan Pacific SMA-2500P is a high-performance SMA plug-to-plug adapter designed to connect two SMA female connectors seamlessly. This straight adapter is ideal for RF and microwave applications, ensuring minimal signal loss and a reliable connection. With its rugged construction, this adapter is well-suited for both commercial and industrial environments, including communication systems, antennas, test equipment, and signal boosters.
The SMA-2500P features gold-plated center contacts for optimal conductivity and nickel-plated brass bodies for durability and corrosion resistance. This ensures long-term reliability in high-frequency applications, making it a preferred choice for installers and technicians requiring a solid, high-quality connection between components.
Key Features:
-
Adapter Type: SMA plug-to-plug, straight
-
Connector Type: Male (plug) on both sides
-
Gold-Plated Contacts: Ensures low signal loss and excellent conductivity
-
Nickel-Plated Brass Body: Durable and corrosion-resistant
-
Compact Design: Ideal for space-constrained installations
-
Wide Frequency Range: Supports DC to 18 GHz for RF/microwave applications
Specifications:
-
Impedance: 50 Ohms
-
Frequency Range: DC to 18 GHz
-
VSWR: 1.2:1 (typical)
-
Center Contact Resistance: ≤ 3 mΩ
-
Outer Contact Resistance: ≤ 2 mΩ
-
Insulation Resistance: ≥ 5,000 MΩ
-
Temperature Range: -65°C to +165°C
-
Body Finish: Nickel-plated brass
-
Center Contact Finish: Gold-plated
Example Installation Scenario:
The Pan Pacific SMA-2500P is commonly used by technicians when connecting two RF cables with SMA female connectors in a wireless communication setup. For example, in a test environment, an installer might use this adapter to bridge the connection between an antenna and a signal analyzer, ensuring precise measurements and high-quality signal transmission. Its straight configuration allows for a compact and simple connection in tight spaces.
Benefits for Installers and Technicians:
-
High-Quality Signal Transmission: The gold-plated contacts provide minimal signal loss, even at high frequencies, making this adapter suitable for critical applications.
-
Durability: Nickel-plated brass ensures a robust connection that can withstand harsh environments.
-
Easy to Use: The straight plug-to-plug design simplifies the connection process between SMA female connectors.
Tri-Tek Electronics is an authorized distributor of Pan Pacific products, offering the SMA-2500P with a full manufacturer warranty. We ensure the best pricing, factory support, and reliable availability from our Mesa, AZ retail location.
