Description

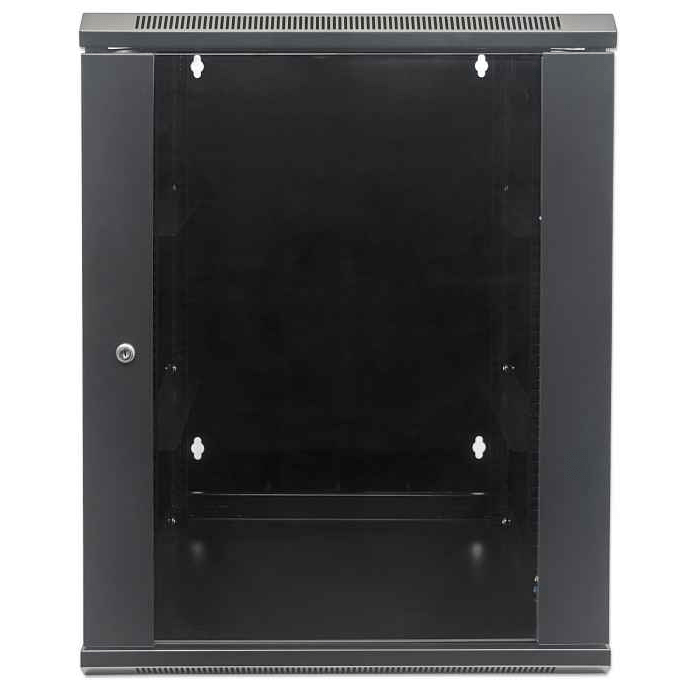

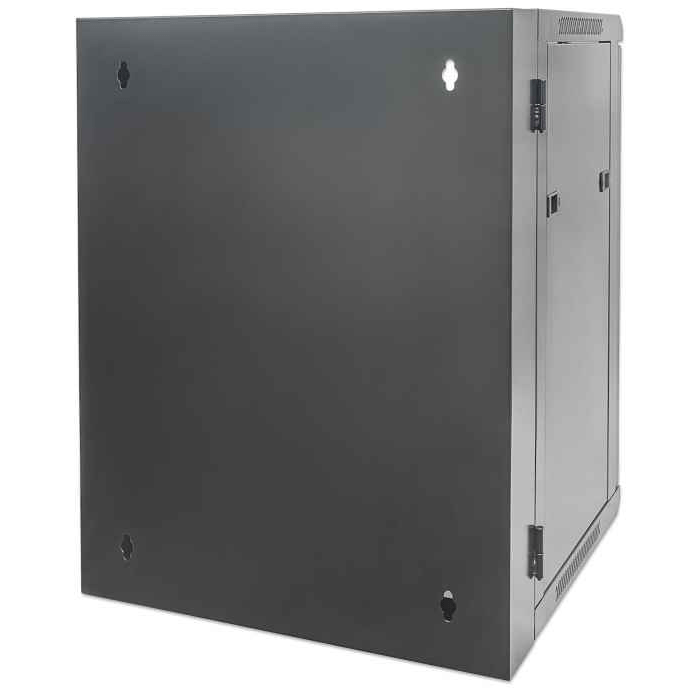

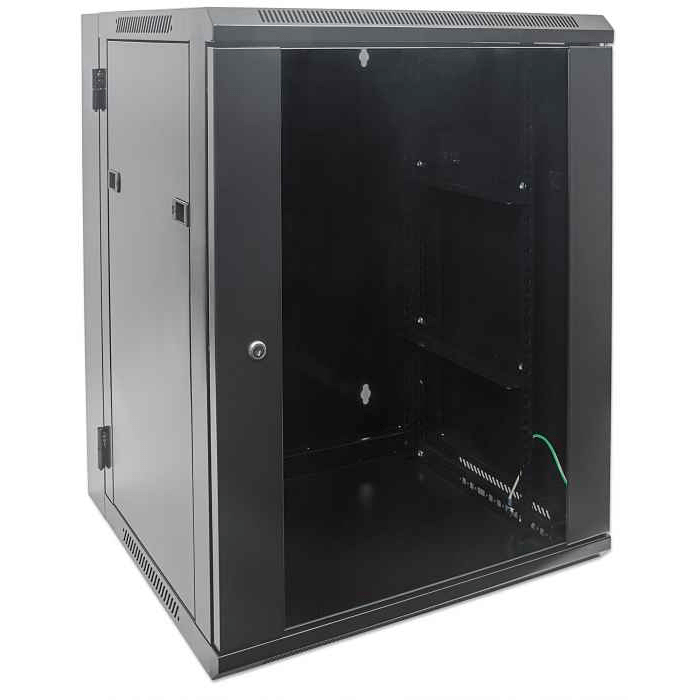

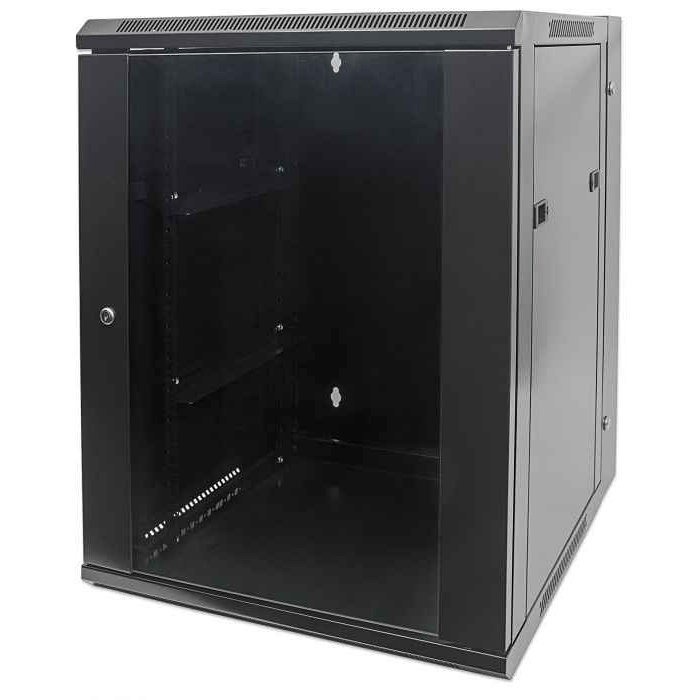

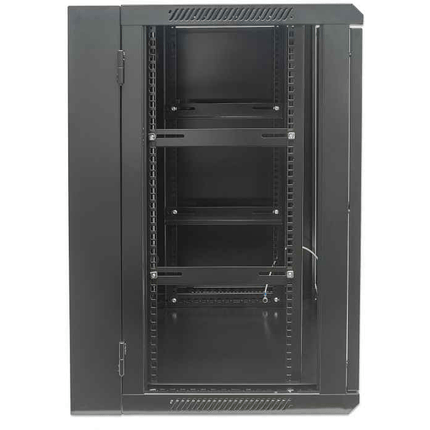

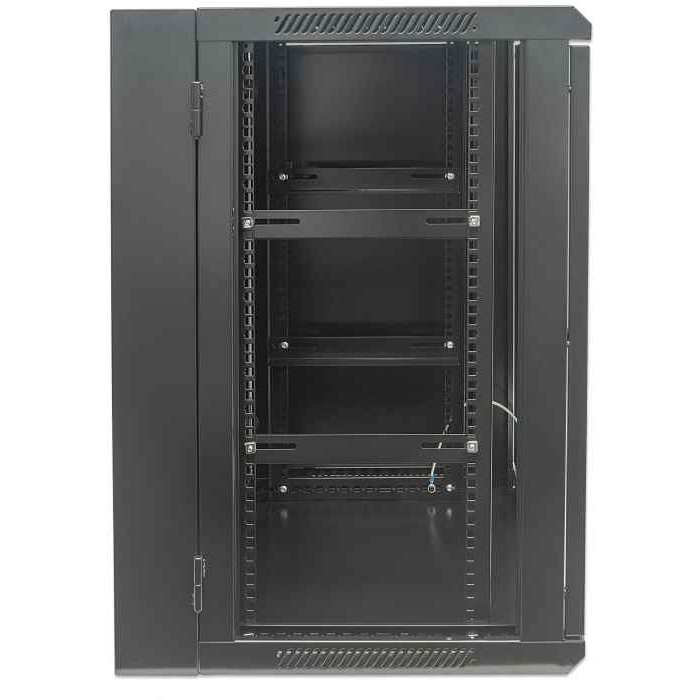

Intellinet 711845 9U 19″ Double Section Wallmount Cabinet
The Intellinet 711845 is a professionally built 9‑rack‑unit wall‑mount, 19″‑wide cabinet featuring a double‑section design for both front and rear access. It is ideal for network, server, telecom, or AV installations where floor space is limited. This fully assembled unit is configured for rapid deployment and constructed with durable materials, making it a great fit for installation and service professionals in the Phoenix‑Mesa‑Tempe region of Arizona.
Tri‑Tek Electronics, based in Mesa, AZ, is an authorized distributor providing full manufacturer warranty, factory support, and the best local pricing for Intellinet enclosures.
Key Features
-
9U 19″ wall‑mount cabinet with compact footprint
-
Double‑section design allows front and rear access for easy maintenance and cable routing
-
Maximum static load capacity: 30 kg (66 lbs)
-
Usable depth: 425 mm (16.73″), suitable for shallow network switches, patch panels, and UPS devices
-
Tempered‑glass front door opens beyond 180°
-

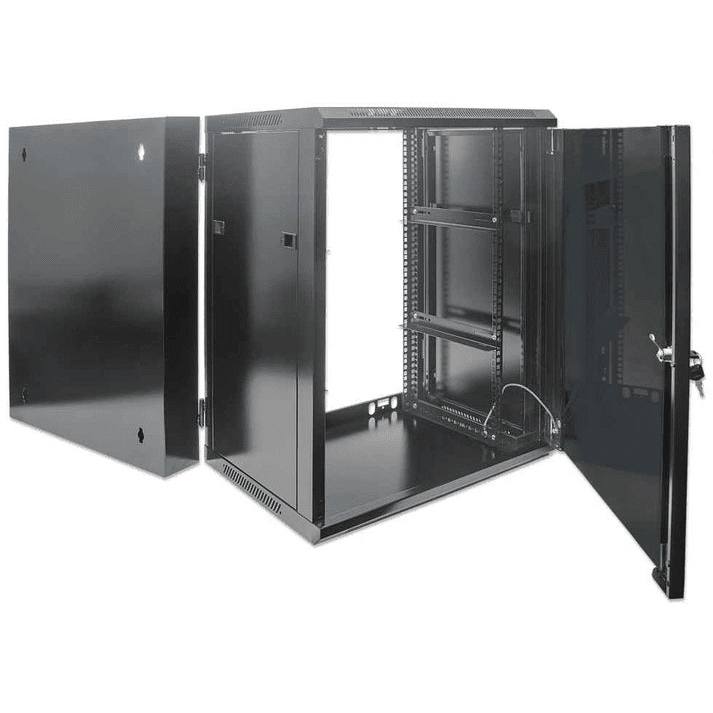

Lockable, removable side panels and a rear-access door simplify cabling and service
-
Constructed of cold‑rolled SPCC steel (up to 1.2 mm thick) with antistatic black powder coating (RAL 9004/9005)
-
Compliant with ANSI/EIA RS‑310‑D, IEC 60297‑2, DIN 41494 Parts 1 & 7
-
Ships fully assembled to reduce on-site labor
-
Includes installation accessories such as rack screws, cage nuts, and cabinet keys
-
Backed by a 3‑year manufacturer warranty
Specification Table
| Specification |
Value |
| Rack Units (U) |
9U |
| External Dimensions |
500 mm H × 600 mm W × 550 mm D (19.7″ × 23.6″ × 21.7″) |
| Usable Depth |
425 mm (16.73″) |
| Maximum Static Load |
30 kg (66 lbs) |
| Construction Material |
SPCC cold‑rolled steel, up to 1.2 mm thick |
| Finish |
Black (RAL 9004/9005) |
| Door & Access Features |
Tempered glass front door (>180°), rear door, lockable/removable side panels |
| Compliance Standards |
ANSI/EIA RS‑310‑D, IEC 60297‑2, DIN 41494 Part 1 & 7 |
| Warranty |
3‑year manufacturer warranty |
Installation / Usage Scenario
This 9U double‑section wall‑mount cabinet is ideal for compact network environments such as telecom rooms, IT closets, or AV setups in offices and buildings across Phoenix, Mesa, Chandler, and Gilbert. A local technician could mount a patch panel, PoE switch, and battery backup system inside, using the rear access section to route cables or perform maintenance without removing the unit from the wall. Its modest size and depth make it easy to install in small rooms or above desks where floor space is unavailable.
Why Choose Tri‑Tek Electronics?
-
Authorized Intellinet distributor offering genuine products with full factory warranty
-
Convenient Mesa, AZ retail location for same-day pickup or rapid delivery throughout the Phoenix metro area
-
Local expertise to help configure rack layouts, cooling strategies, and accessory selection
-
Support for Arizona-specific installation challenges including high ambient temperatures and space constraints
Final Recommendation
For compact networking installations requiring both front and rear access in a secure, wall‑mounted form factor, the Intellinet 711845 is a reliable, ready‑to‑use cabinet. Backed by Tri‑Tek Electronics in Mesa, AZ, it is ideal for technicians and installers needing efficient 9U rackmount solutions with minimal installation time.
