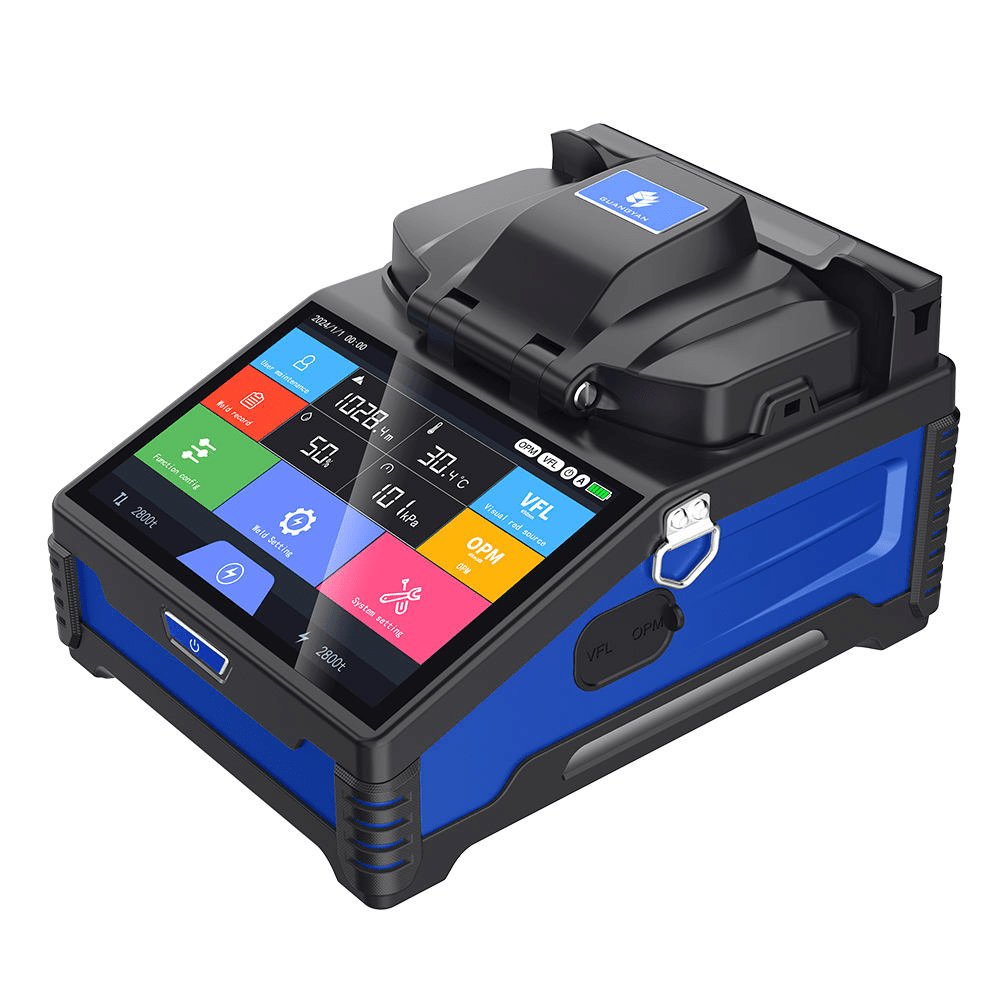

VPro K3S 6-Motor Touchscreen Core-Alignment Fusion Splicer
The VPro K3S is a compact, six-motor core-alignment fusion splicer designed for fast, repeatable single-fiber splicing in FTTH, campus, security, industrial and data-center applications. A bright 5-inch capacitive touchscreen, intelligent alignment, and integrated utility functions make it easy for new and experienced technicians to achieve low-loss results in the field.
Tri-Tek Electronics is an authorized distributor and ensures full manufacturer warranty coverage, best pricing, and factory support.
Key Features
-

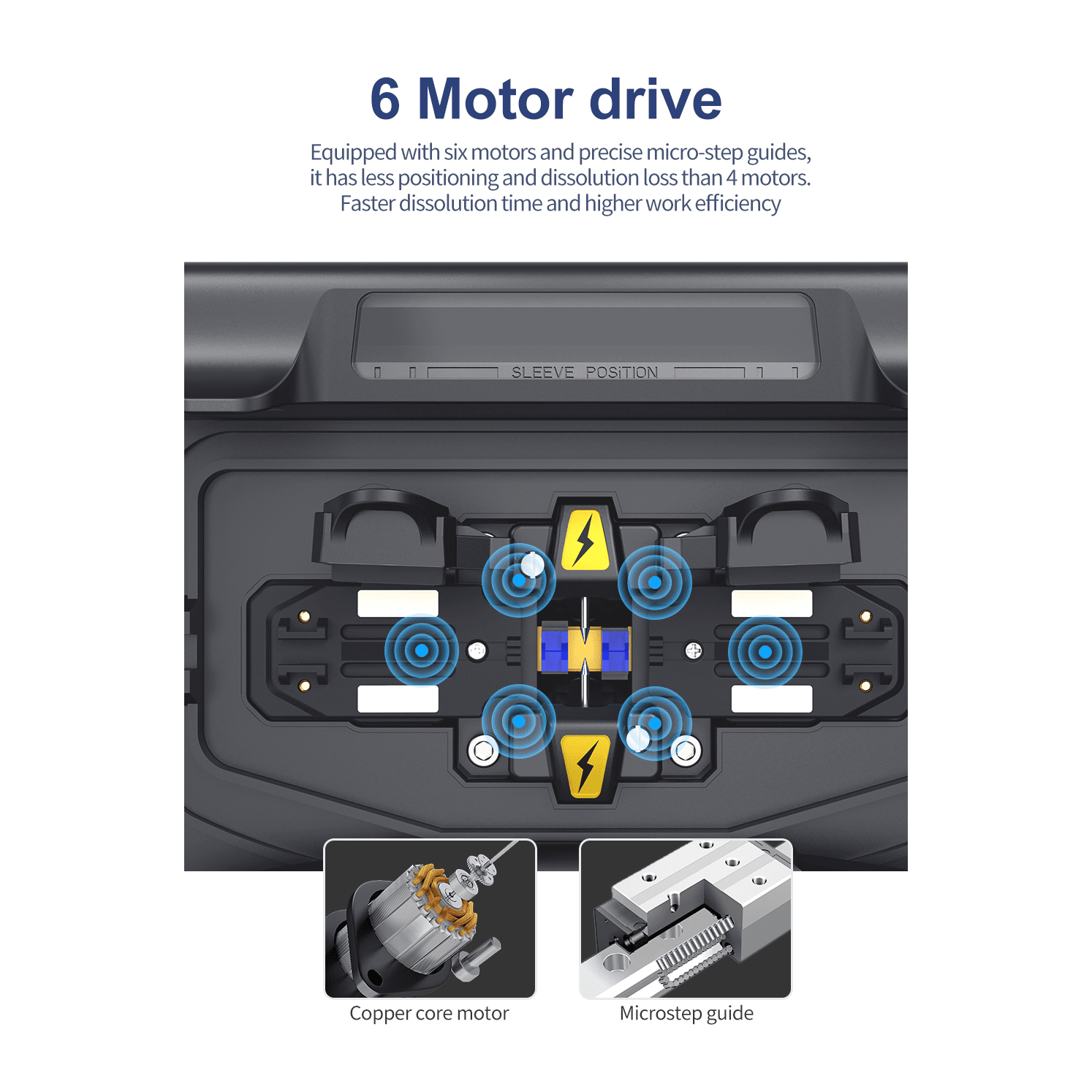

Six-motor, core-alignment engine for consistently low splice loss
-
Fast cycles: typical splice ~8 s; heat ~18 s for common sleeves
-

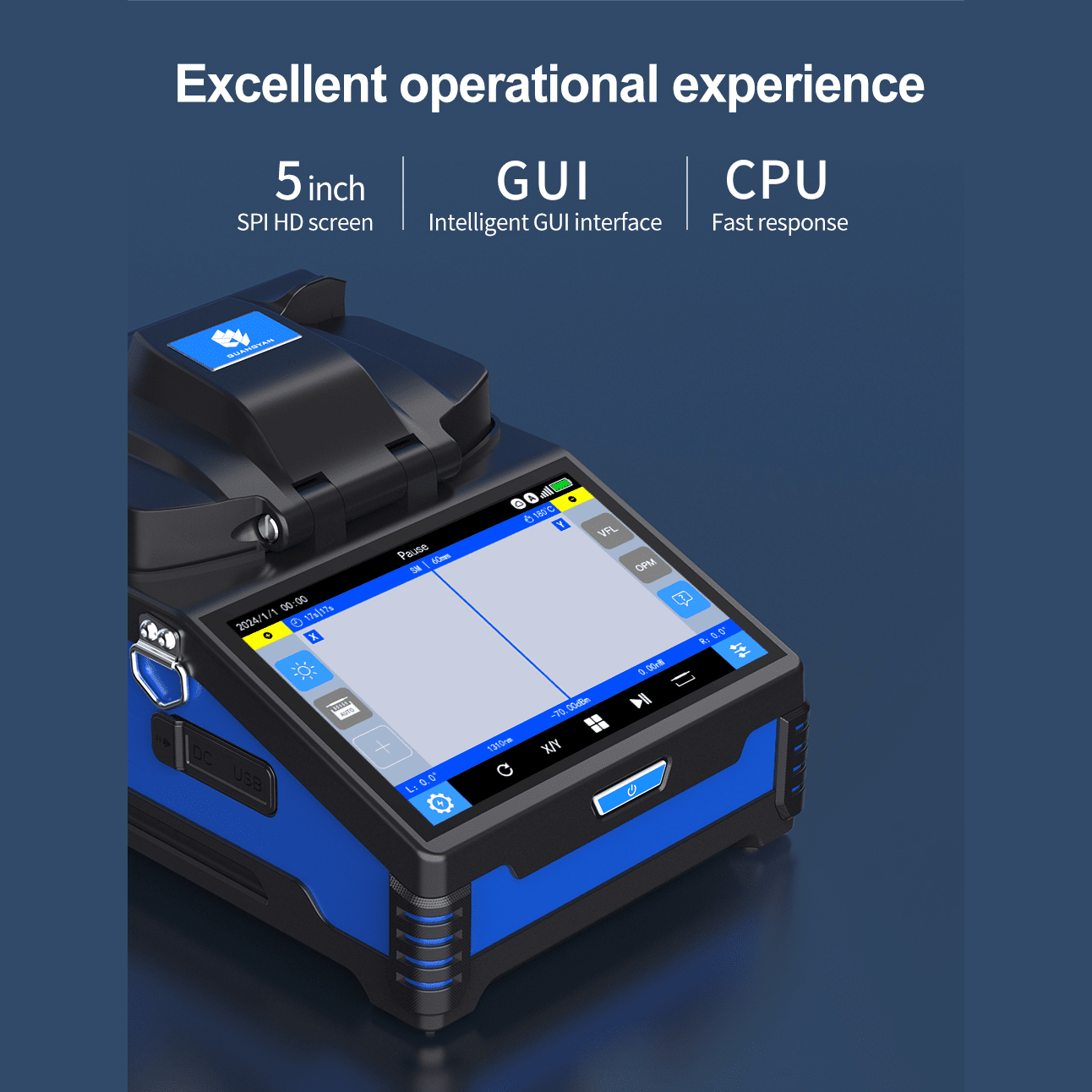

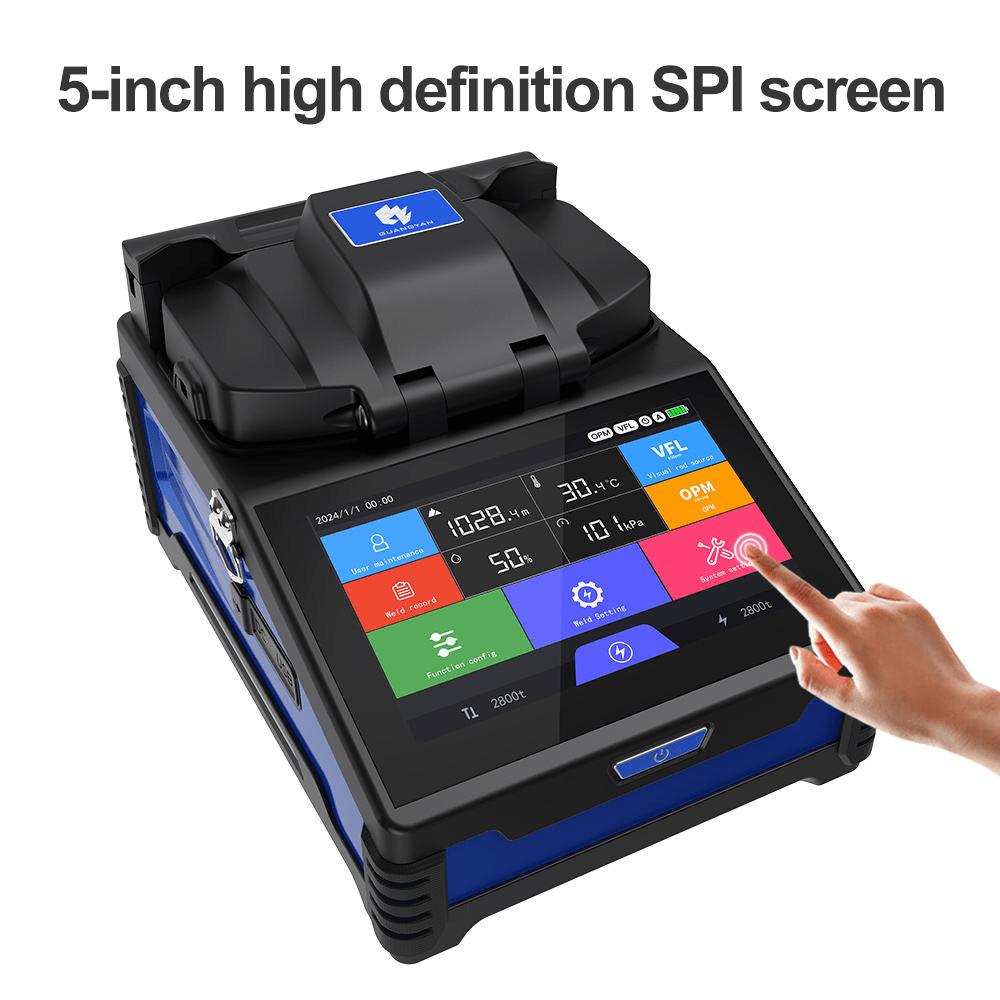

5-inch capacitive touchscreen with clear fiber imaging and intuitive GUI
-

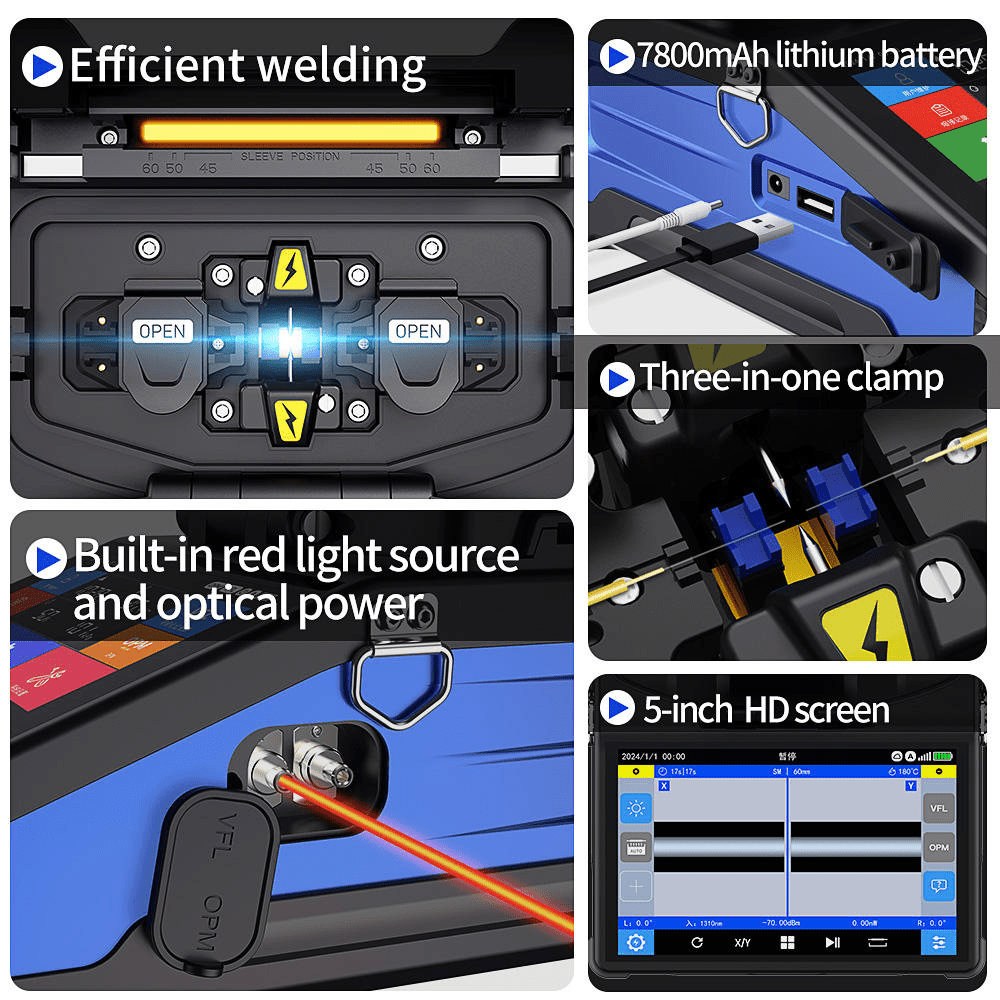

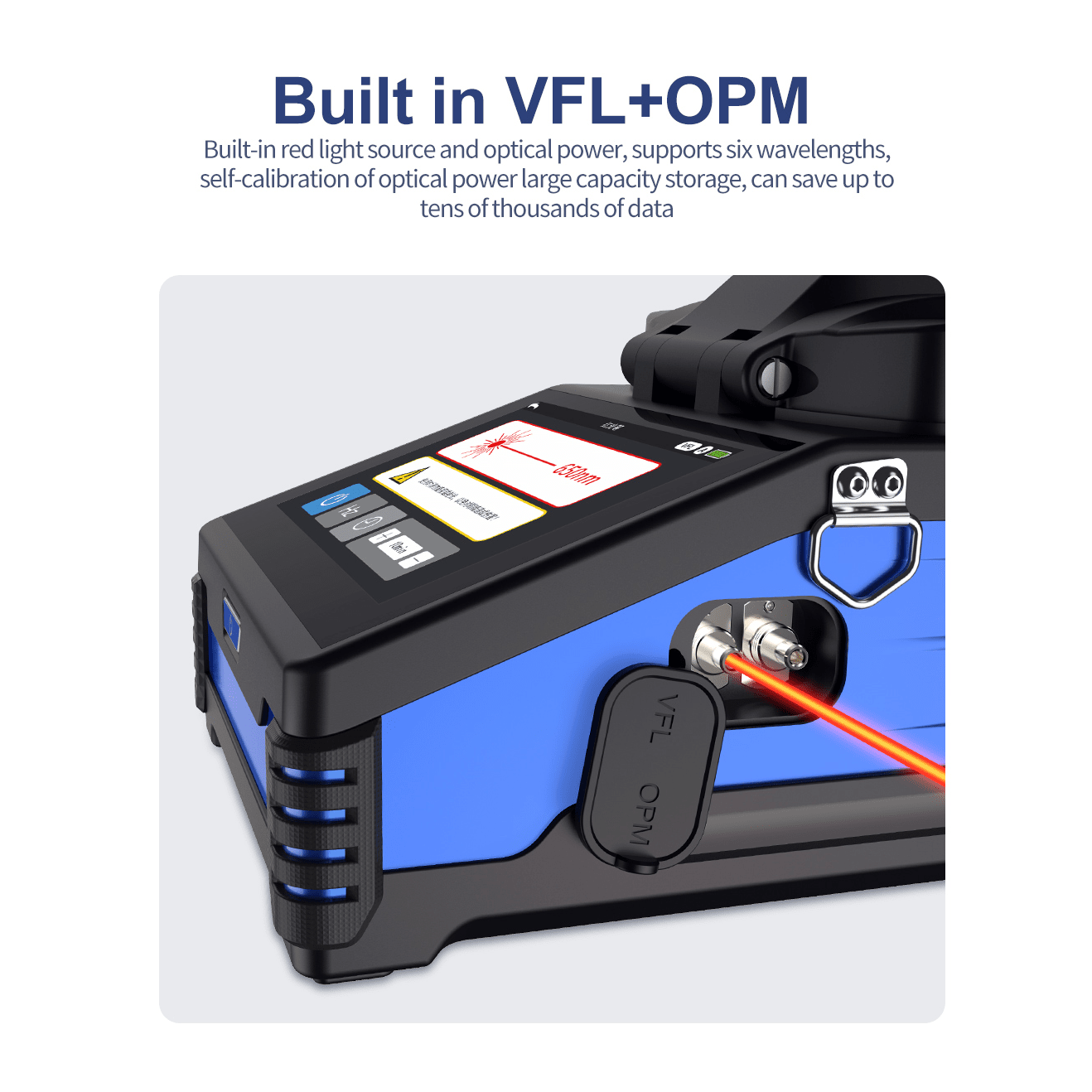

Built-in utilities (K3S): Optical Power Meter and Visual Fault Locator available in the unit for quick checks and documentation
-
High-capacity battery (K3S): approx. 7800 mAh; up to ~240 splice+heat cycles per charge
-
Smart protection heating: presets for 20/30/40/50/60 mm sleeves; adjustable temperature/time
-
Job memory: stores splice records and images for closeout packages
-
Rugged, field-ready chassis; rapid electrode replacement with on-device calibration
What’s Included (Typical Kit)
-

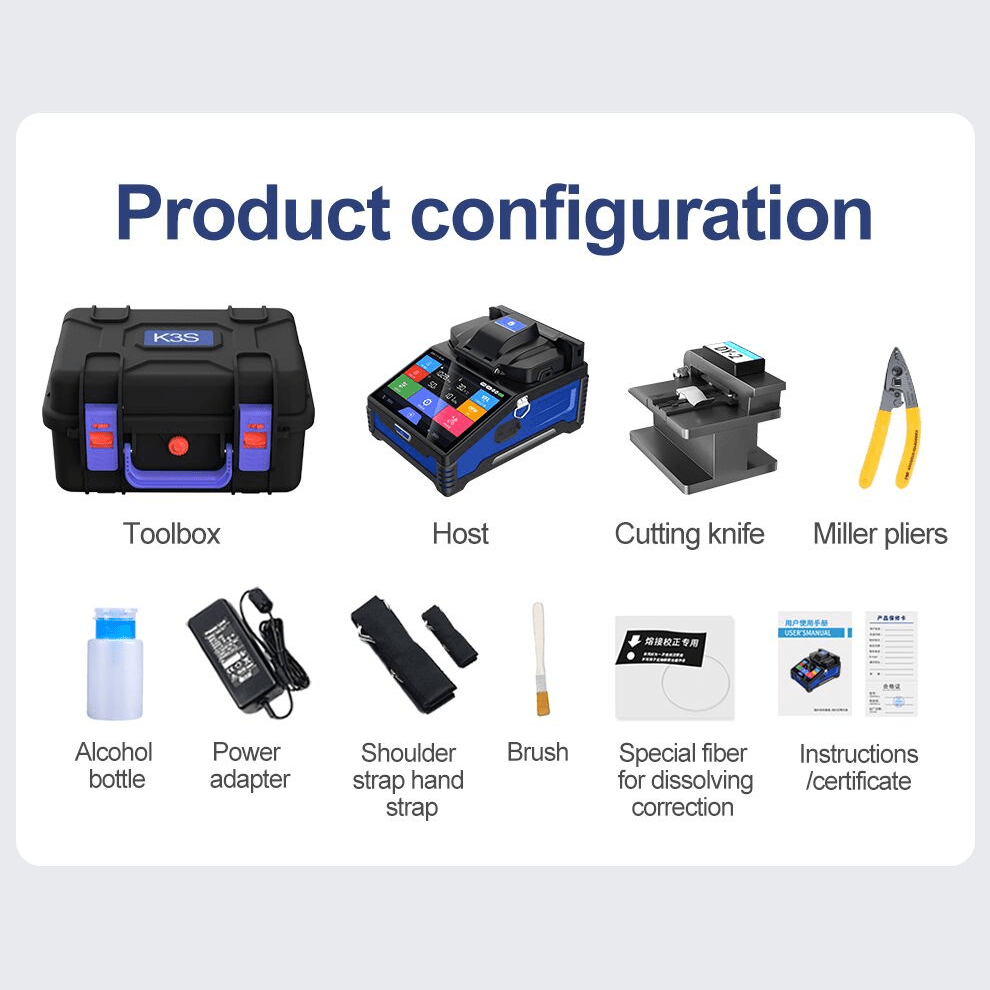

K3S fusion splicer main unit with 5-inch touchscreen
-
High-capacity Li-ion battery, AC adapter/charger
-

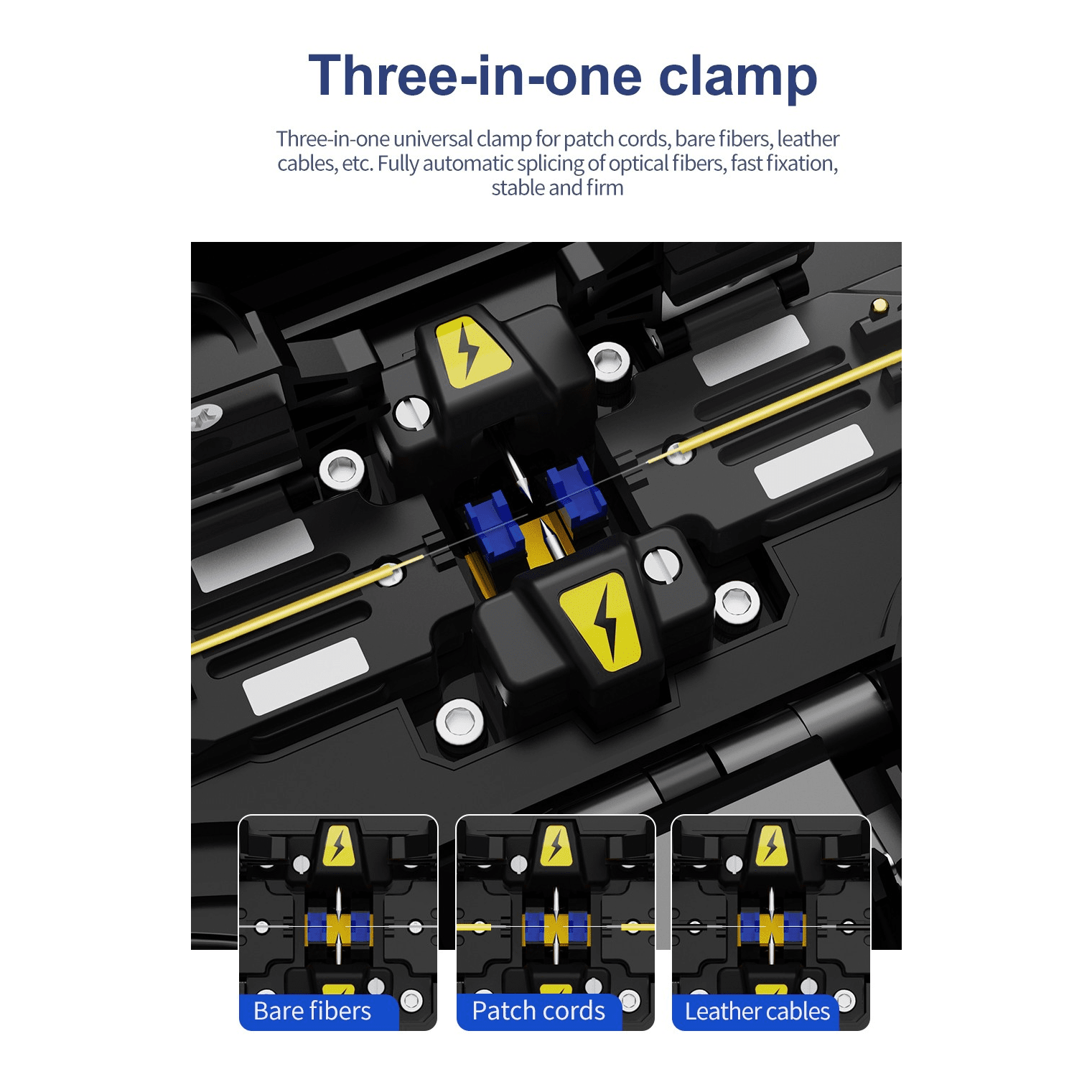

Precision fiber holders / clamps
-
Integrated heater with sleeve tray
-
Precision fiber cleaver, Miller clamp/strippers, alcohol bottle, brush
-
Calibration fiber, spare electrode rods (as supplied), shoulder straps
-
Hard carrying case, user manual, warranty card

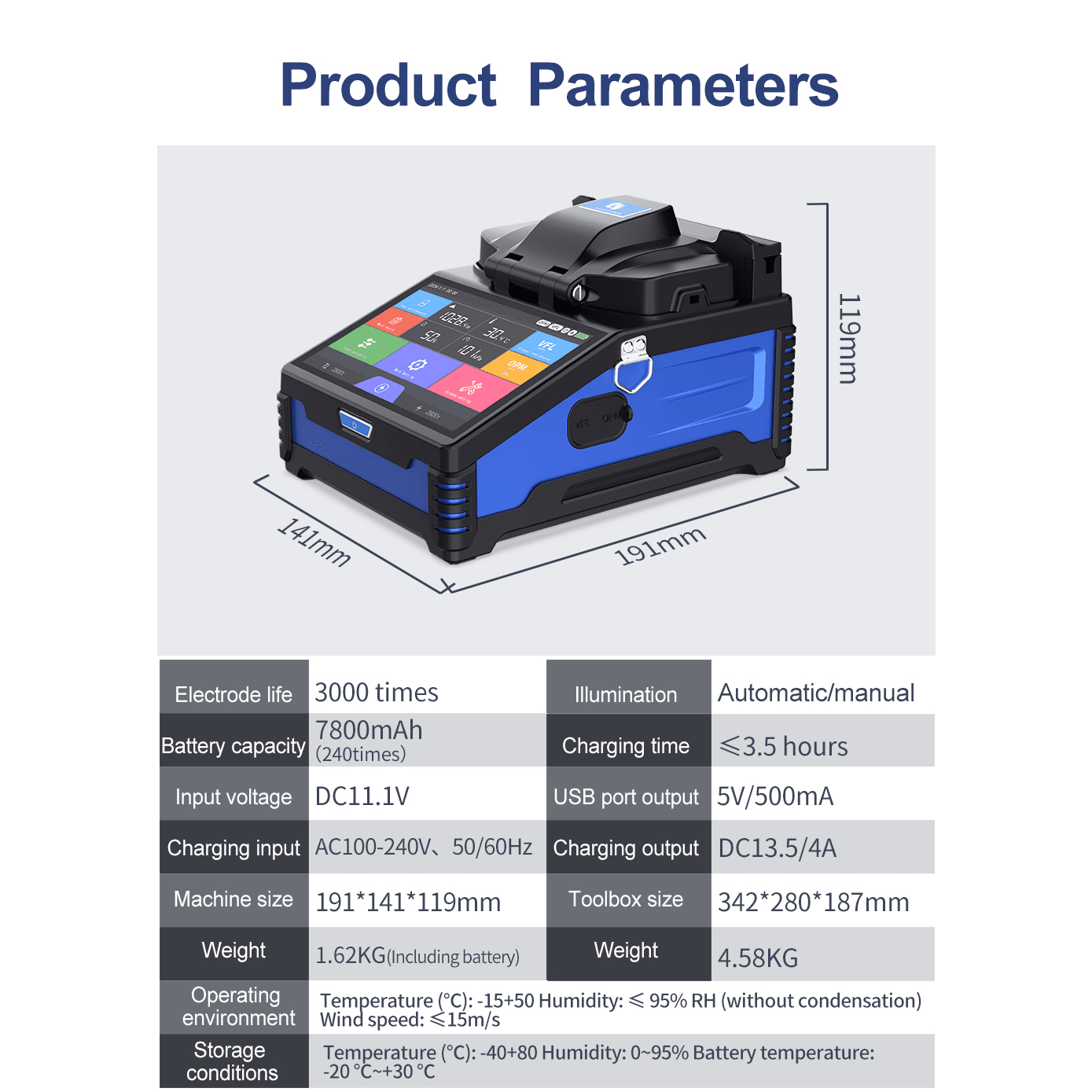

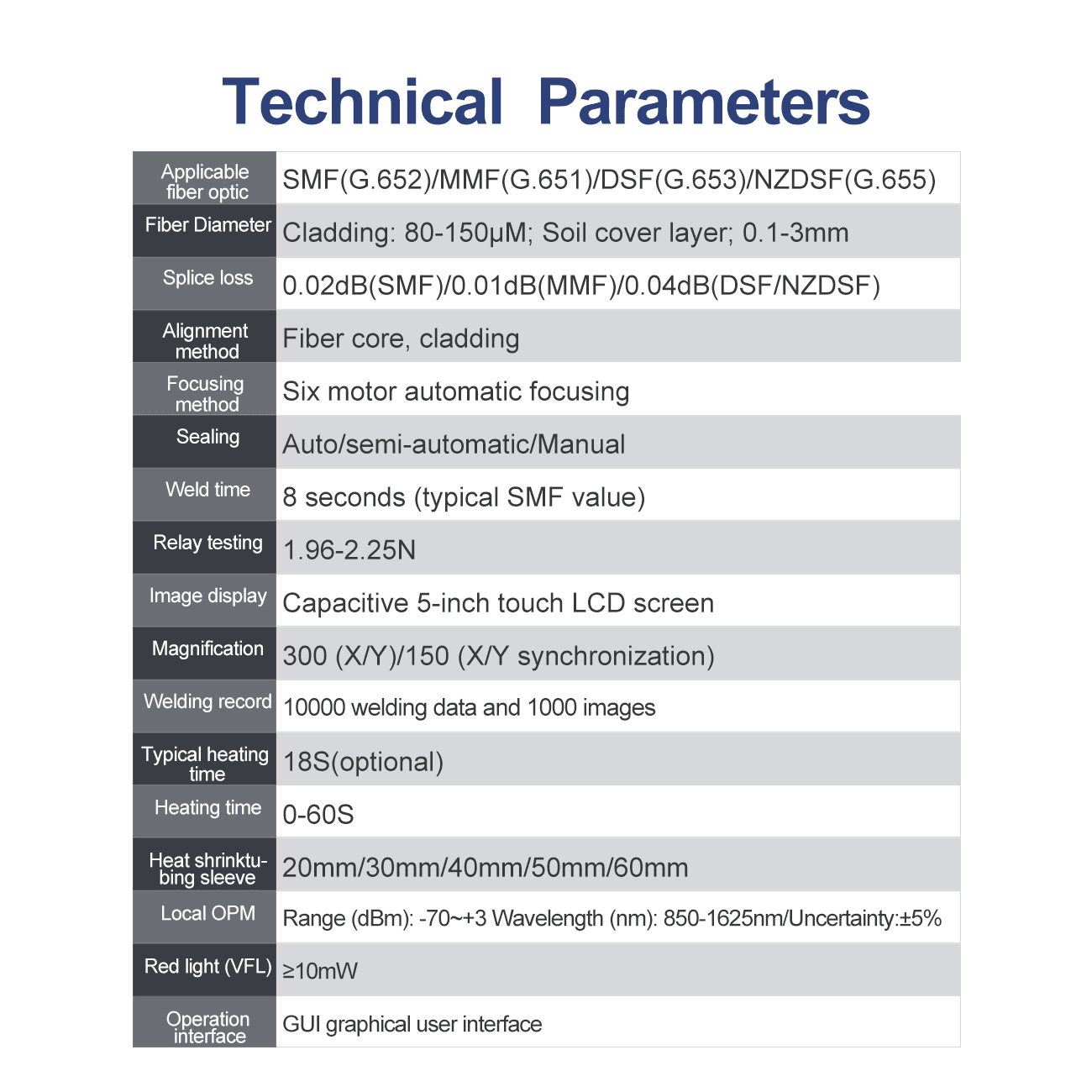

Specifications
-
Alignment method: Core alignment (also supports cladding alignment)
-
Motors / Focus: K3S six-motor autofocus
-
Typical splice time: ~8 s (SMF)
-
Typical heat time: ~18 s (sleeve-dependent, adjustable 0–60 s)
-
Supported fibers: SM (G.652), MM (G.651), DSF (G.653), NZDSF (G.655)
-
Fiber diameters: Cladding 80–150 μm; Coating 0.1–3 mm
-
Pull test: 1.96–2.25 N
-
Display / magnification: 5-inch touch LCD; up to 300× (X/Y)
-
Sleeve sizes: 20 / 30 / 40 / 50 / 60 mm
-
OPM (K3S): –70 to +6 dBm; wavelengths 850–1625 nm; dBm/dB/μW units; REF function; user offset calibration
-
VFL (K3S): ≥10 mW, continuous or flash with timer
-
Electrode life: ~3000 arcs; on-device electrode correction
-
Interfaces / updates: USB for upgrades; 5 V/500 mA USB out
-
Battery (K3S): ~7800 mAh; charge time ≤3.5 h; DC 11.1 V input
-
Operating conditions: –15 to +50 °C; ≤95% RH (non-condensing); altitude 0–5000 m; wind ≤15 m/s
-
Storage: –40 to +80 °C (battery –20 to +30 °C)
-
Size / weight: approx. 191 × 141 × 119 mm; ~1.62 kg (K3S)
How Installers Use It (Quick Workflow)
-
Prep: Strip, clean, and cleave both fibers; verify clean end-faces.
-
Load & align: Place fibers in the V-grooves; the K3S auto-focuses and core-aligns.
-
Splice & protect: Start splice (~8 s), then heat the sleeve (~18 s).
-
Verify: Use the built-in VFL for continuity and the OPM (with a stabilized light source) to confirm levels or set a reference.
-
Document: Save splice images/records for job closeout.
Installer Tips
-
For patch panels, splice factory-polished pigtails (LC/SC) to your field fiber for fast, consistent terminations.
-
Always set a reference when performing OPM loss tests (use a known-good short patch with a stabilized light source).
-
Use a launch cable with an OTDR to see the first connector; add a receive tail to see the last connector without moving to the far end.
-
Keep V-grooves, lenses, and electrodes clean; perform electrode correction if environment or altitude changes cause higher loss.
Example Use Case
A Phoenix contractor turns up new singlemode drops between buildings. After prepping and cleaving, they run automatic core-alignment splices on the K3S, apply 40 mm sleeves, and tray the splices. They confirm continuity with the VFL, establish an insertion-loss reference with OPM + light source, and finish with an OTDR test using a launch cable at the near end. Splice data and images from the K3S are stored for the closeout report.
Tri-Tek Electronics supports professional installers, hobbyists, and technicians across Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale. Visit our Mesa, AZ retail counter for hands-on demos, local stock, and factory-backed support.
