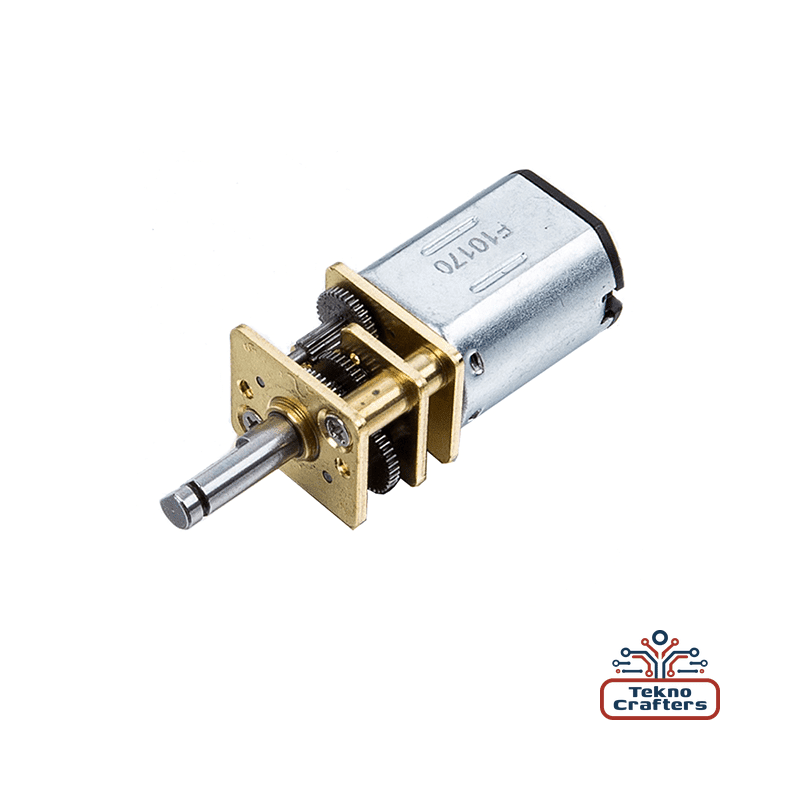

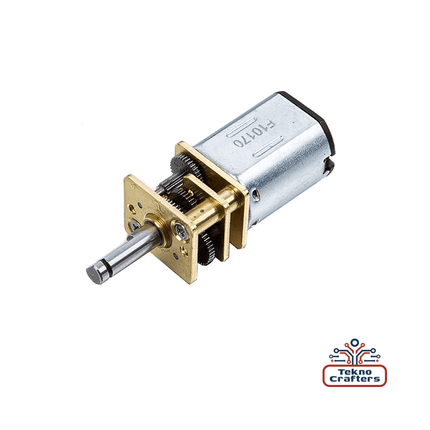

TeknoCrafters GA12-N20-30 6V 30:1 Gear Ratio DC Motor with 3 Gears
Tri-Tek Electronics is pleased to offer the TeknoCrafters GA12-N20-30, a high-performance miniature 6V brushed DC motor featuring a 30:1 gear ratio and robust metal gearbox. As an authorized distributor, we ensure full manufacturer warranty coverage, competitive pricing, and direct factory support for all TeknoCrafters products.
Product Features:
-
Model: GA12-N20-30
-
Rated Voltage: 6V DC
-
Gear Ratio: 30:1
-
No-Load Speed: 500 RPM
-
No-Load Current: 40 mA
-
Full-Load Speed: 375 RPM
-
Full-Load Current: 160 mA
-
Stall Current: 670 mA
-

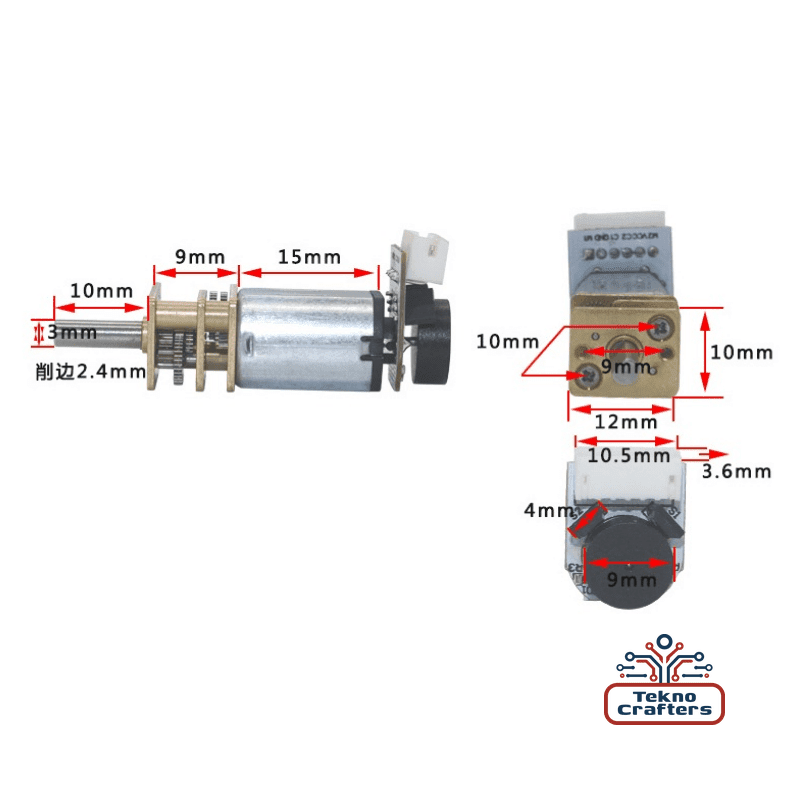

Dimensions: 10 × 12 mm cross-section
-
Output Shaft: D-shaped, 9 mm length, 3 mm diameter
-
Gear Material: Full metal construction
-
Weight: Approximately 10 grams
Product Description:
The TeknoCrafters GA12-N20-30 is engineered for applications requiring compact size, high torque, and reliable performance. Its 30:1 gear ratio delivers a no-load speed of 500 RPM, making it suitable for precise control in various devices. The motor's full metal gearbox ensures durability and longevity, even under demanding conditions. With a cross-section of 10 × 12 mm and a D-shaped output shaft measuring 9 mm in length and 3 mm in diameter, it is designed for seamless integration into tight spaces.
Installation Example:
In a robotics application, an installer can utilize the GA12-N20-30 motor to drive the wheels of a small autonomous vehicle. By connecting the motor to a suitable motor driver and mounting it securely within the chassis, the technician ensures efficient power transmission and precise movement control. The motor's compact size allows for flexible placement, and its high torque output facilitates smooth acceleration and maneuverability, enhancing the robot's operational capabilities.
Benefits for Installers and Technicians:
-
Compact Design: Facilitates easy integration into space-constrained applications.
-
High Torque Output: Ensures reliable performance in demanding tasks.
-
Durable Construction: Full metal gears provide extended service life and resistance to wear.
-
Versatile Applications: Ideal for robotics, automation systems, and precision instruments.
