Description

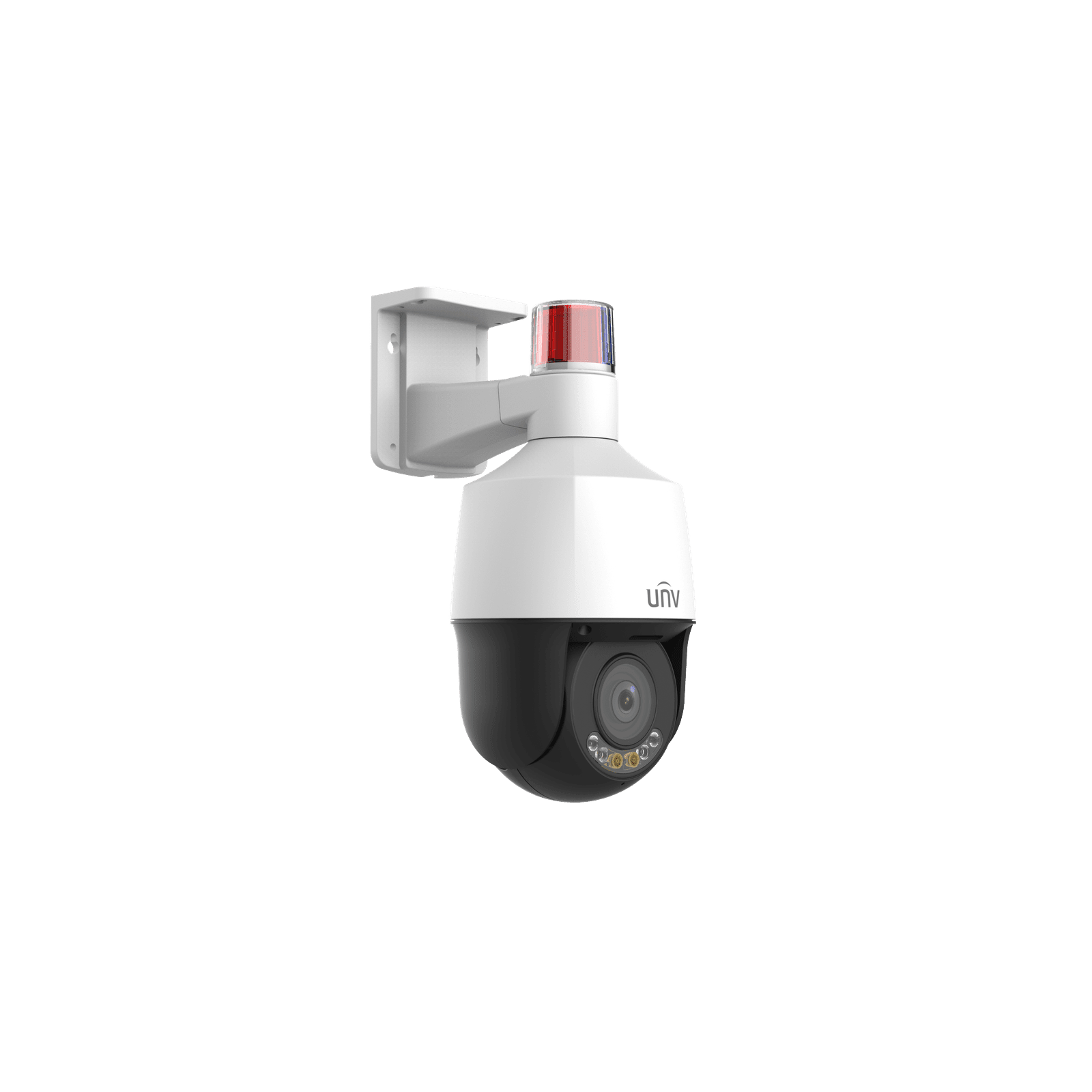

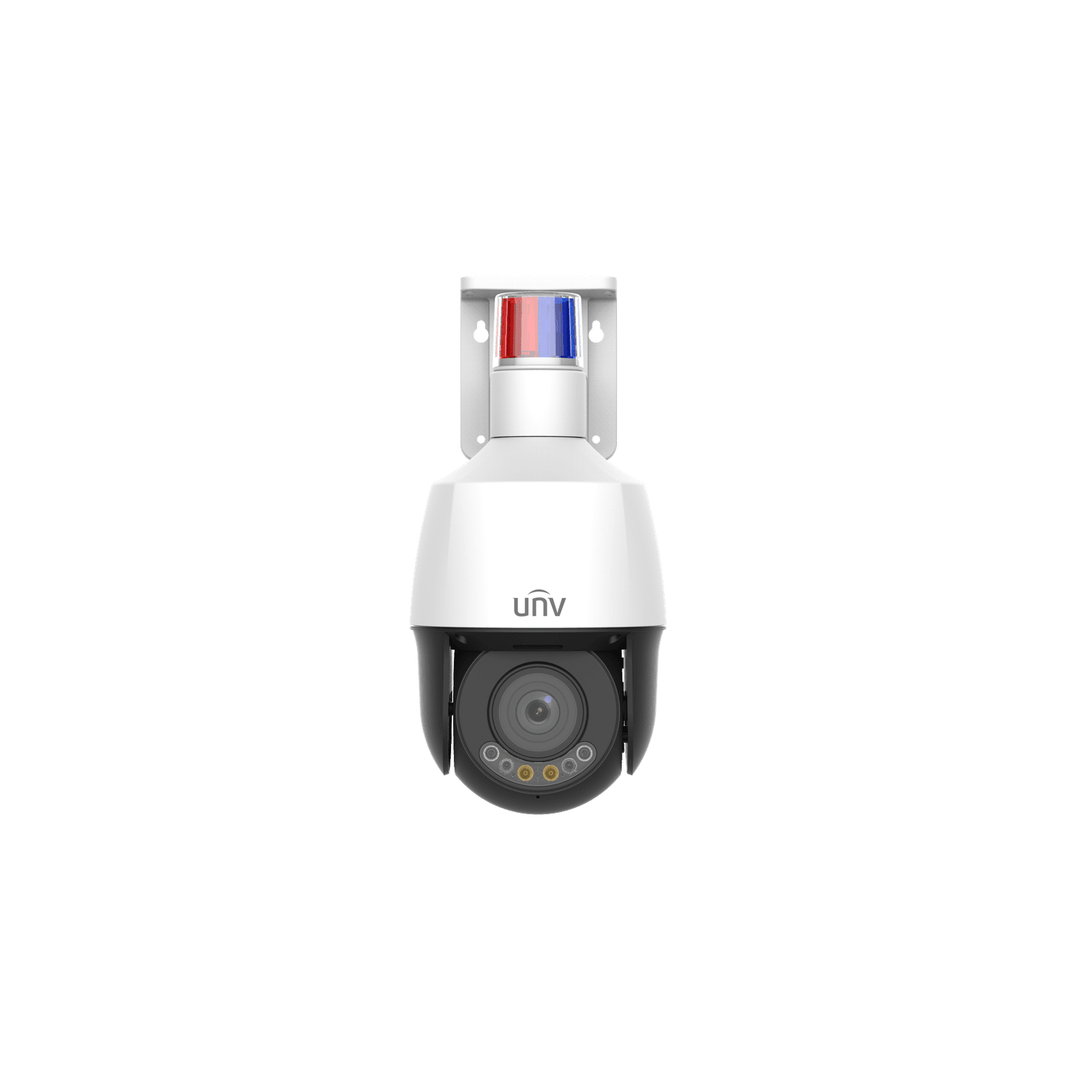

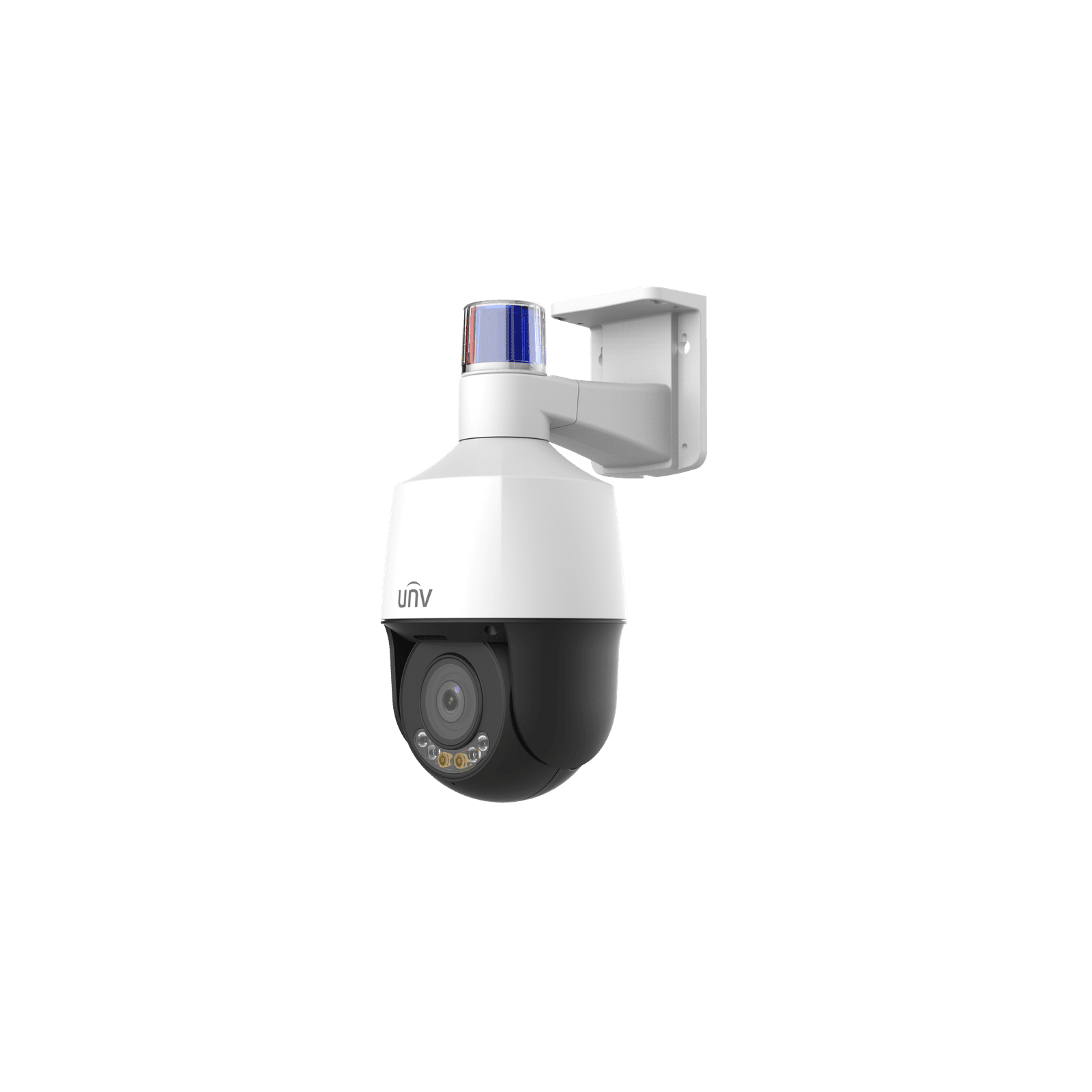

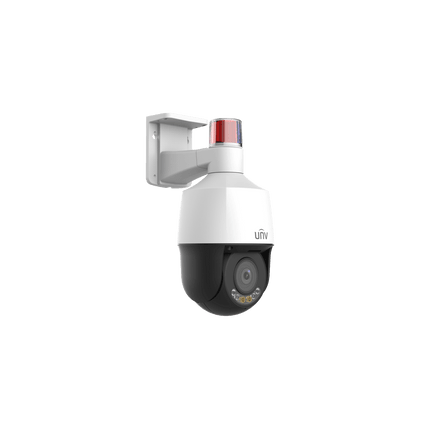

Uniview IPC6325LFW-AX5C-VG 5MP Active Deterrence Metal PTZ Camera (2.7-13.5mm, Audio & Alarm, Two-Way Audio, Starlight, Auto Tracking)
A powerful PTZ solution designed for demanding surveillance scenarios, the Uniview IPC6325LFW-AX5C-VG brings together ultra-high image quality, proactive deterrence, and intelligent tracking. With its 5-megapixel sensor, 5× optical zoom, dual-light illumination (warm light + IR), and robust audio/alarm features, this camera excels at identifying, tracking, and responding to threats day or night. Deep learning-based intrusion prevention minimizes false alarms, while the Active Deterrence lights, siren, microphone, and speaker allow it to warn intruders in real time. Its metal housing and IP66 protection make it built for outdoor performance in harsh conditions.
Whether you need to secure large perimeters, high-traffic entry points, or remote areas, this PTZ offers the flexibility, resilience, and intelligence installers and security professionals demand.
Key Features
-
5MP (2880×1620 @ 30fps) CMOS sensor with excellent low-light performance
-
5× motorized varifocal lens (2.7-13.5mm), wide to narrow field of view for flexible framing
-
Starlight technology for vivid color imaging in low light
-
Dual illumination: warm light up to 15 m (49 ft) + IR up to 50 m (164 ft)
-
Auto-Tracking keeps moving subjects centered and in focus
-
Smart intrusion prevention with human and vehicle classification
-
Two-way audio: built-in microphone and speaker with alarm I/O support
-
Triple video streams with Ultra-265, H.265, H.264, and MJPEG compression
-
Edge storage via microSD up to 512 GB
-
Rugged IP66 weather-rated metal housing, surge protection, and wide temperature tolerance
Technical Specifications
Specification |
Details |
Sensor |
1/2.8-inch CMOS |
Max Resolution |
5 MP (2880 × 1620) @ 30 fps |
Lens / Zoom |
2.7-13.5 mm motorized varifocal, 5× optical zoom |
Field of View (H/V/D) |
H: ~106.9°–30.6°, V: ~56°–17.7°, D: ~131.5°–36.1° |
Minimum Illumination |
0.005 Lux (color, F1.2, AGC ON); 0 Lux with IR |
WDR |
120 dB true WDR |
Dual Illumination |
Warm light: up to 15 m; IR: up to 50 m |
Audio / Alarm |
Built-in mic & speaker; audio input/output; alarm I/O 1/1 |
Auto Tracking |
Supports human target filtering |
Smart Features |
Intrusion detection, line crossing, enter/leave area, false alarm filtering, people counting |
Compression |
Ultra-265, H.265, H.264, MJPEG |
Streams |
Triple video streams, privacy mask, ROI, OSD |
Edge Storage |
microSD up to 512 GB |
Power |
12V DC or PoE (802.3at); ≈ 18 W |
Environmental Rating |
IP66; operating temperature -30°C to 60°C |
Surge Protection |
2 kV |
Dimensions & Weight |
185 × 133 × 286 mm; ≈ 1.32 kg |
Pan/Tilt / Presets |
Pan 0°–345°; Tilt -10° to 100°; 1024 presets with patrol support |
Installation & Use Case Example
This camera is ideal for monitoring expansive outdoor environments such as parking lots, warehouses, campuses, and perimeters. For example, when mounted on a pole at a facility entrance, the wide-angle lens covers general traffic flow, while the 5× zoom captures detailed facial or license plate information. At night, the dual light system ensures both color and IR visibility, while auto-tracking and the built-in siren can deter trespassers instantly. Its durable metal body and IP66 rating make it reliable even in Arizona’s extreme weather conditions.
Why Buy From Tri-Tek Electronics?
Tri-Tek Electronics is an authorized distributor for Uniview. Buying this model from us guarantees full manufacturer warranty, authentic components, best pricing, and access to factory-trained technical support. We maintain local stock in Mesa, AZ, and serve Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and surrounding areas with fast fulfillment and expert service.
