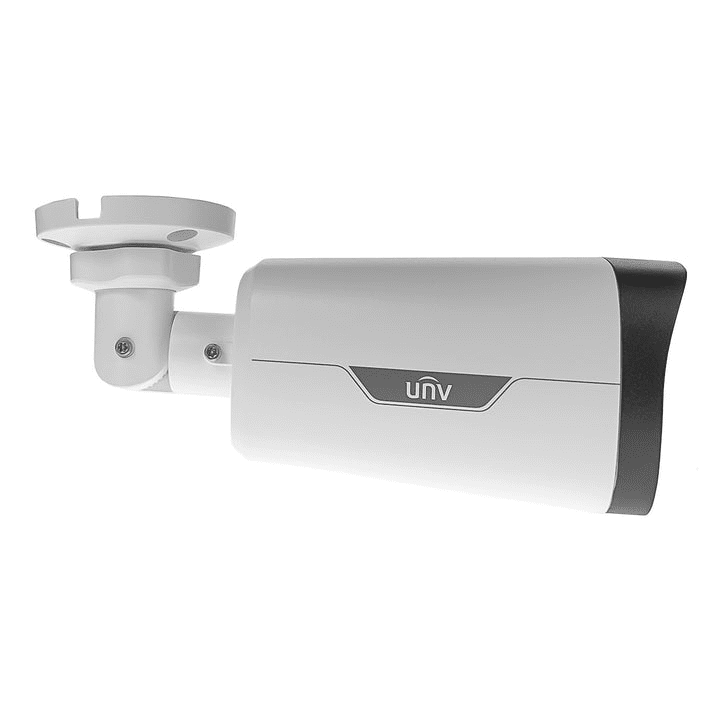

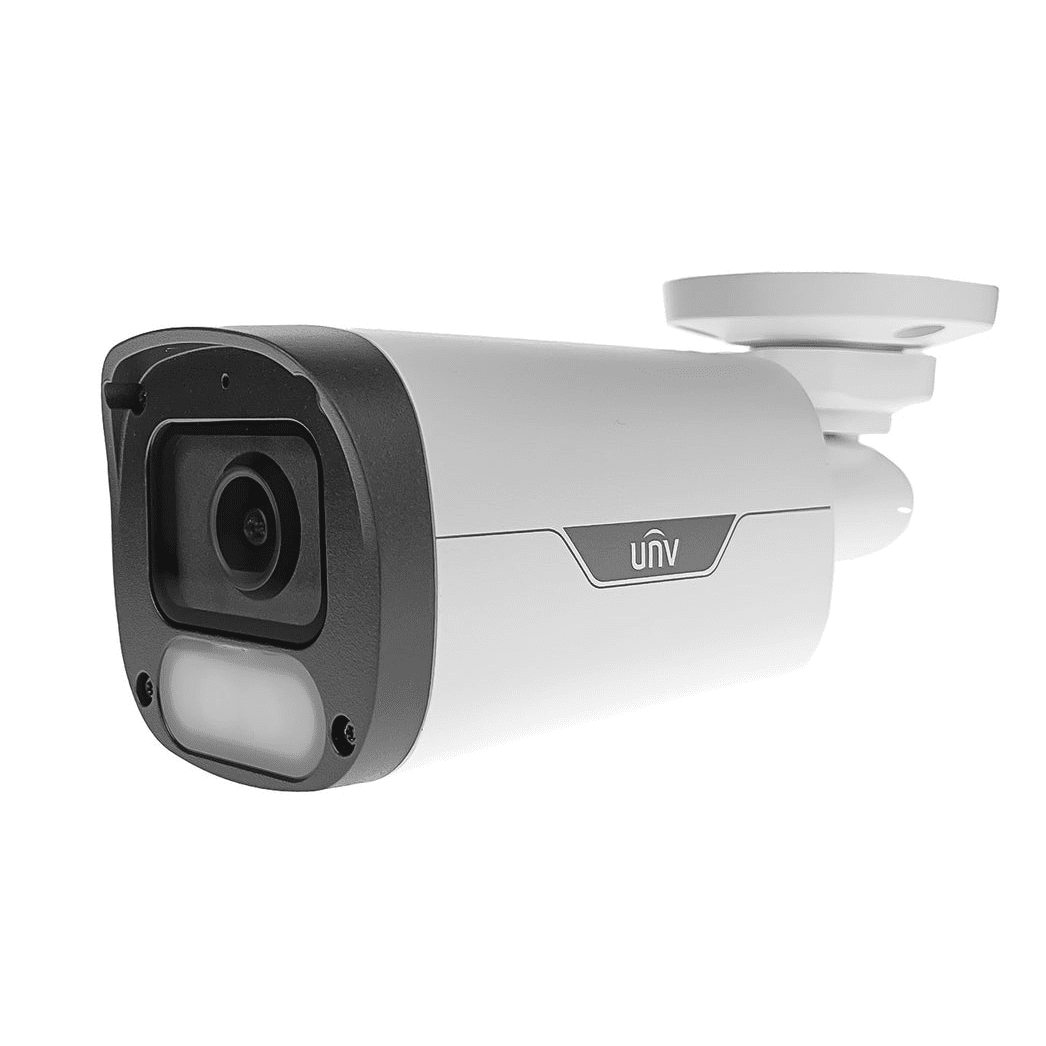

Uniview IPC2314SR-ADF28KM-WP 4MP Owlview Wise-ISP Fixed Bullet IP Camera (2.8mm)
Experience next-level surveillance clarity with the Uniview IPC2314SR-ADF28KM-WP, part of the advanced OwlView camera line. Designed to deliver exceptional image quality in all lighting conditions, this 4MP fixed bullet IP camera features Uniview’s proprietary Wise-ISP technology, which enhances low-light visibility, optimizes dynamic range, and minimizes image distortion. Combined with a built-in microphone, smart human detection, and wide-angle viewing, this camera is engineered for intelligent, efficient monitoring across a wide variety of commercial and residential applications.
Whether securing a perimeter, monitoring parking lots, or enhancing security around entry points, the IPC2314SR-ADF28KM-WP provides installers with unmatched versatility and performance. Its 2.8mm lens delivers a 103° horizontal field of view, allowing broad coverage with a single device. With true WDR (120dB), smart IR illumination up to 98 feet, and ONVIF compatibility, this camera integrates seamlessly into existing surveillance systems while elevating image quality and event detection accuracy.
Key Features
-
4MP High-Resolution CMOS Sensor (2688x1520 @ 30fps)
-
Uniview OwlView Series with Wise-ISP for Enhanced Image Processing
-
2.8mm Fixed Lens Providing 103° Horizontal Field of View
-
Up to 98 Feet of Smart IR Night Vision
-
Smart Detection: Human Body, Intrusion, and Line Crossing
-
Built-In Microphone for High-Quality One-Way Audio
-
Rugged IP67 Weatherproof Rating for Outdoor Environments
-
H.265, H.264, and MJPEG Compression for Efficient Bandwidth Use
-
MicroSD Card Slot Supports up to 256GB Local Storage
-
Power Options: 12V DC or PoE (802.3af)
-
Fully ONVIF Compliant for Easy Integration
Technical Specifications
| Feature |
Specification |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max Resolution |
2688 x 1520 (4MP) |
| Lens |
2.8mm Fixed Lens |
| Field of View |
H: 103°, V: 55°, D: 123° |
| IR Range |
Up to 98 feet (30 meters) |
| WDR |
120dB True WDR |
| Audio |
Built-in Microphone |
| Network Protocols |
ONVIF, RTSP, HTTP, HTTPS, etc. |
| Storage |
MicroSD Card Slot (Max 256GB) |
| Power Supply |
12V DC or PoE (802.3af) |
| Power Consumption |
< 7.5W |
| Operating Temp |
-22°F to 140°F (-30°C to 60°C) |
| Ingress Protection |
IP67 |
| Dimensions |
6.2” x 2.4” x 2.5” (L×W×H) |
Installation Scenario
A popular use case for this camera is mounting it at the exterior corner of a commercial facility or residential property to oversee wide-open areas like alleys, lots, or access gates. With OwlView’s advanced ISP and wide-angle lens, it provides reliable detail capture even in low-light environments, making it a favorite among professional installers.
