4MP 16× LightHunter IR Network Dome PTZ Camera

Description

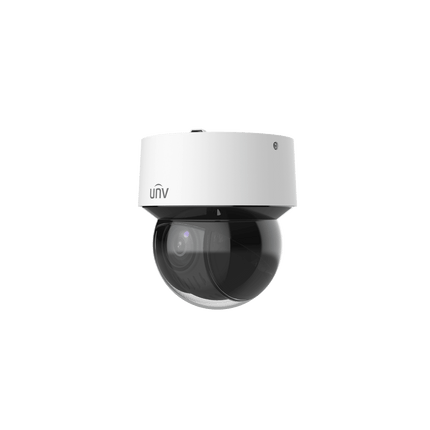

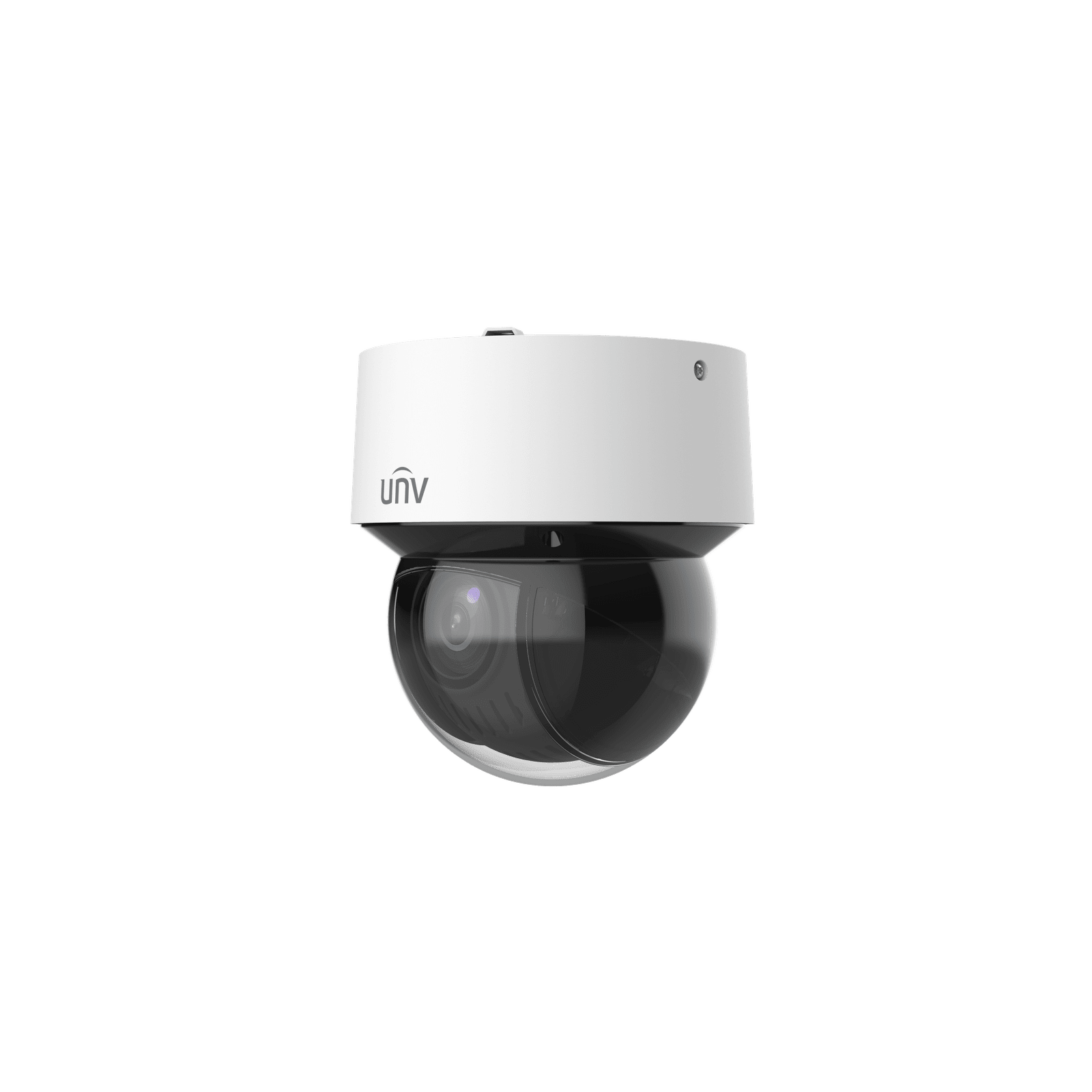

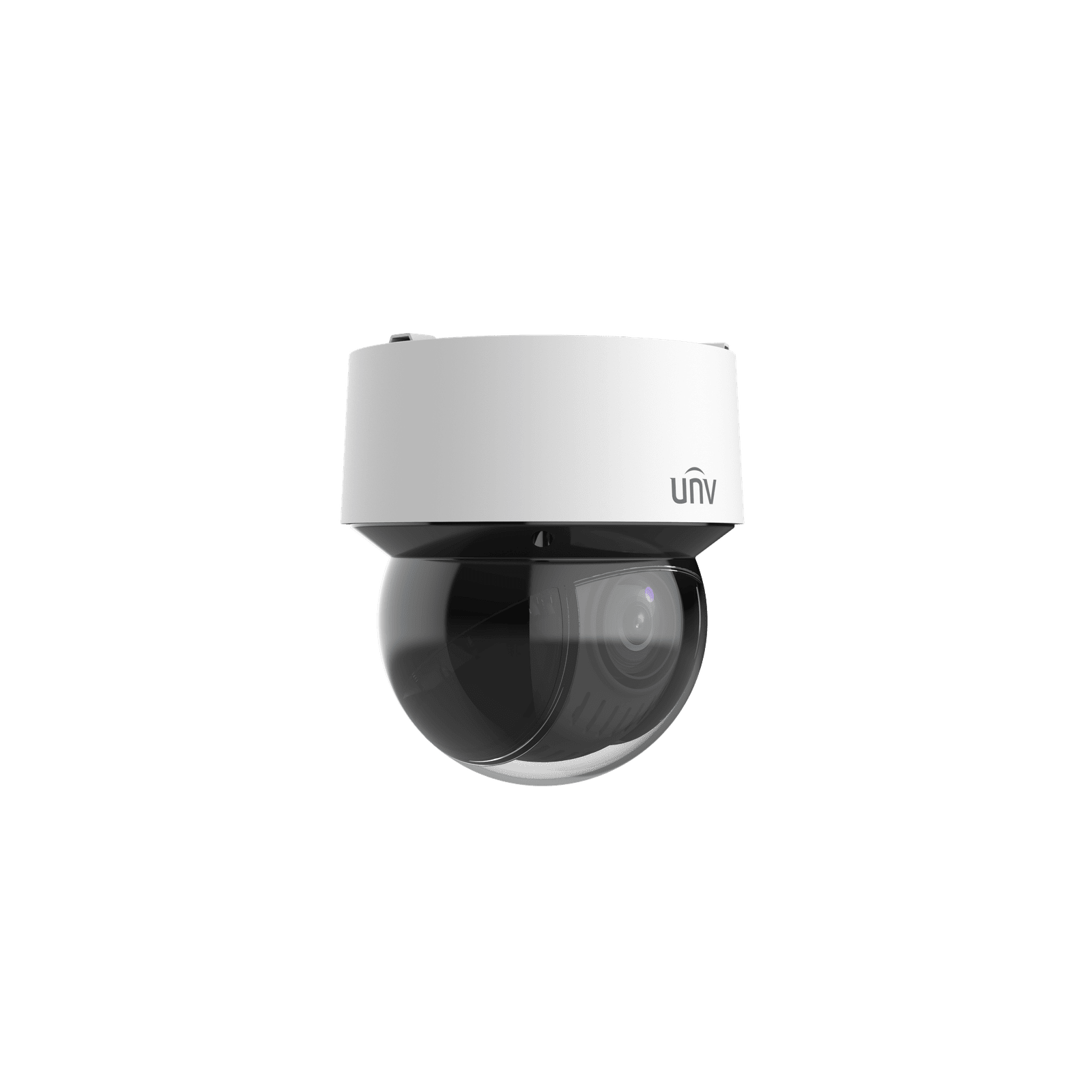

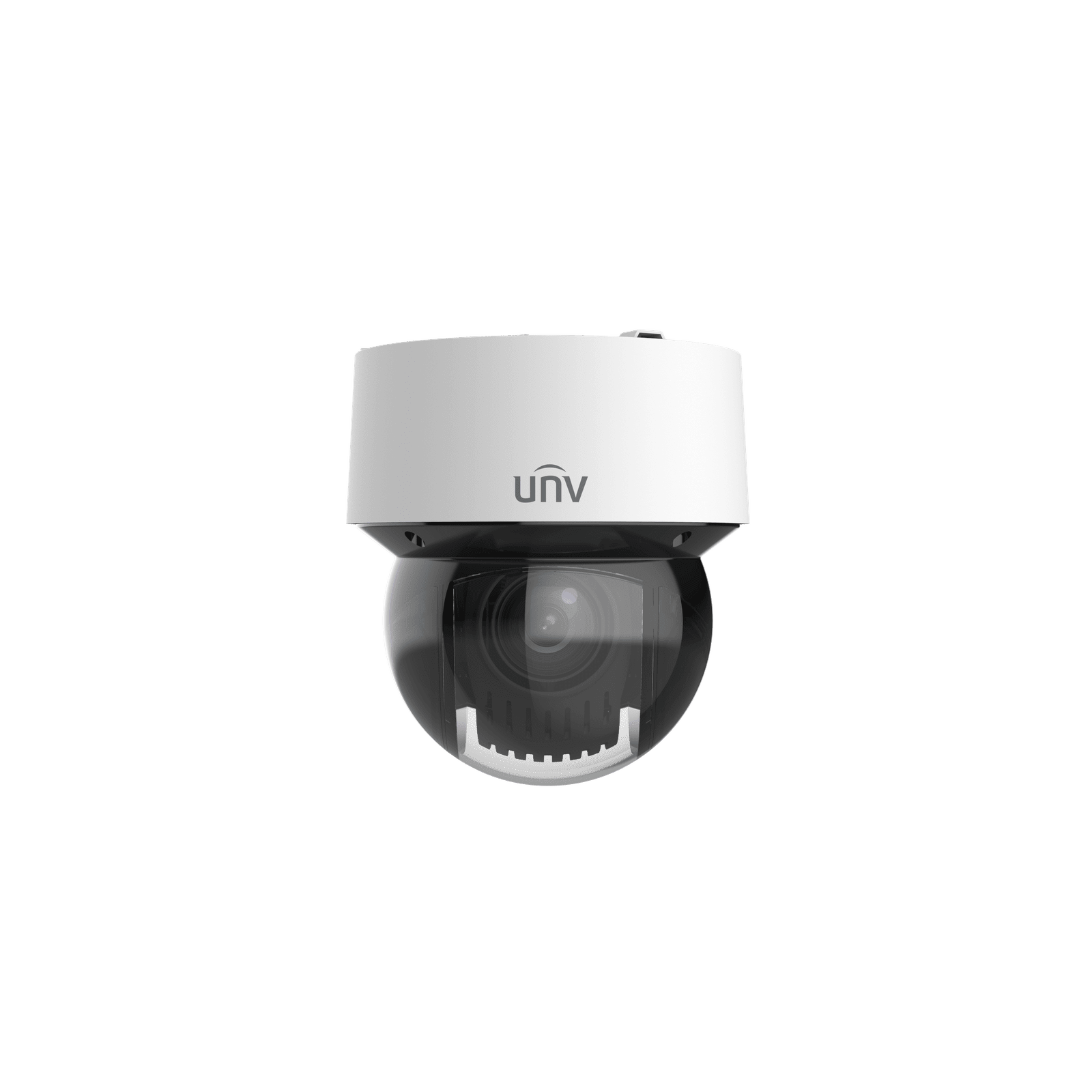

Uniview IPC6434LR-X16-VG1 4MP 16× LightHunter IR Network Dome PTZ Camera

This high-performance PTZ camera delivers a robust combination of long-range optical zoom, excellent low-light imaging, and weather- and vandal-resistant housing—ideal for demanding surveillance sites. With 16× optical zoom, LightHunter illumination, Smart IR, dual streams, and advanced detection features, it lets you monitor large areas in detail while maintaining excellent image quality at night.

Perfect for perimeter monitoring, parking lots, campus grounds, or other outdoor locations where visibility over distance is critical.


Key Features

  • 4MP resolution (2688×1520) at up to 30 fps

  • LightHunter low-illumination technology for color imaging in dim conditions

  • 16× optical zoom via motorized varifocal lens (5.5-88 mm)

  • Smart IR with up to 100 m (328 ft) night-vision capability

  • Dual video streams, support for Ultra-265, H.265, H.264, MJPEG video compression

  • Wide Dynamic Range (120 dB), S/N ratio > 56 dB

  • 2 alarm inputs / 1 alarm output; 1 audio input / 1 audio output (two-way audio support)

  • IP66 ingress protection; IK10 vandal resistance


Technical Specifications

Specification Detail
Sensor 1/2.9-inch CMOS
Minimum Illumination Color: ~0.005 Lux (F1.78, AGC ON); 0 Lux with IR on
Lens / Zoom Motorized varifocal 5.5-88 mm, 16× optical zoom
Field of View (H/V/Diagonal) H: ~50.85° → ~3.47°; V: ~29.94° → ~1.95°; D: ~62.55° → ~4.09°
IR / Night Features Smart IR, up to 100 m IR range; IR On/Off control; 850 nm wavelength
Video Streams & Compression Dual streams; Ultra-265, H.265, H.264, MJPEG
Privacy Mask / OSD Up to 24 privacy mask areas (4 per scene); up to 4 OSD displays
Smart Detection Auto-tracking (with human/vehicle filtering); intrusion / cross-line detection; false alarm filtering
PTZ Movement & Presets Pan: 360° endless; Tilt: −5° to +90° (auto-flip); Presets up to 1024; patrol / route control
Environmental / Housing Rated IP66; IK10 vandal-resistant; operating temp −40°C to +65°C
Power Options / Consumption DC 12V (±10%) or PoE+ (IEEE 802.3at); Max power draw approx 23 W
Storage Supports microSD card (up to 256 GB)
Other Features Digital defog; 2D/3D noise reduction; surge protection (6 kV)

Use-Case Example

Mount this PTZ dome on a tall pole overlooking a large parking lot or campus entryway. During daytime, you’ll get clear, wide-area coverage. At dusk and night, the LightHunter sensor with Smart IR lets you monitor clearly even in very low light, while the 16× zoom allows for detailed inspections of faces, signs, or license plates. With auto-tracking and smart detection, you can program responses such as alerts or recordings only when humans or vehicles are detected, reducing false alarms.


Why Buy From Tri-Tek Electronics?

Tri-Tek Electronics is an authorized distributor of Uniview. Buying this model from us ensures you receive genuine parts, full manufacturer warranty, factory technical support, and competitive local pricing. We stock units in Mesa, AZ, and provide service and installation advice throughout Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and the surrounding areas.

Product form

Uniview IPC6434LR-X16-VG1 4MP 16× LightHunter IR Network Dome PTZ Camera This high-performance PTZ camera delivers a robust combination of long-range... Read more

Free local pickup in our store

SKU: UNVIPC6434LR-X16-VG1

$1,329.00 $1,069.00

    • Shipped today? Order within: Oct 02, 2025 14:00:00 -0700

    Description

    Uniview IPC6434LR-X16-VG1 4MP 16× LightHunter IR Network Dome PTZ Camera

    This high-performance PTZ camera delivers a robust combination of long-range optical zoom, excellent low-light imaging, and weather- and vandal-resistant housing—ideal for demanding surveillance sites. With 16× optical zoom, LightHunter illumination, Smart IR, dual streams, and advanced detection features, it lets you monitor large areas in detail while maintaining excellent image quality at night.

    Perfect for perimeter monitoring, parking lots, campus grounds, or other outdoor locations where visibility over distance is critical.


    Key Features

    • 4MP resolution (2688×1520) at up to 30 fps

    • LightHunter low-illumination technology for color imaging in dim conditions

    • 16× optical zoom via motorized varifocal lens (5.5-88 mm)

    • Smart IR with up to 100 m (328 ft) night-vision capability

    • Dual video streams, support for Ultra-265, H.265, H.264, MJPEG video compression

    • Wide Dynamic Range (120 dB), S/N ratio > 56 dB

    • 2 alarm inputs / 1 alarm output; 1 audio input / 1 audio output (two-way audio support)

    • IP66 ingress protection; IK10 vandal resistance


    Technical Specifications

    Specification Detail
    Sensor 1/2.9-inch CMOS
    Minimum Illumination Color: ~0.005 Lux (F1.78, AGC ON); 0 Lux with IR on
    Lens / Zoom Motorized varifocal 5.5-88 mm, 16× optical zoom
    Field of View (H/V/Diagonal) H: ~50.85° → ~3.47°; V: ~29.94° → ~1.95°; D: ~62.55° → ~4.09°
    IR / Night Features Smart IR, up to 100 m IR range; IR On/Off control; 850 nm wavelength
    Video Streams & Compression Dual streams; Ultra-265, H.265, H.264, MJPEG
    Privacy Mask / OSD Up to 24 privacy mask areas (4 per scene); up to 4 OSD displays
    Smart Detection Auto-tracking (with human/vehicle filtering); intrusion / cross-line detection; false alarm filtering
    PTZ Movement & Presets Pan: 360° endless; Tilt: −5° to +90° (auto-flip); Presets up to 1024; patrol / route control
    Environmental / Housing Rated IP66; IK10 vandal-resistant; operating temp −40°C to +65°C
    Power Options / Consumption DC 12V (±10%) or PoE+ (IEEE 802.3at); Max power draw approx 23 W
    Storage Supports microSD card (up to 256 GB)
    Other Features Digital defog; 2D/3D noise reduction; surge protection (6 kV)

    Use-Case Example

    Mount this PTZ dome on a tall pole overlooking a large parking lot or campus entryway. During daytime, you’ll get clear, wide-area coverage. At dusk and night, the LightHunter sensor with Smart IR lets you monitor clearly even in very low light, while the 16× zoom allows for detailed inspections of faces, signs, or license plates. With auto-tracking and smart detection, you can program responses such as alerts or recordings only when humans or vehicles are detected, reducing false alarms.


    Why Buy From Tri-Tek Electronics?

    Tri-Tek Electronics is an authorized distributor of Uniview. Buying this model from us ensures you receive genuine parts, full manufacturer warranty, factory technical support, and competitive local pricing. We stock units in Mesa, AZ, and provide service and installation advice throughout Phoenix, Tempe, Chandler, Gilbert, Scottsdale, Glendale, and the surrounding areas.
