Description

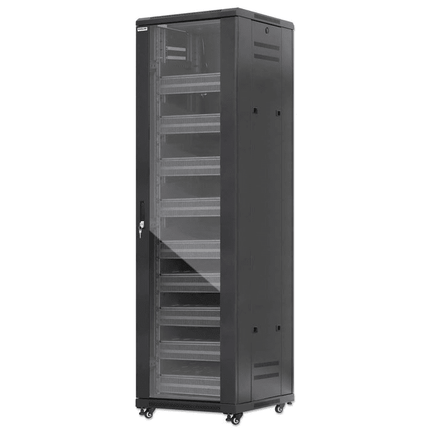

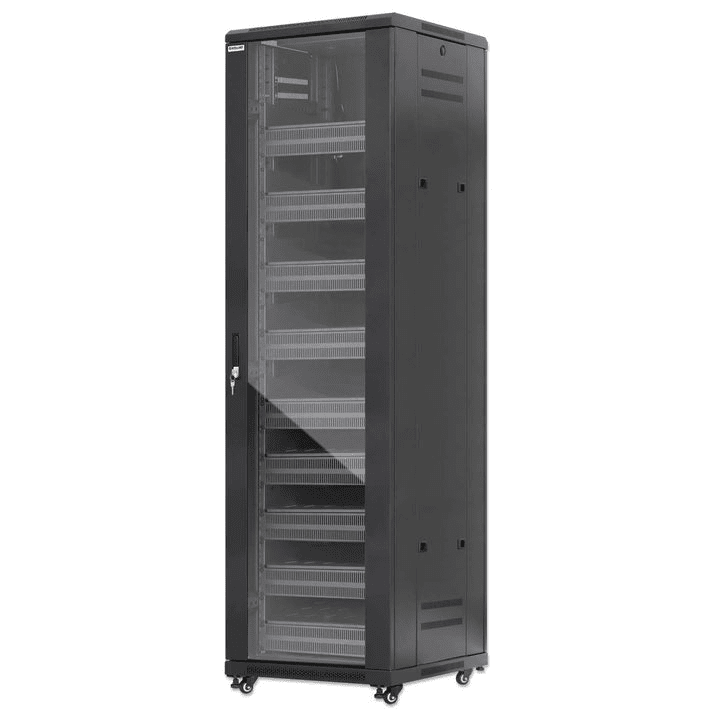

Intellinet 716253 Pro Line Network Cabinet with Integrated Fans – 42U
The Intellinet 716253 Pro Line Network Cabinet (42U) is a premium, floor‑standing rack enclosure built for professional network, server, telecom, and AV setups. This cabinet ships fully assembled and is finished in sleek black (RAL 9004), making it ideal for fast, secure deployment in demanding IT environments. Integrated dual fans with thermostat control ensure effective internal cooling for high-density equipment installations.
Tri‑Tek Electronics, based in Mesa, AZ, is an authorized distributor offering this cabinet with full manufacturer warranty, factory support, and best pricing. We proudly serve installers, hobbyists, and technicians throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Glendale, and surrounding Arizona areas.
Key Features
-
Fully assembled 42‑U floor‑standing cabinet
-
External dimensions: 23.62″ (600 mm) width × 23.62″ (600 mm) depth × 78.11″ (1,984 mm) height
-

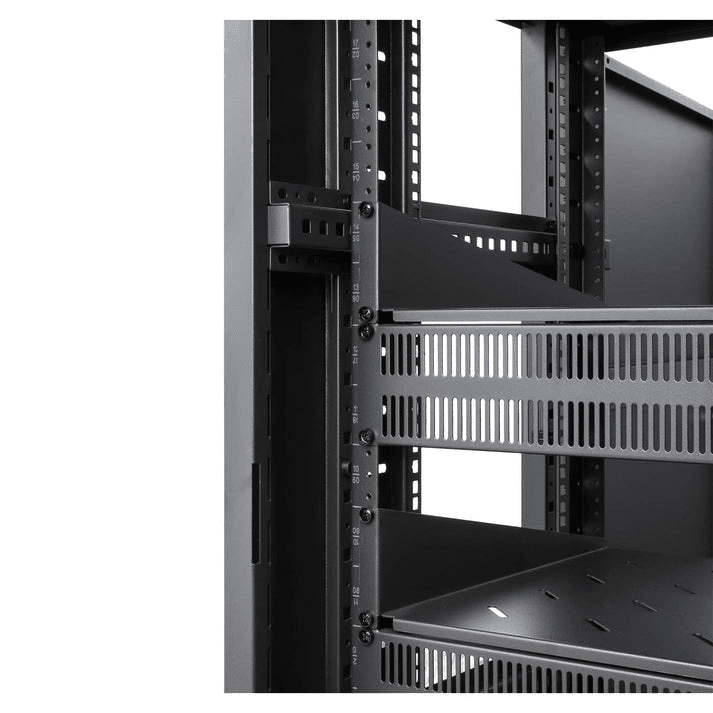

Adjustable mounting depth: 5.91″ to 19.69″ (150 mm to 500 mm)
-
Static load capacity: up to 1,760 lbs (800 kg)
-
Load capacity on casters: approximately 700 lbs (320 kg)
-

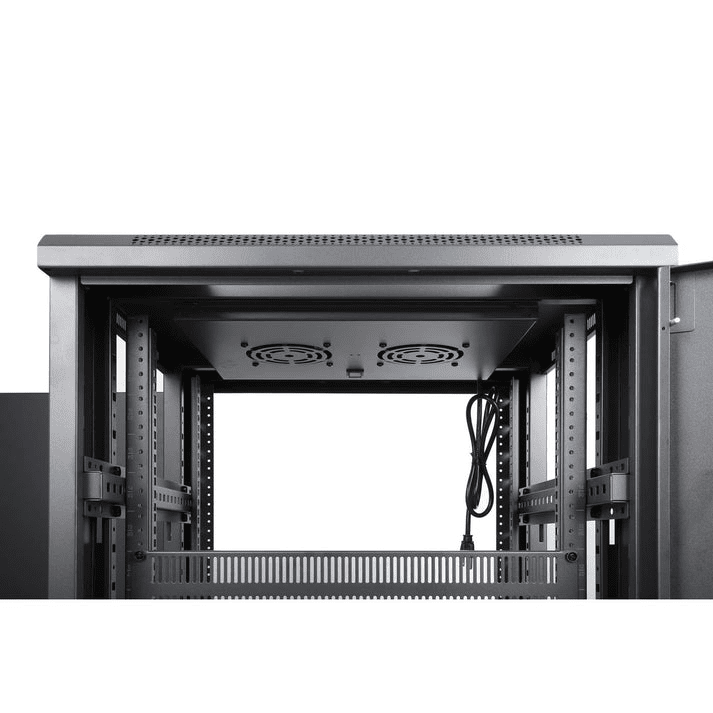

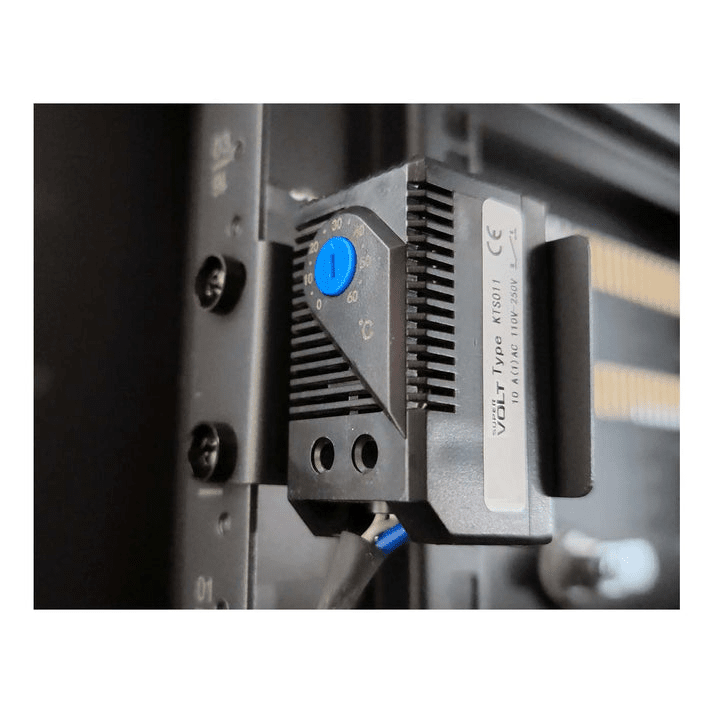

Dual roof-mounted fans with thermostat; each fan rated at ~86 cfm (146 m³/h)
-
Operating temperature: 32 °F to 140 °F (0 °C to 60 °C)
-
Constructed of cold-rolled SPCC steel with antistatic powder coating
-
Finish: black (RAL 9004)
-

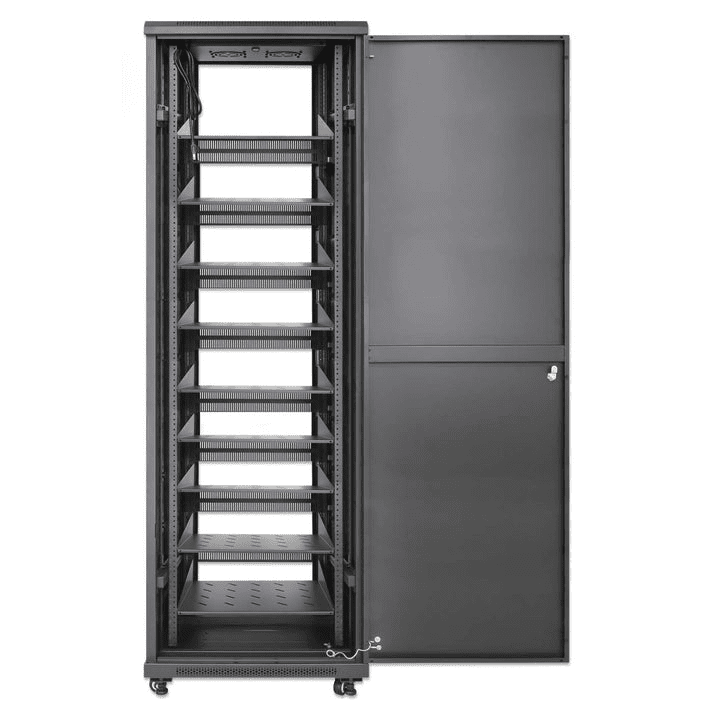

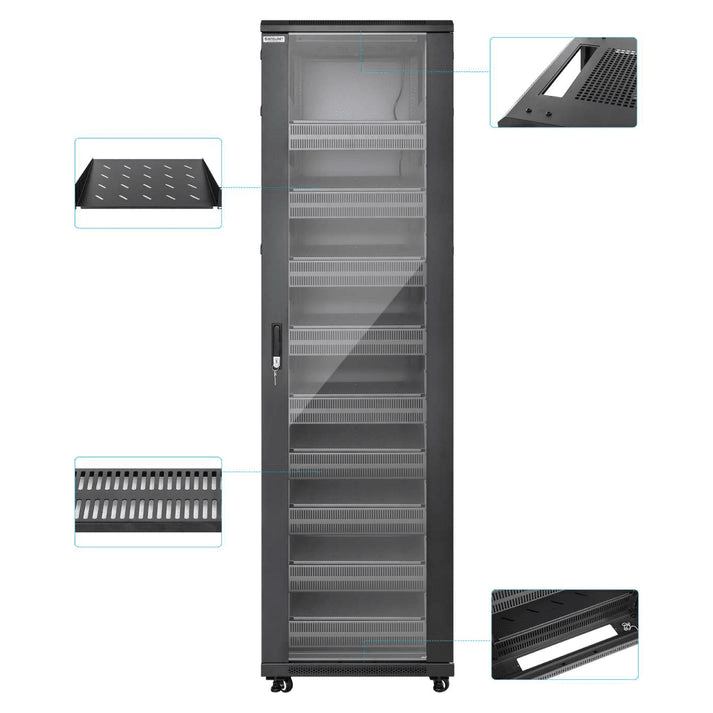

Includes: nine vented 2U shelves (15″ deep), nine vented 2U blank panels
-

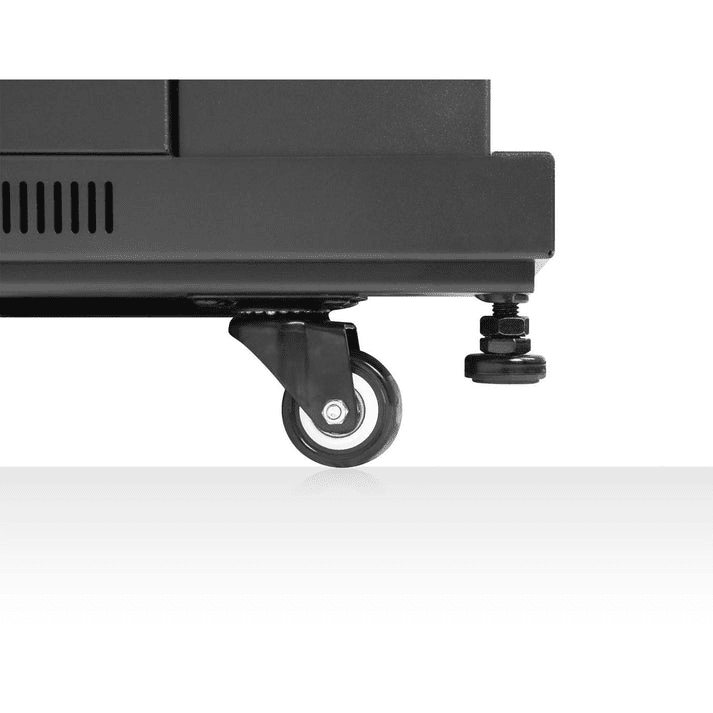

Also includes: 40 #10‑32 screws, four heavy-duty casters, four leveling feet, grounding kit
-

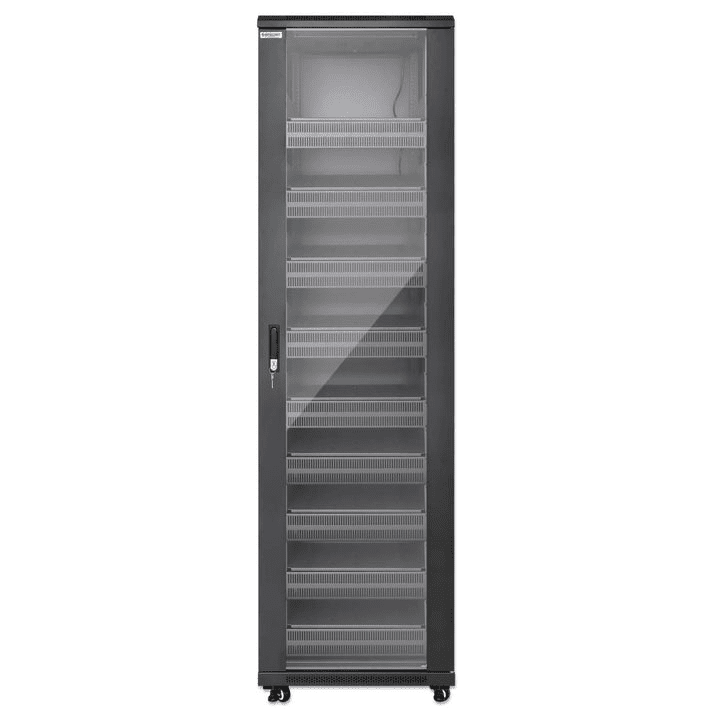

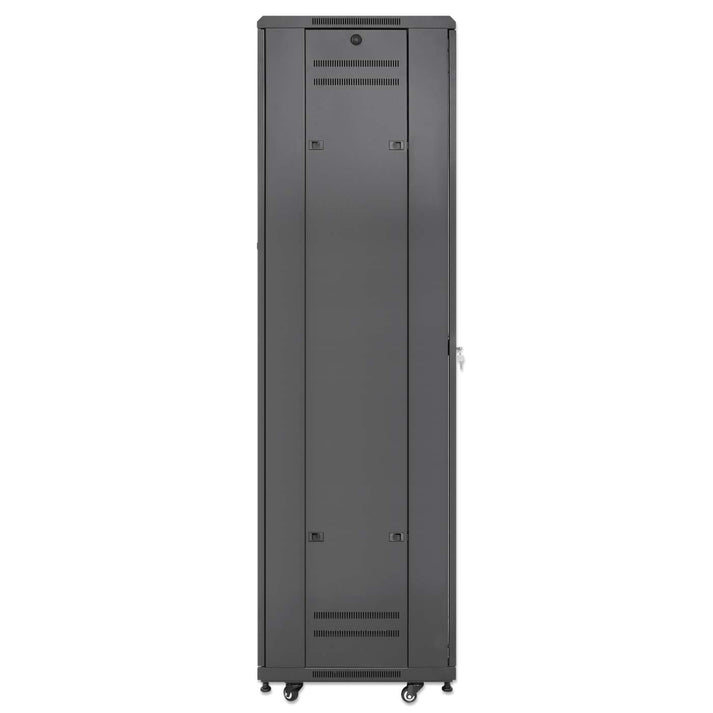

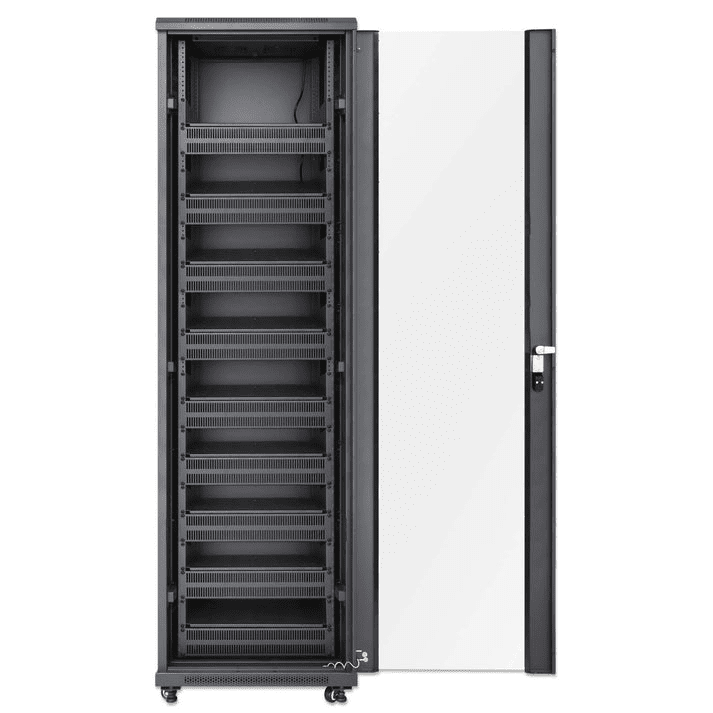

Locking reversible tempered-glass front door, steel rear door, removable side panels
-
IP20 rated, compliant with ANSI/EIA‑310‑D, IEC 60297‑2, DIN 41494, ETSI
Specification Table
| Specification |
Value |
| Rack Units (U) |
42 U |
| Width / Depth (outer) |
23.62″ (600 mm) × 23.62″ (600 mm) |
| Height (outer) |
Approx. 78.11″ (1,984 mm) |
| Adjustable Mounting Depth |
5.91″ to 19.69″ (150 mm to 500 mm) |
| Static Load Capacity |
Up to 1,760 lbs (800 kg) |
| Load Capacity on Casters |
Approx. 700 lbs (320 kg) |
| Ventilation System |
Dual roof-mounted fans with thermostat control |
| Fan Airflow |
~86 cfm (146 m³/h) per fan |
| Operating Temperature Range |
32 °F to 140 °F (0 °C to 60 °C) |
| Construction Material |
SPCC cold-rolled steel with antistatic powder coat |
| Included Accessories |
9 × 2U shelves, 9 × 2U blank panels, screws, casters, leveling feet, grounding kit |
| Standards & Ratings |
ANSI/EIA‑310‑D, IEC 60297‑2, DIN 41494, ETSI, IP20 |
Installation / Usage Scenario
Ideal for high-density networking, server, or AV equipment, the 42U cabinet is a top solution for larger IT deployments. For example, a university IT department in Phoenix could install this unit in a central data room, using the adjustable rails for deep servers and switches. The thermostat-controlled fans actively cool the equipment in Arizona’s high-heat environments, while the tempered glass front door provides visibility and added security. The included vented blank panels support proper airflow management, and heavy-duty casters allow for smooth positioning before leveling the unit with included feet.
This cabinet is perfect for commercial, institutional, or integrator installations requiring long-term durability, thermal control, and immediate usability without the hassle of assembly.
Why Choose Tri‑Tek Electronics?
-
We are an authorized distributor of Intellinet enclosures, ensuring full factory warranty
-
Our Mesa, AZ retail location supports quick local pickup or delivery across Phoenix, Chandler, Gilbert, Tempe, Glendale, and Scottsdale
-
Our team provides technical guidance on equipment layout, cooling, airflow design, and accessory recommendations
-
We offer direct factory support and the most competitive pricing in the region
Final Recommendation
If you need a reliable, fully assembled 42U rack enclosure with cooling, heavy load support, and all necessary accessories, the Intellinet 716253 is the ideal solution. Backed by local service and factory support through Tri‑Tek Electronics in Mesa, AZ, it’s ready to meet the demands of today’s high-performance network and server environments.
