Intellinet 716246 Pro Line Network Cabinet with Integrated Fans – 38U
The Intellinet 716246 Pro Line Network Cabinet with Integrated Fans (38U) is a heavy‑duty, floor‑standing rack enclosure designed for professional network, server, telecommunications, and A/V equipment. This cabinet ships fully assembled for quick deployment and is finished in a sleek black (RAL 9004) powder coat. Its robust construction and integrated features make it ideal for demanding installations.
As an authorized distributor, Tri‑Tek Electronics of Mesa, AZ provides full manufacturer warranty coverage, competitive pricing, and local support. We proudly serve installers, hobbyists, and technicians across Phoenix, Mesa, Chandler, Tempe, Gilbert, Glendale, and surrounding Arizona communities.
Key Features
-
Fully assembled 38‑U floor‑standing cabinet
-
Exterior dimensions: 23.62″ D × 23.62″ W × 71.10″ H (600 × 600 × 1806 mm)
-

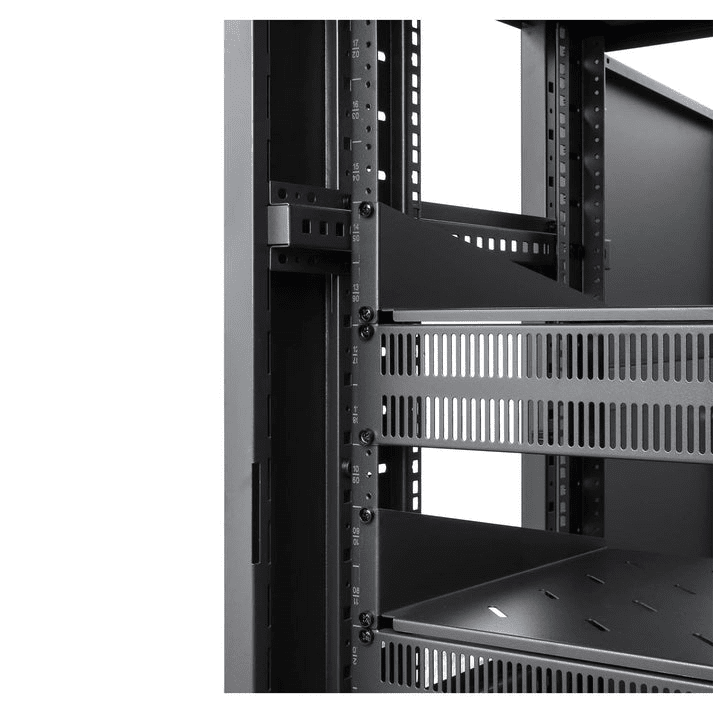

Adjustable front and rear mounting rails: 5.91″ to 19.69″ (150 mm to 500 mm)
-

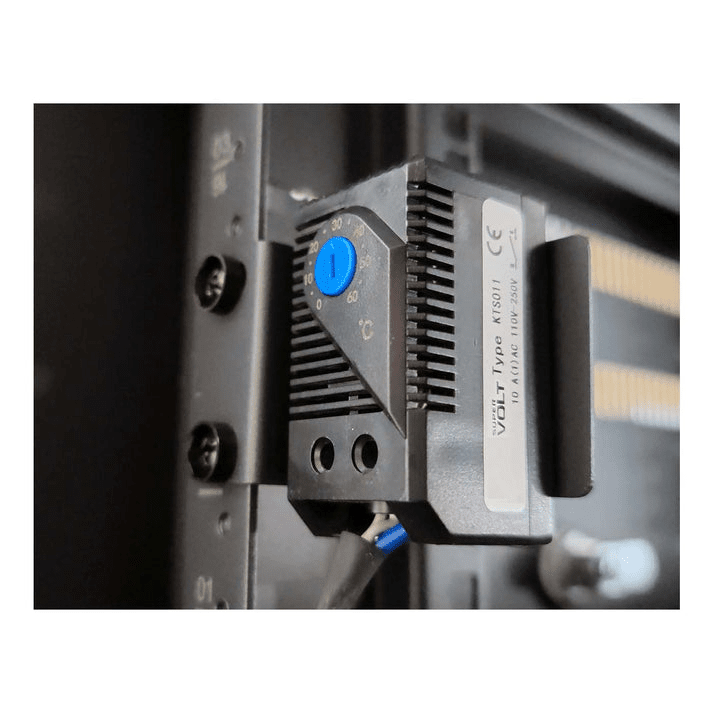

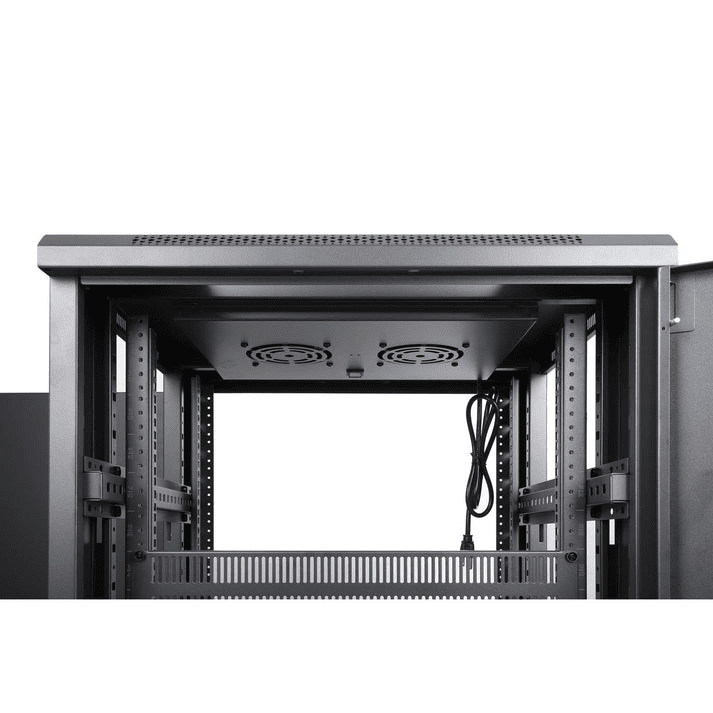

Integrated dual roof-mounted fans with thermostat control
-
High static load capacity: up to 1,760 lbs (800 kg)
-
Rated for approx. 700 lbs (320 kg) when on casters
-
Constructed from cold-rolled SPCC steel with antistatic powder coating
-

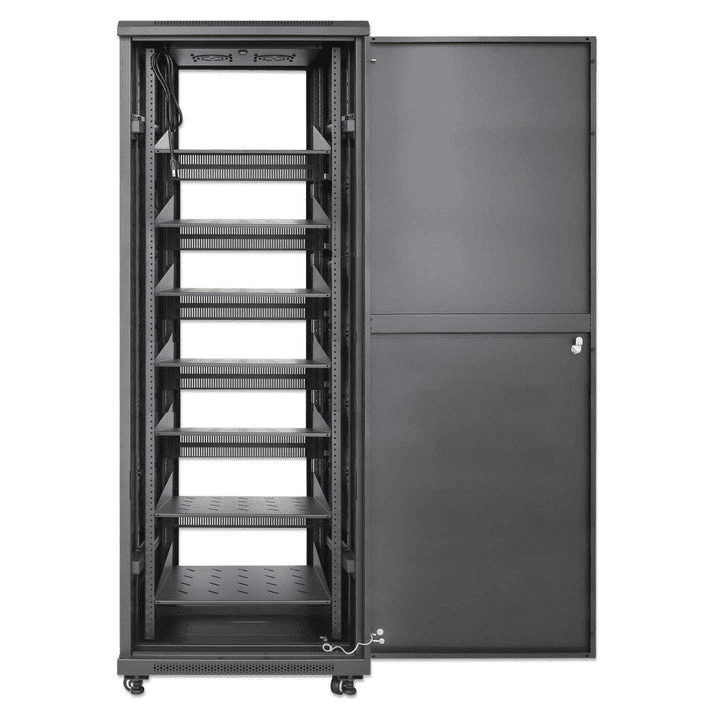

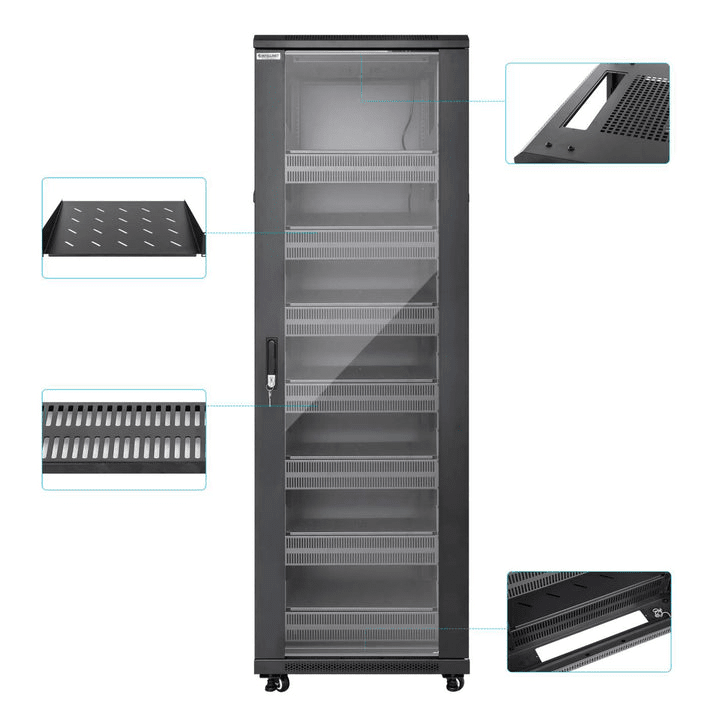

Includes seven vented 2U shelves, seven vented blank panels
-

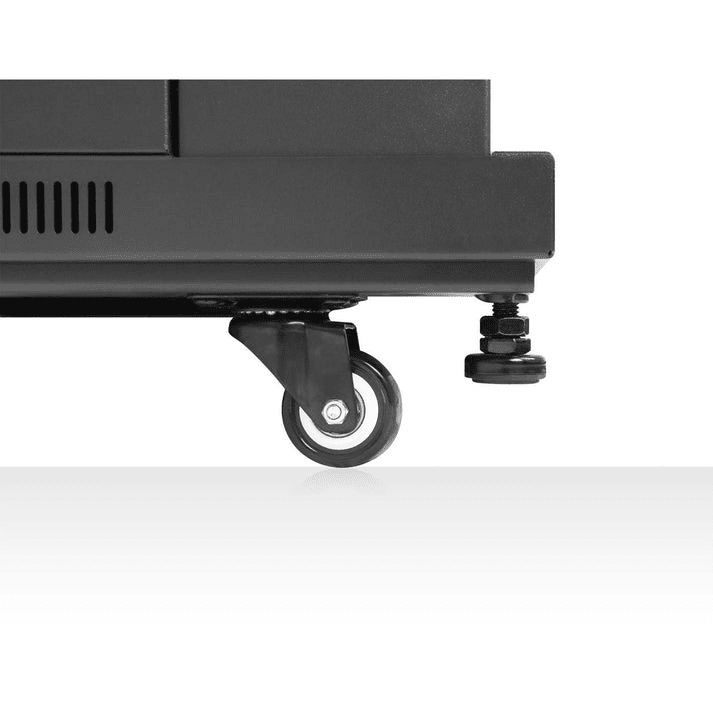

Comes with leveling feet, heavy-duty casters, 40× #10‑32 rack screws, grounding kit
-

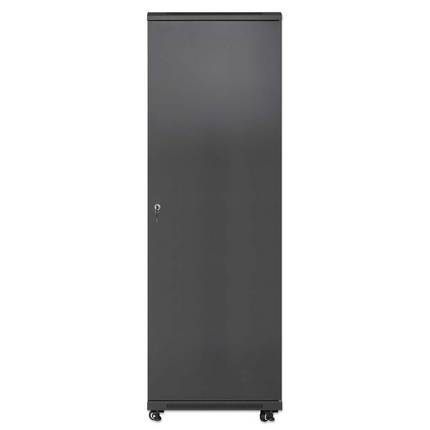

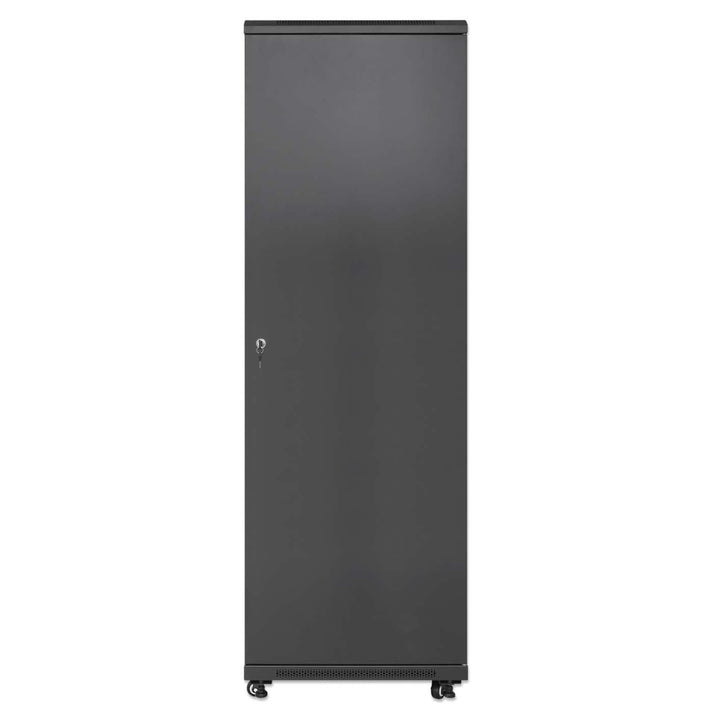

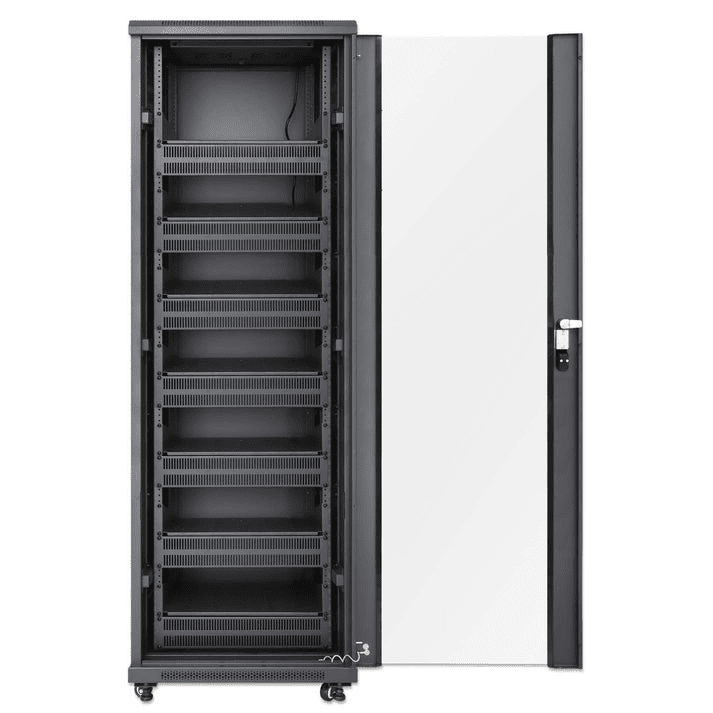

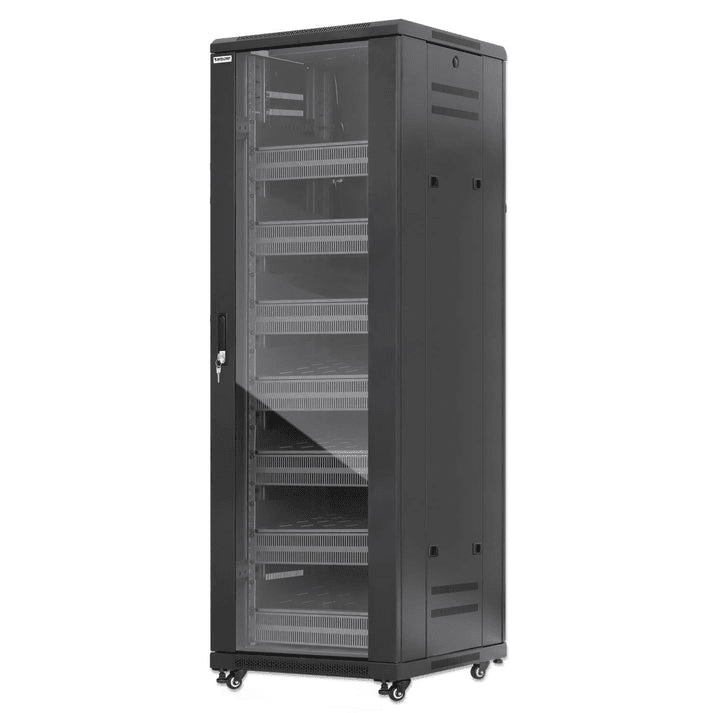

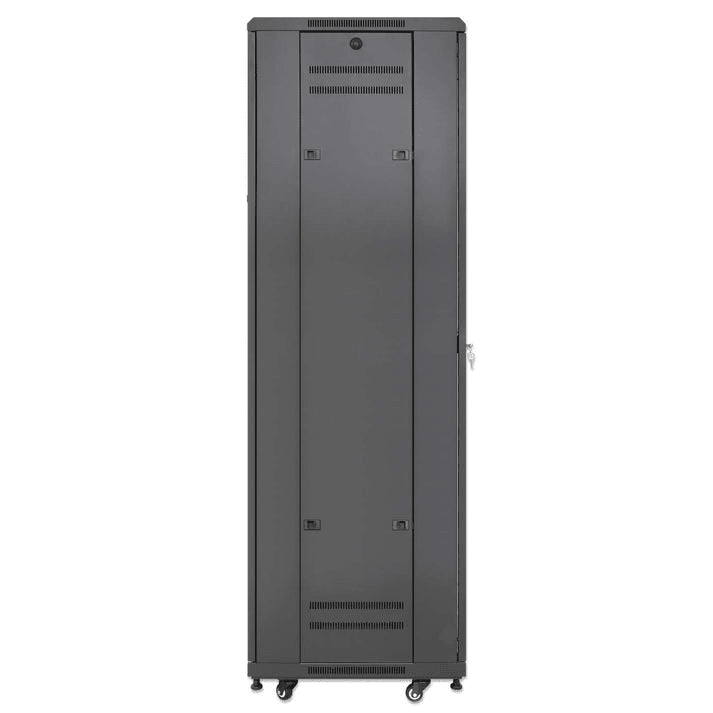

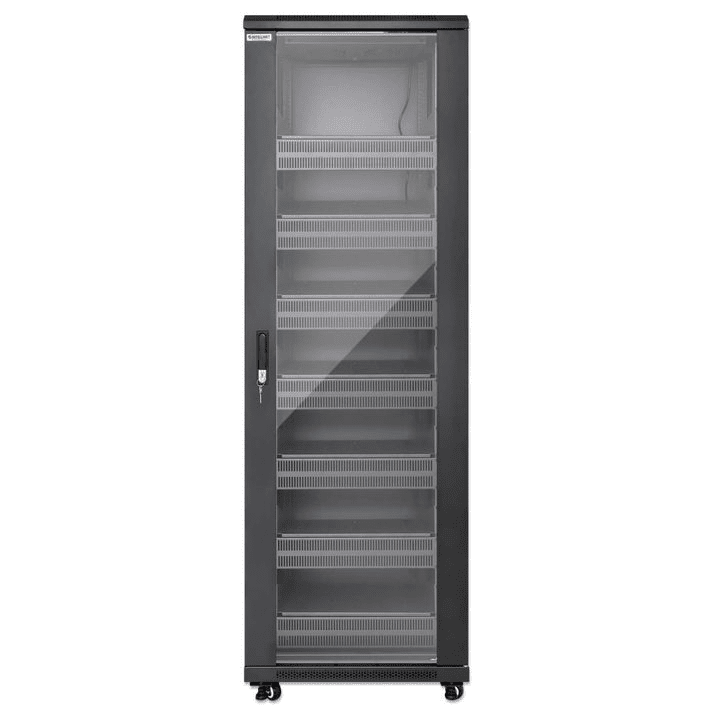

Lockable tempered-glass front door, steel rear door, and removable side panels
-
Complies with ANSI/EIA-310, IEC 60297-2, DIN 41494, ETSI standards
-
IP20 rated for equipment protection
Specification Table
| Specification |
Value |
| Rack Units (U) |
38 U |
| Width / Depth |
23.6″ (600 mm) × 23.6″ (600 mm) |
| Height |
Approx. 71.1″ (1,806 mm) |
| Adjustable Mounting Depth |
5.91″ to 19.69″ (150 mm to 500 mm) |
| Static Load Capacity |
Up to 1,760 lbs (800 kg) |
| Load Capacity on Casters |
Approx. 700 lbs (320 kg) |
| Built-in Cooling |
Dual roof-mounted fans with thermostat control |
| Thermostat Range |
32–140 °F (0–60 °C) |
| Construction Material |
SPCC cold-rolled steel with powder coating |
| Finish |
Black (RAL 9004) |
| Included Accessories |
7×2U shelves, 7×2U blank panels, screws, casters, leveling feet, grounding kit |
| Protection Rating |
IP20 |
| Compliance |
ANSI/EIA-310, IEC 60297-2, DIN 41494, ETSI |
Installation / Usage Scenario

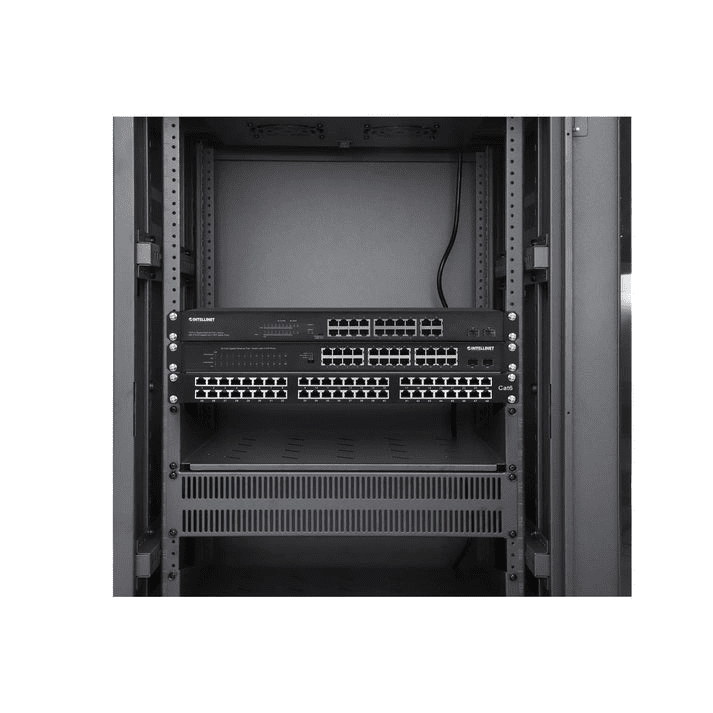

This 38U cabinet is ideal for larger-scale network and server installations, making it a go-to choice for corporate IT departments, educational institutions, or professional A/V setups. For example, an integrator in Chandler, AZ can install high-density network switches, patch panels, routers, and UPS systems in this enclosure. With its integrated cooling system, the cabinet effectively manages internal temperatures even during intense summer heat common in Phoenix and surrounding areas.
The adjustable depth allows flexibility for deeper equipment, while the removable side panels simplify cabling during setup. Heavy-duty casters make initial placement easy, and leveling feet provide secure stability. For local IT professionals and hobbyists, the cabinet offers professional-grade quality, optimal airflow, and full security, ready to deploy right out of the box.
Why Choose Tri‑Tek Electronics?
-
Tri‑Tek Electronics is an authorized distributor of Intellinet enclosures
-
Our Mesa, AZ location provides quick access and local pickup for Phoenix-area installers
-
We offer expert guidance and support for airflow, equipment layout, and cable management
-
All products include full manufacturer warranty and factory support
