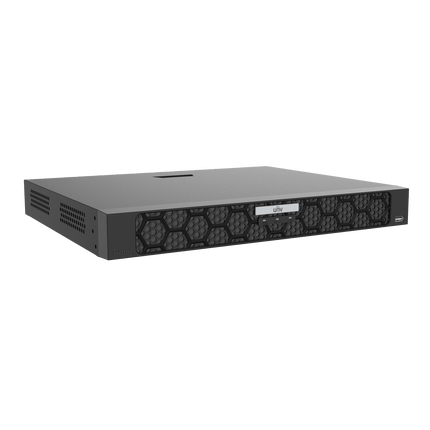

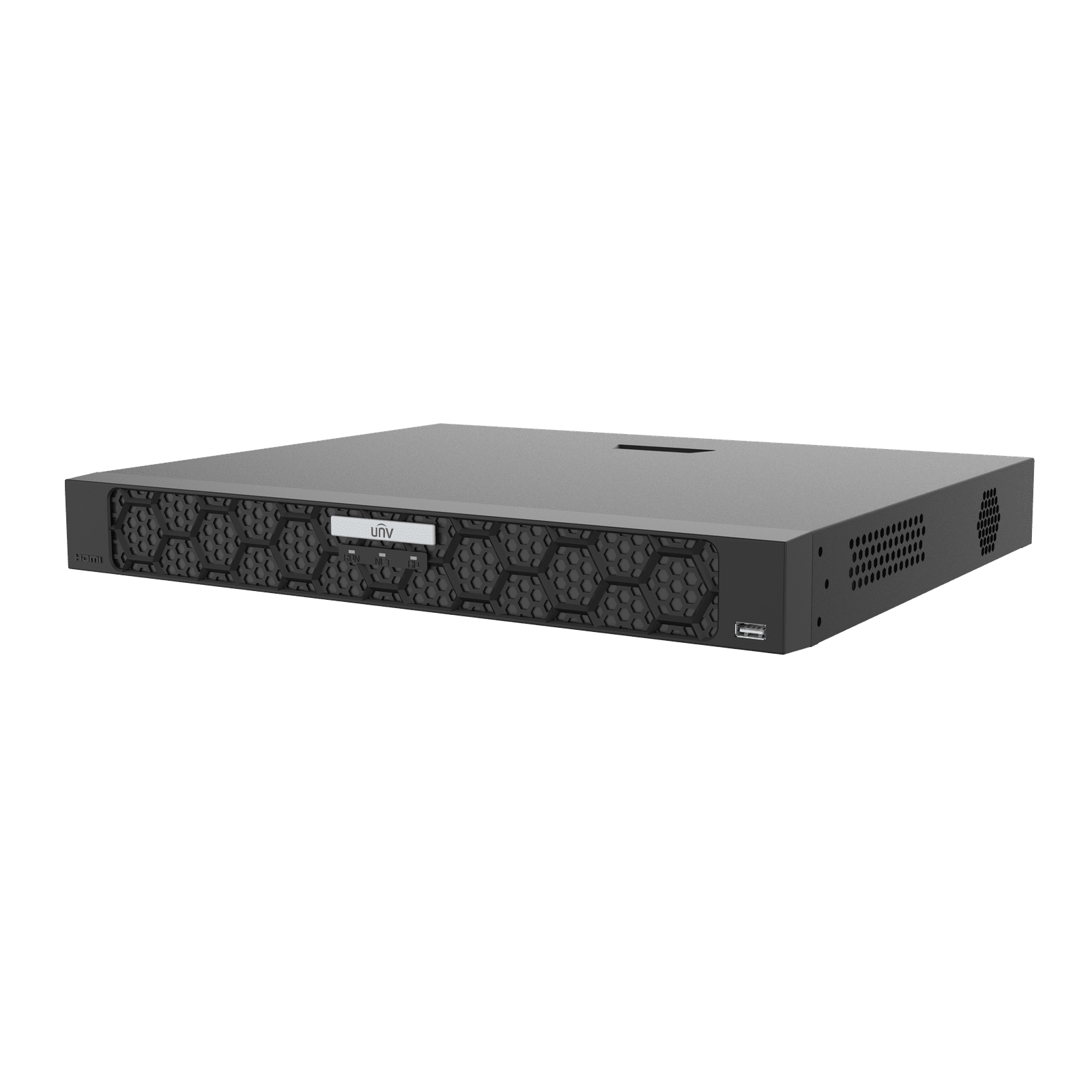

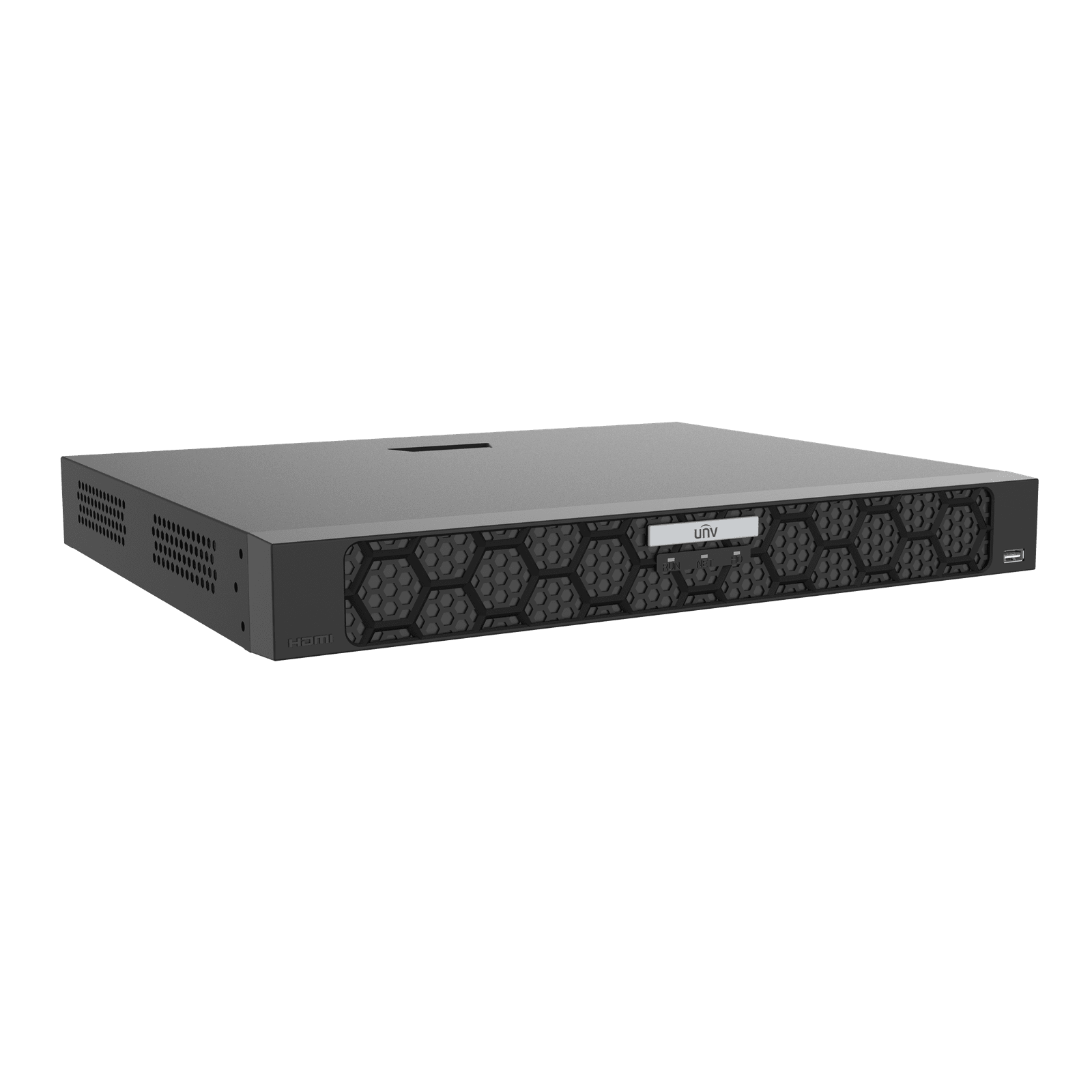

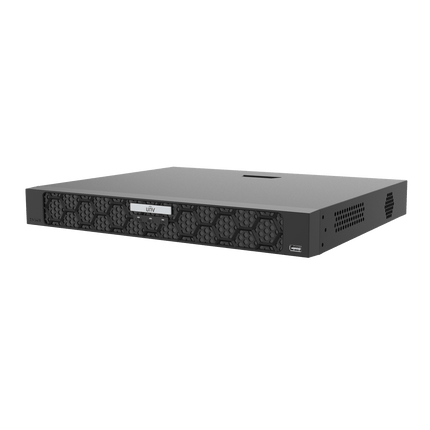

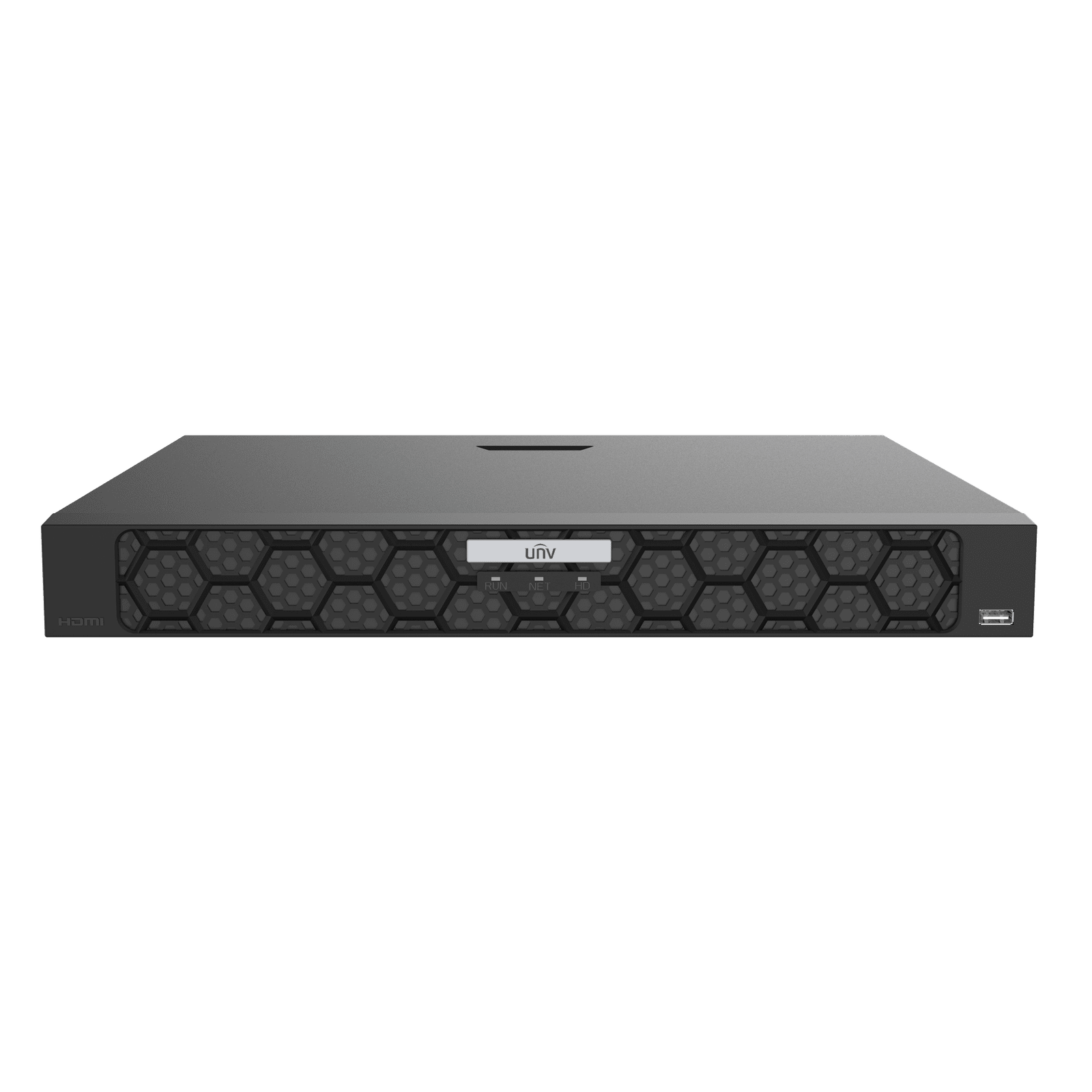

Uniview NVR502-32B-P16-IQ – 32-Channel 4K AI Network Video Recorder with 16-Port PoE
The Uniview NVR502-32B-P16-IQ is a professional-grade 32-channel network video recorder engineered for high-performance video surveillance environments. Designed to support AI-powered analytics and ultra-high-definition video, this NVR includes a built-in 16-port PoE switch for streamlined installations and reduced infrastructure costs. It's the ideal solution for commercial security integrators and large-scale projects requiring intelligent detection, real-time monitoring, and superior storage capabilities.
Tri-Tek Electronics is an authorized distributor of Uniview products, ensuring full manufacturer warranty coverage, competitive pricing, and direct factory support. We proudly serve the Phoenix metropolitan area, including Mesa, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, with a retail location in Mesa, AZ.
Key Features
-
32-channel IP camera input supporting resolutions up to 16MP per channel
-
Built-in 16-port PoE switch (IEEE 802.3af/at) with a 240W power budget
-
Dual independent HDMI and VGA video outputs, including HDMI up to 4K resolution (3840×2160)
-
AI-enabled features including:
-
Facial recognition with support for up to 50,000 face images
-
Smart Intrusion Prevention (SIP): Human/vehicle detection, line crossing, and region entrance/exit
-
Ultra Motion Detection (UMD) for advanced target classification
-
License Plate Recognition (LPR) with vehicle metadata
-
High bandwidth capacity: 320 Mbps incoming (AI off), 160 Mbps incoming (AI on), and 160 Mbps outgoing
-
Supports RAID 1 for data redundancy
-
Dual SATA interface for up to 32TB total storage (16TB per HDD)
-
ANR (Automatic Network Replenishment) ensures continuous recording during network outages
-
8 alarm inputs and 2 alarm outputs for enhanced security integration
-
Compatible with ONVIF and RTSP protocols
-
Supports remote access via web, CMS software, and mobile app
Technical Specifications
| Feature |
Specification |
| Video Compression |
Ultra 265, H.265, H.264 |
| Decoding Capability |
Up to 2×16MP@30fps, 4×4K@30fps, 16×1080P@30fps |
| Audio I/O |
1 RCA input, 1 RCA output (two-way supported) |
| Display Output |
1 HDMI (up to 4K), 1 VGA (up to 1080p) |
| USB Ports |
1 USB 2.0 (front), 1 USB 2.0 + 1 USB 3.0 (rear) |
| Network Interface |
1×RJ45 10/100/1000 Mbps Ethernet |
| Power Supply |
AC 100–240V, ≤12W (without HDD) |
| Operating Temperature |
-10°C to 50°C (14°F to 122°F) |
| Unit Dimensions |
380mm × 322mm × 53mm (15.0" × 12.7" × 2.1") |
| Weight (without HDD) |
≤2.7 kg (6.0 lbs) |
Example Installation Scenario
Multi-Tenant Office Building: This NVR is ideal for a multi-floor commercial facility where high-resolution footage and smart analytics are critical. Use facial recognition at entry points for employee tracking, vehicle metadata in parking areas, and real-time intrusion alerts around restricted zones. The 16 PoE ports minimize wiring requirements, making it easier to deploy throughout the premises.
Ideal For
-
Security Installers looking for high-capacity, intelligent NVR systems with integrated PoE
-
System Integrators handling large or AI-focused video surveillance deployments
-
Business Owners seeking reliable, scalable NVR solutions with advanced analytics and remote access
