Description

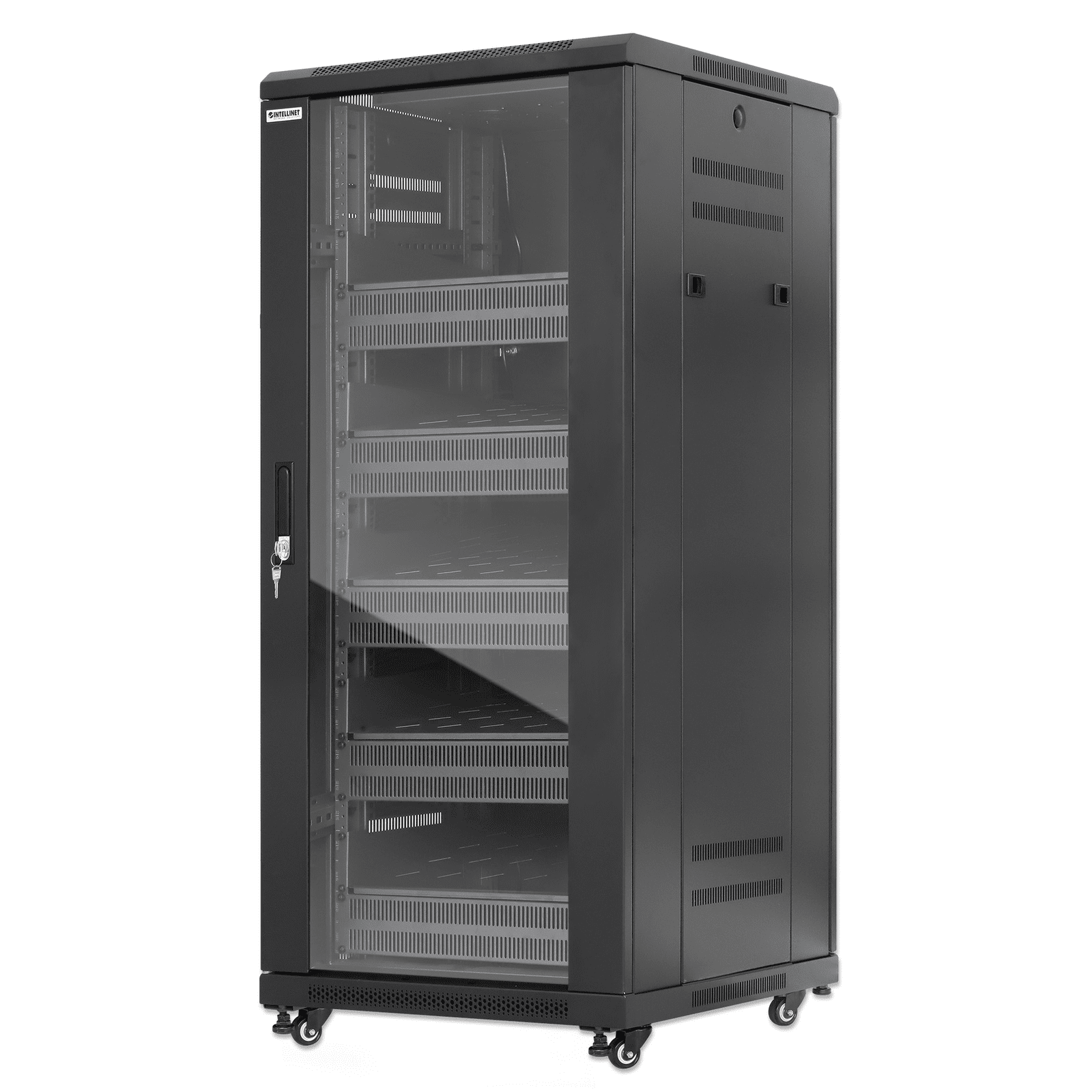

Intellinet 716239 Pro Line Network Cabinet – 27U
The Intellinet 716239 Pro Line Network Cabinet (27U) is a premium, floor‑standing rack enclosure designed for professional network, server, telecommunications, or A/V installations. It arrives fully assembled, ensuring rapid deployment and minimizing installation time. Constructed from durable SPCC cold‑rolled steel and finished in a sleek black powder coat (RAL 9004), this cabinet provides both durability and a clean, professional appearance.
As an authorized distributor, Tri‑Tek Electronics in Mesa, AZ ensures full manufacturer warranty coverage, best pricing, and factory support. We proudly serve installers, hobbyists, and technicians throughout Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and surrounding Arizona communities.
Key Features
-
Fully assembled floor-standing cabinet for immediate deployment
-
27U rack space with 23.6″ (600 mm) width and depth
-
Adjustable front and rear mounting rails: 5.91″ to 19.69″ (150 mm to 500 mm)
-
Integrated roof-mounted dual-fan cooling system with thermostat control
-
High static load capacity: up to 1760 lbs (800 kg) on level floor
-
Caster mobility: rated for approx. 700 lbs (320 kg)
-
Durable cold-rolled SPCC steel frame with antistatic powder coating
-
Includes five vented 2U shelves (15″ deep), five vented blank 2U panels
-
Comes with #10-32 rack screws, heavy-duty casters, leveling feet, and cabinet keys
-
Tempered glass front door (reversible), solid steel rear door, removable side panels with latch access
-
Operating environment: 32–140 °F (0–60 °C), 0–70% RH (non‑condensing)
-
Power requirements: 110 VAC, 60 Hz, 0.27 A, 19 W
-
Quiet operation: approx. 46 dB(A)
Specification Table
| Specification |
Value |
| Rack Units (U) |
27 U |
| Width / Depth |
23.6″ (600 mm) |
| Adjustable Mounting Depth |
5.91″ to 19.69″ (150 mm to 500 mm) |
| Static Load Capacity |
Up to 1760 lbs (800 kg) on floor |
| Load Capacity on Casters |
Approx. 700 lbs (320 kg) |
| Built‑in Cooling |
Roof‑mounted dual‑fan ventilation with thermostat |
| Operating Temp |
32 °F to 140 °F (0 °C to 60 °C) |
| Operating Humidity |
0‑70% RH, non‑condensing |
| Power Input |
110 VAC, 60 Hz, ~0.27 A, ~19 W |
| Noise Level |
~46 dB(A) |
| Construction Material |
SPCC cold‑rolled steel, antistatic powder coat |
| Included Accessories |
5×2U vented shelves, 5×2U blank panels, #10‑32 screws, leveling feet, heavy‑duty casters, keys |
Installation / Usage Scenario
This cabinet is a perfect solution for medium-sized server rooms, network closets, or A/V control centers in high-demand environments like universities, corporate campuses, or government facilities. A common scenario involves mounting switches, patch panels, routers, and UPS systems within the 27U frame while utilizing the five included vented shelves for auxiliary equipment such as modems or security NVRs.
For example, a local IT team in Phoenix installs this cabinet in their data room. The built-in fan unit effectively cools their PoE switches during Arizona's hot summers, while the reversible tempered glass door allows quick visual inspections. Its mobility on casters supports easy room reconfiguration, and the lockable side panels and doors help maintain equipment security.
Why Choose Tri‑Tek Electronics?
-
Tri‑Tek Electronics is an authorized distributor of Intellinet products
-
Located in Mesa, AZ, we offer local pickup, expert guidance, and fast support
-
Our team understands Arizona's thermal demands and helps with proper airflow solutions
-
Full factory warranty and the best local pricing on network cabinets and accessories
