Description

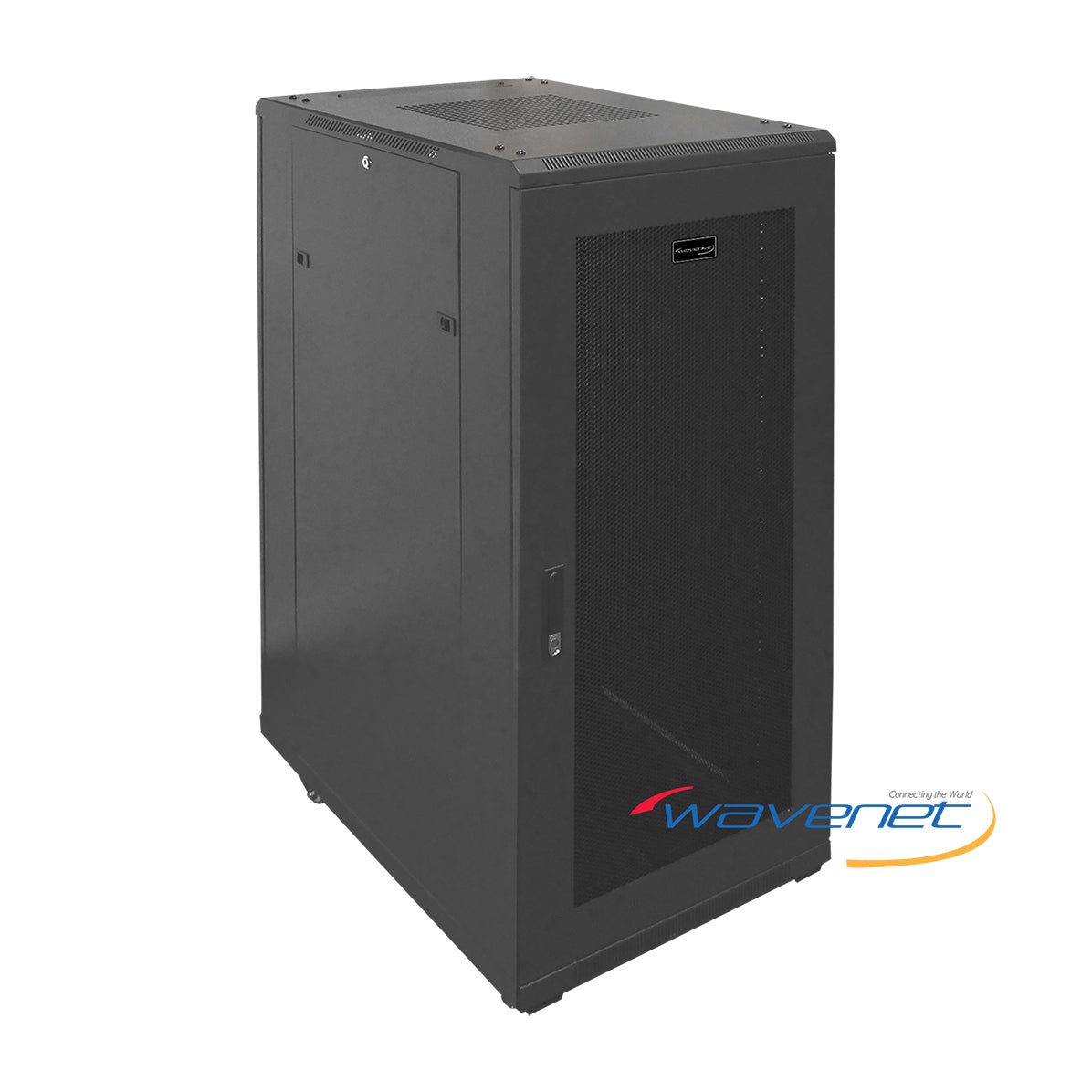

Wavenet CBTF‑FL27U‑40 27U Enclosed Network Cabinet (40″ Depth)
The Wavenet CBTF‑FL27U‑40 is a heavy-duty, floor-standing 27U network/server cabinet featuring a full 40″ external depth and approximately 35″ usable internal space, designed for professional-grade installations. Built to house deeper equipment such as enterprise switches, routers, UPS units, and cable management gear, this cabinet is ideal for high-performance network environments.
Tri‑Tek Electronics, located in Mesa, AZ, is an authorized distributor of Wavenet products and provides full factory warranty coverage, expert support, and fast local availability for customers in Phoenix, Mesa, Chandler, Tempe, Gilbert, Scottsdale, and surrounding Arizona areas.
Key Features
-
27U rack height, compatible with standard 19″ rack-mount equipment
-
40″ external depth (approx. 35″ usable internal depth) accommodates deeper devices and cable managers
-
Durable steel construction with black powder-coated finish
-
Heavy-duty weight capacity: up to approximately 1,700 lbs when properly secured
-
Two sets of mounting rails supporting M6 cage nuts or #12-24 screws
-
Pre-installed fan tray with four 68 CFM fans for active internal cooling
-
Lockable front and rear doors and removable, lockable side panels
-
Full cable access and routing support
-
Ships fully assembled for fast deployment
-
Includes casters for mobility and leveling feet for permanent placement
-
Complies with ANSI/EIA-310-D, IEC 60297-2, DIN 41494, and RoHS standards
Specification Table
| Specification |
Value |
| Rack Units (U) |
27U |
| External Depth |
40″ (1016 mm) |
| Usable Internal Depth |
Approx. 35″ |
| External Width |
Approx. 24.4″ (620 mm) |
| External Height |
Approx. 54.4″ (1382 mm) |
| Load Capacity |
Up to 1,700 lbs (771 kg) |
| Mounting Rail Threading |
M6 cage nut compatible and #12-24 supported |
| Cooling |
Fan tray with four 68 CFM fans |
| Doors & Panels |
Lockable front and rear doors, removable sides |
| Finish |
Black powder coat |
| Construction |
Cold-rolled steel |
| Standards Compliance |
ANSI/EIA-310-D, IEC 60297-2, DIN 41494, RoHS |
Installation / Usage Scenario
This 27U cabinet is ideal for enterprise and commercial IT rooms where equipment depth and density demand advanced infrastructure. In a Phoenix-area data closet or AV control room, this cabinet can host multiple deep switches, cable organizers, battery backups, and more. An installer can roll the cabinet into place using the casters, finalize its position with the leveling feet, and confidently mount gear using M6 cage nuts. The built-in fan tray ensures airflow is actively maintained—a critical feature for installations in Arizona's high-temperature conditions. The secure locking mechanisms and removable side panels simplify access without compromising safety.
Why Choose Tri‑Tek Electronics?
-
Tri‑Tek Electronics is an authorized distributor of Wavenet network enclosures
-
Located in Mesa, AZ, we offer same-day pickup or rapid delivery for customers throughout the Phoenix metro area
-
We provide expert guidance on rack layout, thermal management, accessory selection, and proper deployment strategies
-
All Wavenet products purchased from us include full factory warranty and technical support
Final Recommendation
For professional installations requiring extra depth, active cooling, high load capacity, and secure access, the Wavenet CBTF‑FL27U‑40 27U cabinet is a reliable solution. Available locally from Tri‑Tek Electronics in Mesa, AZ, this cabinet delivers performance, quality, and value for Arizona's IT and AV professionals.
