Description

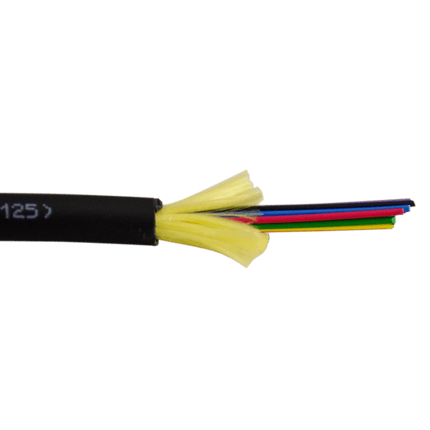

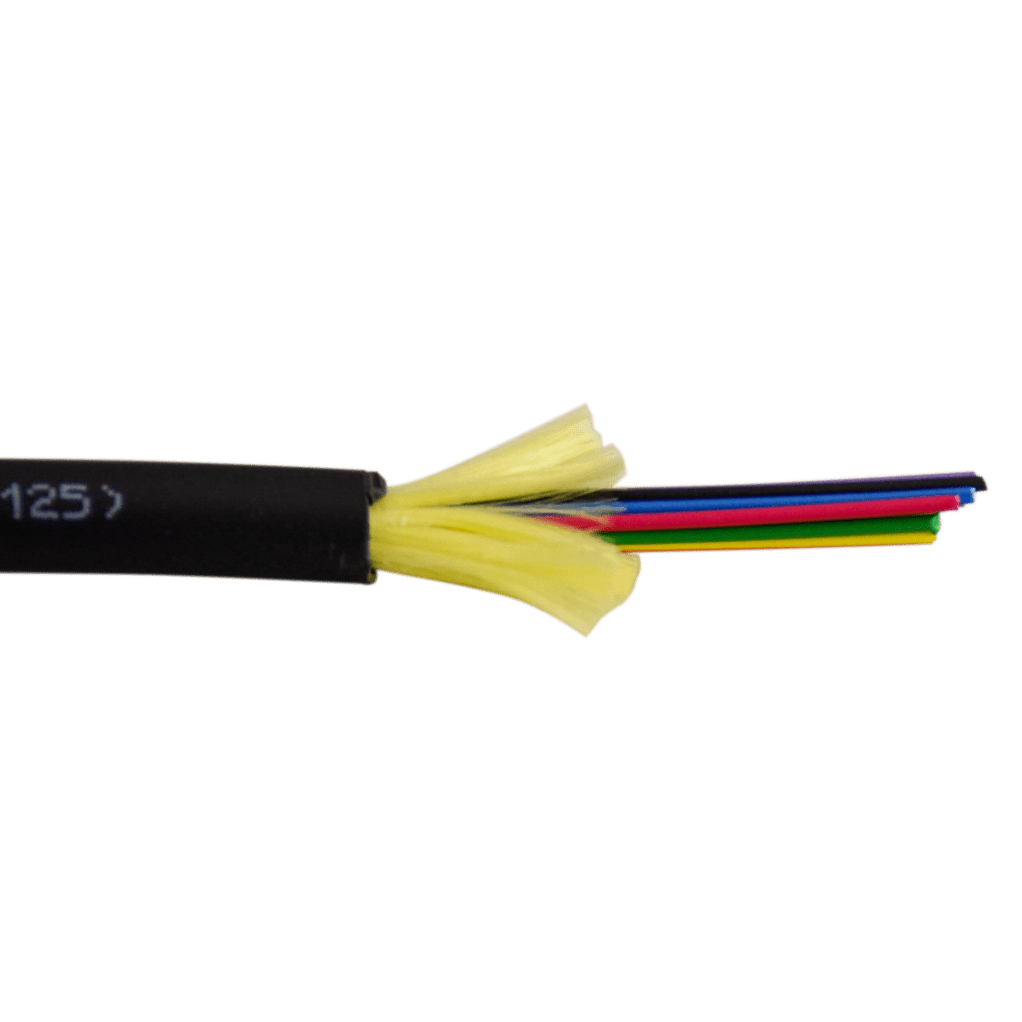

TechLogix M3I-2M-P-BK-1000 ECOFiber™ 2-Strand OM3 50µm Indoor/Outdoor Plenum Fiber Optic Cable – Sold by the Foot
The TechLogix M3I-2M-P-BK-1000 is a premium 2-strand multimode OM3 fiber optic cable designed for seamless performance in both indoor and outdoor installations. This plenum-rated cable is constructed with laser-optimized 50/125µm Corning ClearCurve fibers, offering exceptional bend insensitivity and performance. Engineered for professional installations, the cable supports tight routing and high-density environments without sacrificing signal integrity.
Tri-Tek Electronics is an authorized distributor of TechLogix products, ensuring full manufacturer warranty coverage, best pricing, and factory support.
Key Features
-
Fiber Type: OM3 Multimode (50/125µm) laser-optimized with Corning ClearCurve
-
Strand Count: 2 fibers (Duplex)
-
Jacket Rating: OFNP (Plenum-rated), suitable for indoor and outdoor use
-
Jacket Color: Black
-
Construction: Tight-buffered Micro Distribution
-
Outer Diameter: Approximately 4.4mm
-
Minimum Bend Radius: 7.5mm
-
UV Resistance: Yes
-
Compliance: ROHS3 Compliant
-
Packaging: Eco-friendly, recyclable spool
-
Termination Efficiency: Average of 2.5 minutes per termination
Applications
This cable is an ideal choice for:
-
Data Centers: High-speed OM3 links for SAN and LAN interconnects
-
Enterprise Backbone Cabling: Durable and flexible cable routing through plenum spaces
-
A/V Systems: Professional-grade signal transmission for high-resolution content delivery
-
Telecommunications: Future-ready fiber infrastructure for campus and long-haul connections
Installation Example
In a commercial or educational facility, this cable can be deployed through return air spaces or risers to interconnect network switches and routers across multiple floors. Its tight-buffered construction and bend-insensitive design make it easy to install in confined spaces or along complex cable pathways. Installers benefit from fast termination times and reliable performance even in challenging environments.
Why Choose Tri-Tek Electronics?
Based in Mesa, Arizona, Tri-Tek Electronics proudly supports customers across the Phoenix metro area—including Chandler, Tempe, Gilbert, Scottsdale, and Glendale. As an authorized TechLogix distributor, we provide:
-
Full Manufacturer Warranty
-
Expert Technical Support
-
Competitive Local Pricing
-
Fast Turnaround and Local Pickup Options
Visit our retail location or contact us today to order the TechLogix M3I-2M-P-BK-1000 fiber optic cable by the foot.
