Description

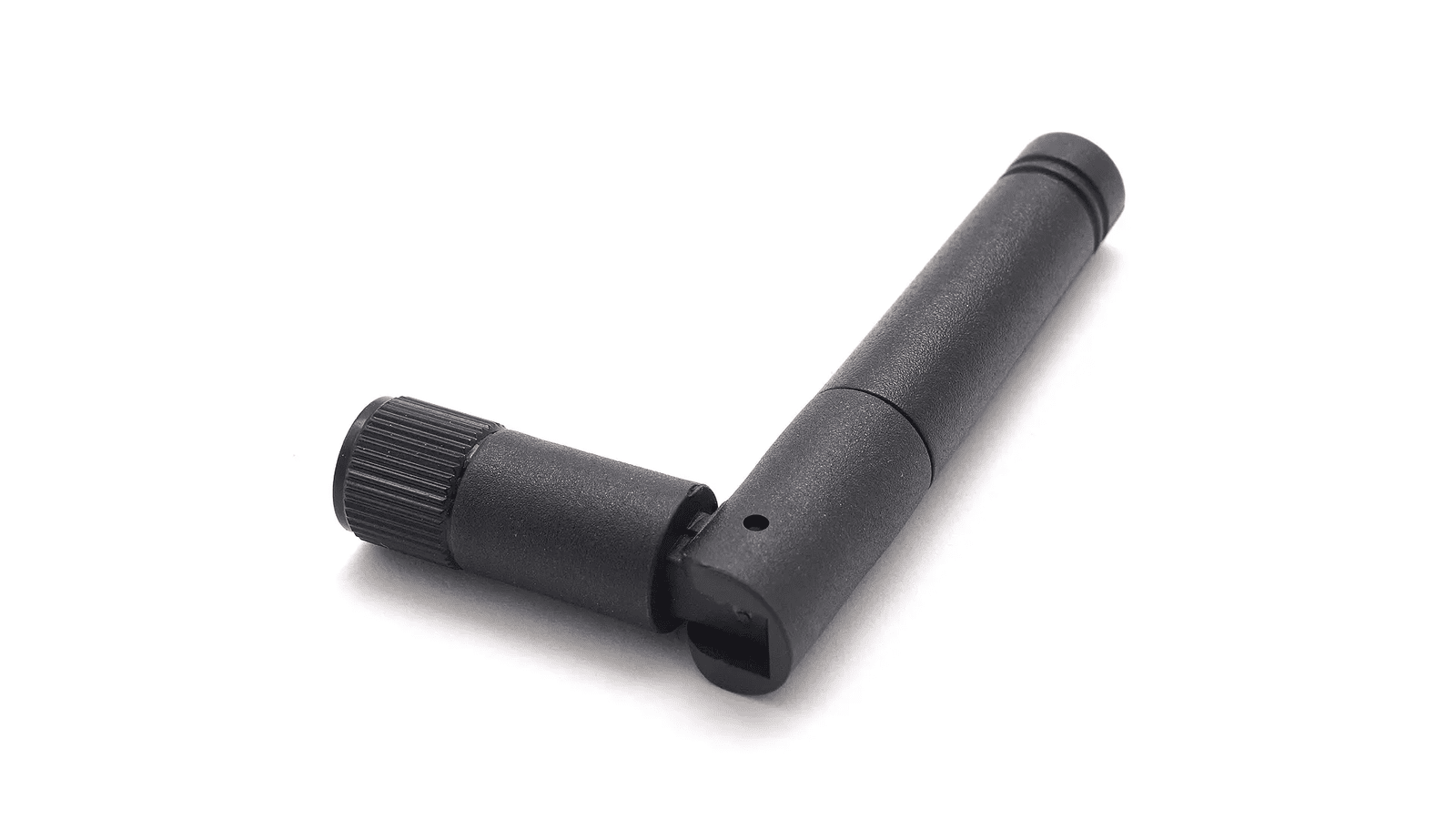

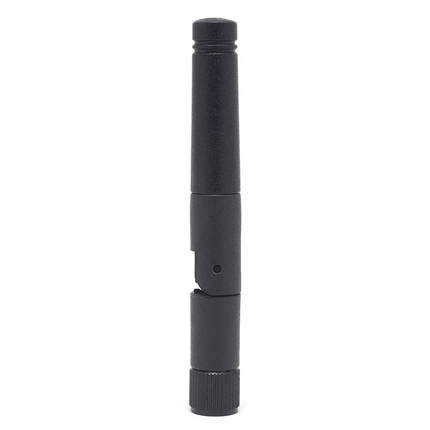

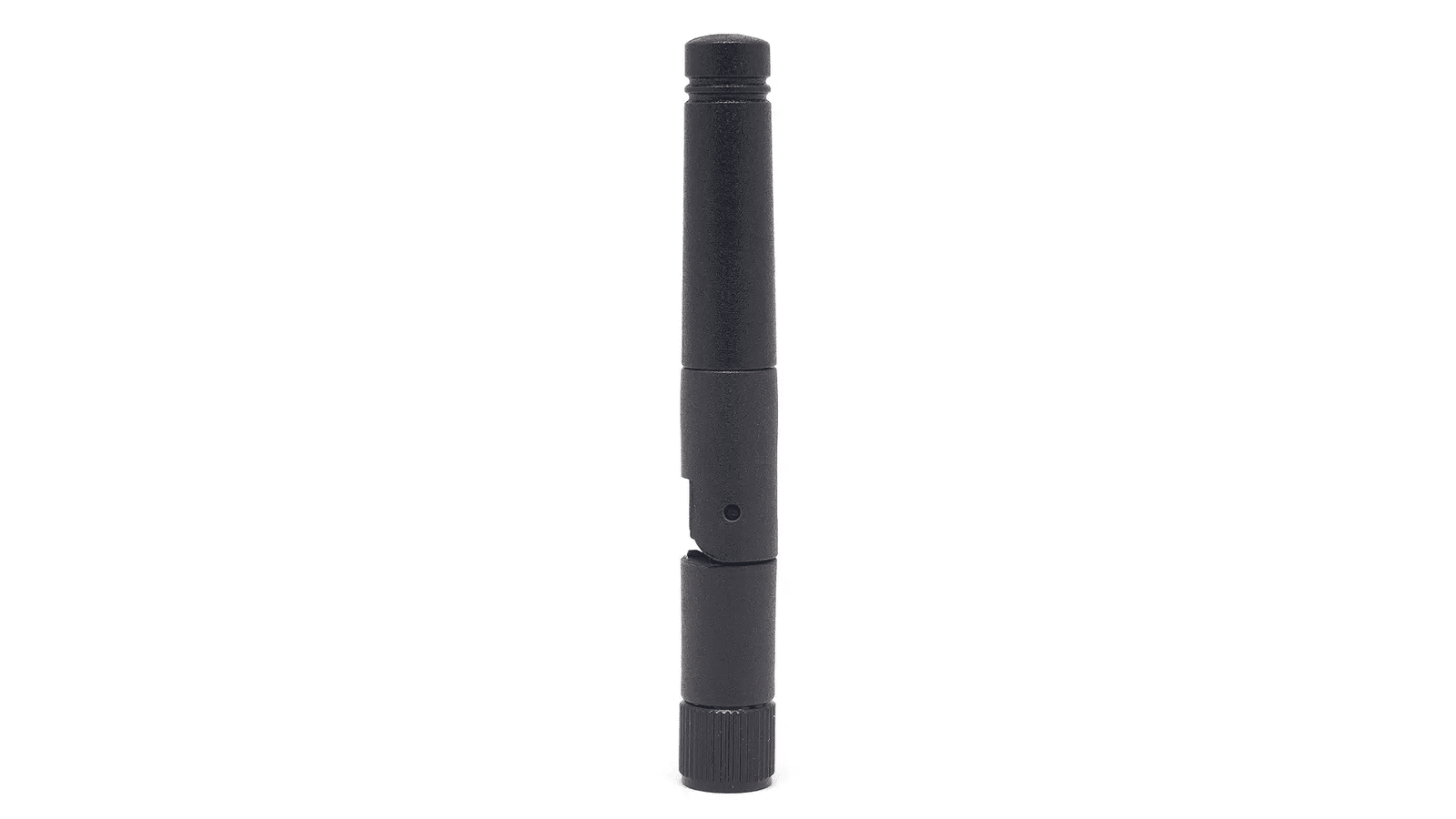

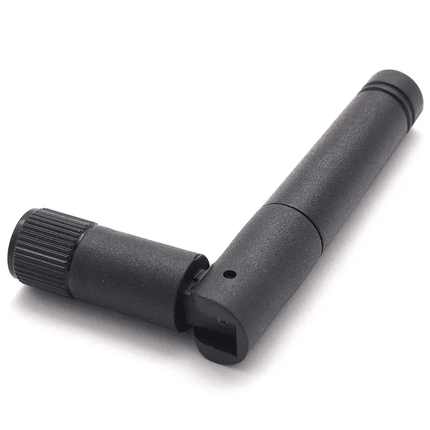

2J Antennas 2JW1302-C442B 2.4/5.0 GHz WiFi, ZigBee & ISM Hinged RP-SMA Antenna
The 2J Antennas 2JW1302-C442B is a high-performance dual-band WiFi antenna designed for 2.4 GHz and 5 GHz wireless applications. Featuring a hinged swivel design, RP-SMA male connector, and peak gain up to 3.2 dBi, this antenna provides reliable wireless connectivity for WiFi, Bluetooth, ZigBee, and ISM applications. Its compact form factor and ground-plane-independent design make it an excellent choice for networking equipment, IoT devices, industrial gateways, embedded systems, and wireless communications products.
Tri-Tek Electronics is an authorized distributor of 2J Antennas products, ensuring full manufacturer warranty coverage, factory support, and competitive pricing. Customers throughout Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and across Arizona can rely on Tri-Tek Electronics for expert product selection and support.
Features and Benefits
- Supports 2.4 GHz and 5 GHz WiFi bands
- Compatible with WiFi, Bluetooth, ZigBee, and ISM applications
- Peak WiFi gain up to 3.2 dBi
- Hinged swivel connector design for optimal antenna positioning
- Ground-plane-independent operation
- RP-SMA male connector
- Compact low-profile form factor
- Suitable for indoor and outdoor enclosure installations
- Reliable omni-directional coverage
- Ideal for industrial IoT, wireless networking, telemetry, and embedded devices
Specifications
| Specification |
Value |
| Manufacturer |
2J Antennas |
| Part Number |
2JW1302-C442B |
| Technology |
WiFi, Bluetooth, ZigBee, ISM |
| Frequency Range |
2410 – 2490 MHz, 4920 – 5925 MHz |
| Peak Gain |
Up to 3.2 dBi |
| Connector |
RP-SMA Male |
| Mounting Style |
Connector Mount |
| Antenna Type |
Hinged Swivel |
| Radiation Pattern |
Omni-Directional |
| Impedance |
50 Ohm |
| Dimensions |
Approximately 76 mm x 10 mm |
| Color |
Black |
| Operating Temperature |
Industrial Grade |
| Compliance |
RoHS |
Ideal Applications
- WiFi access points
- Wireless routers and gateways
- Industrial IoT systems
- Smart building automation
- Wireless security systems
- ZigBee sensor networks
- Embedded wireless devices
- Remote monitoring and telemetry equipment
- M2M communications
Installation Example
An installer deploying an industrial wireless gateway inside a manufacturing facility can use the 2JW1302-C442B to provide dependable dual-band WiFi connectivity while maintaining flexibility for antenna positioning. The hinged connector allows the antenna to be adjusted for optimal signal performance inside cabinets, control panels, and networking enclosures where space is limited.
Why Buy From Tri-Tek Electronics?
Tri-Tek Electronics provides professional-grade wireless networking and antenna solutions for installers, system integrators, OEMs, IT professionals, and industrial automation specialists. As an authorized 2J Antennas distributor, Tri-Tek Electronics delivers genuine products backed by full manufacturer warranty coverage and expert technical support from its Mesa, Arizona location.
