Description

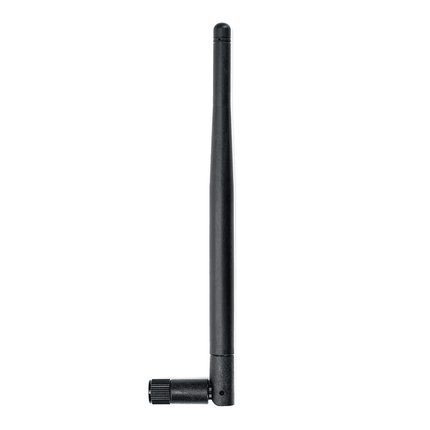

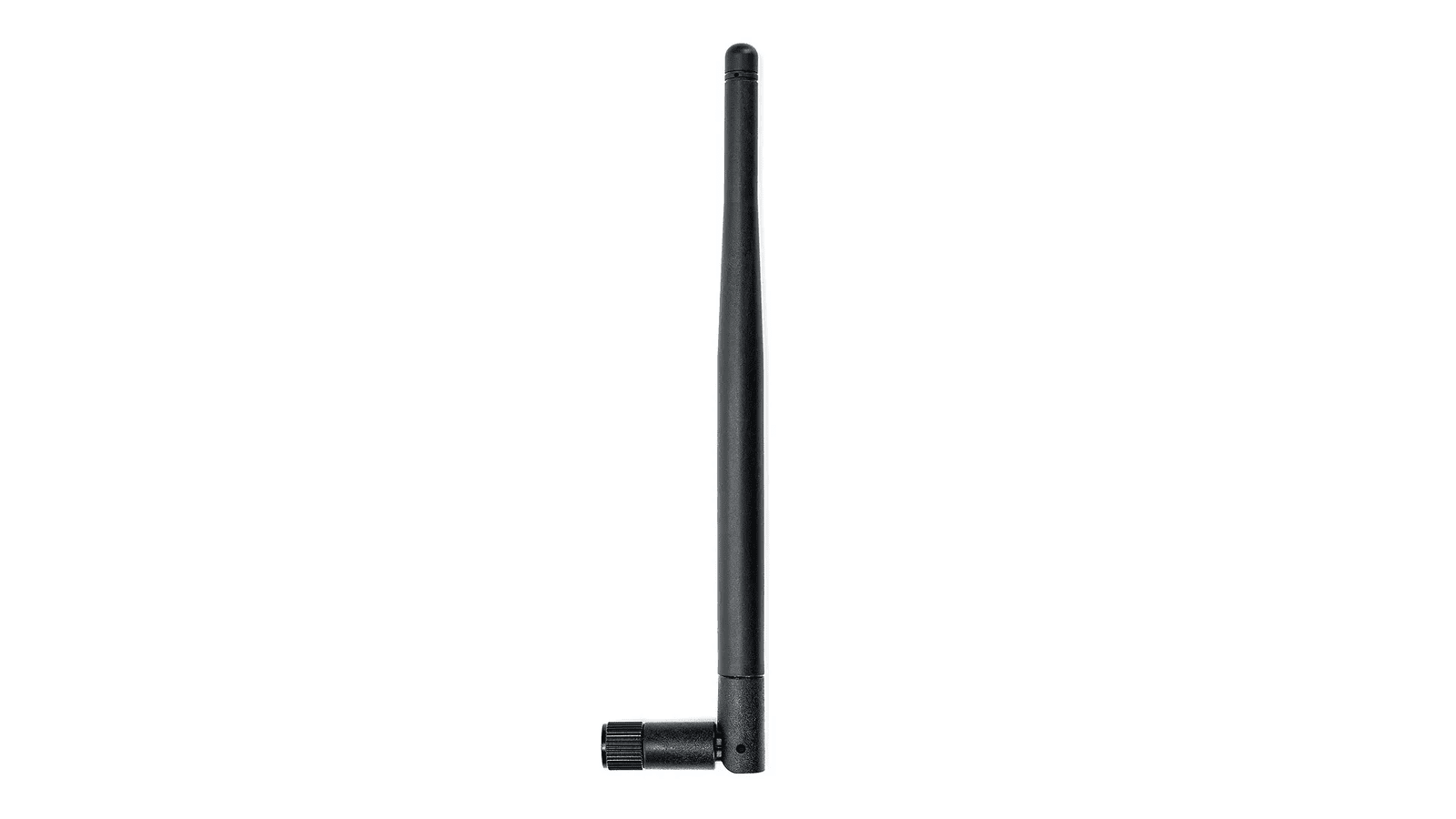

2J Antennas 2JW0502-C442B 2.4/5.0/6.0 GHz WiFi 6E/7 Hinged Connector Mount Antenna – RP-SMA, 6.6 dBi Peak Gain
The 2J Antennas 2JW0502-C442B is a high-performance tri-band antenna designed to support the latest WiFi 6E and WiFi 7 wireless technologies across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. Featuring a 7-inch articulated hinged design, RP-SMA male connector, and peak gain up to 6.6 dBi, this antenna delivers exceptional wireless performance for networking equipment, industrial IoT devices, wireless gateways, embedded systems, and advanced communications applications.
Its adjustable connector mount design allows installers to optimize antenna orientation for improved signal coverage and throughput while maintaining a professional installation appearance. The ground-plane-independent construction provides consistent performance across a wide variety of devices and enclosure types.
Tri-Tek Electronics is an authorized distributor of 2J Antennas products, providing full manufacturer warranty coverage, factory support, and competitive pricing. Customers throughout Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale, and across Arizona trust Tri-Tek Electronics for reliable wireless networking products and expert technical assistance.
Features and Benefits
- Supports WiFi 6E and WiFi 7 technologies
- Covers 2.4 GHz, 5 GHz, and 6 GHz frequency bands
- Peak gain up to 6.6 dBi
- 7-inch hinged swivel antenna design
- RP-SMA male connector
- Ground-plane-independent operation
- Omni-directional radiation pattern
- Adjustable positioning for optimized signal performance
- Compact and durable construction
- Suitable for networking, industrial, commercial, and IoT applications
- Ideal for access points, routers, gateways, and embedded wireless devices
Specifications
| Specification |
Value |
| Manufacturer |
2J Antennas |
| Part Number |
2JW0502-C442B |
| Technology |
WiFi 6E, WiFi 7, WLAN, Bluetooth, ISM |
| Frequency Range |
2410–2490 MHz |
| Frequency Range |
4920–7125 MHz |
| Peak Gain |
Up to 6.6 dBi |
| Impedance |
50 Ohm |
| Polarization |
Linear |
| Radiation Pattern |
Omni-Directional |
| Connector |
RP-SMA Male |
| Mounting Style |
Connector Mount |
| Antenna Type |
Hinged Swivel |
| Antenna Length |
Approximately 7 Inches (178 mm) |
| Color |
Black |
| Operating Temperature |
-40°C to +85°C |
| Storage Temperature |
-40°C to +85°C |
| Compliance |
RoHS |
Ideal Applications
- WiFi 6E access points
- WiFi 7 networking equipment
- Industrial wireless gateways
- Smart building infrastructure
- IoT and M2M devices
- Wireless video systems
- Embedded wireless communications
- Remote monitoring equipment
- Commercial networking installations
- Security and surveillance networking systems
Installation Example
A network installer deploying a WiFi 6E gateway inside a manufacturing facility can use the 2JW0502-C442B to maximize wireless coverage and throughput. The hinged connector allows the antenna to be positioned vertically or horizontally depending on equipment orientation, helping optimize signal propagation while maintaining a compact installation footprint. The higher gain design can improve connectivity in challenging industrial and commercial environments.
Why Choose the 2JW0502-C442B?
As wireless networks continue migrating to WiFi 6E and WiFi 7 technologies, the 2JW0502-C442B provides broad tri-band coverage and enhanced gain to support higher speeds, greater device density, and improved reliability. Its versatile hinged design and wide frequency support make it an excellent choice for OEMs, system integrators, IT professionals, and low-voltage installers seeking a future-ready wireless antenna solution.
