Description

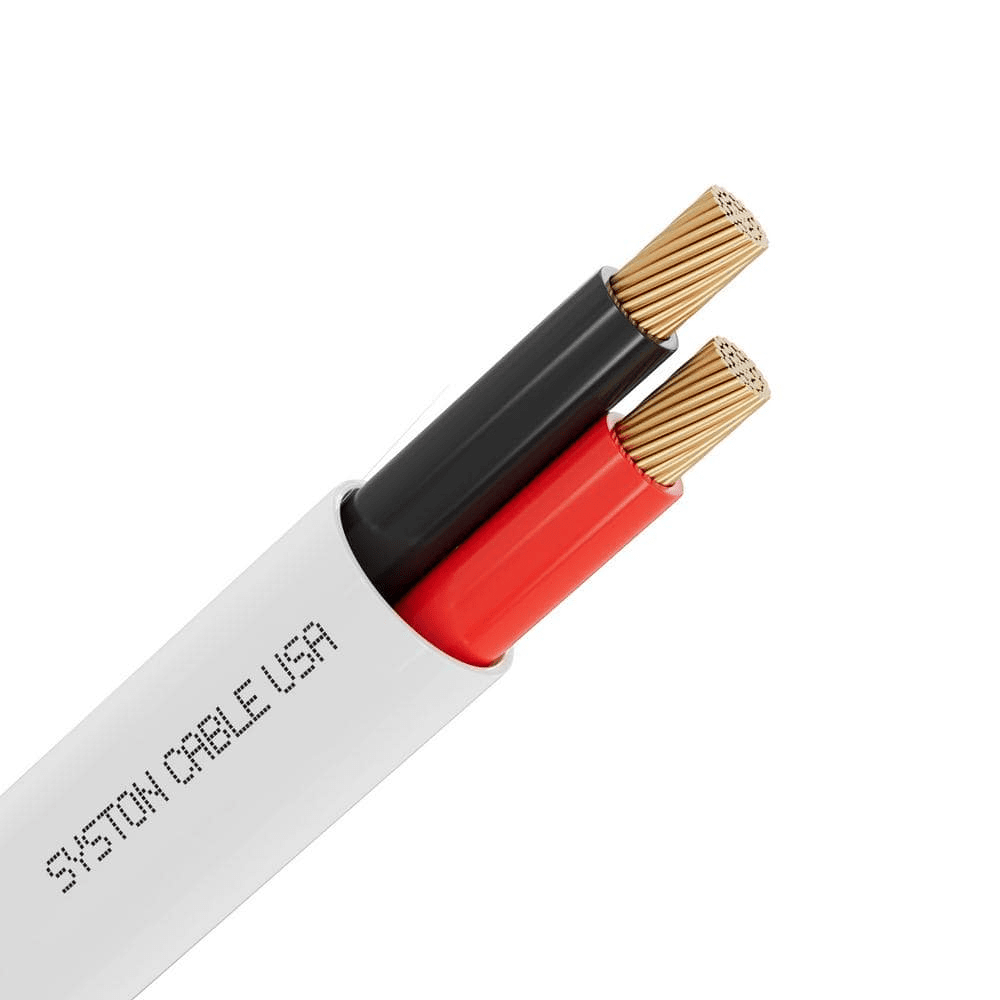

Syston 5803-SP-WH-1000 – 16/2 Stranded Plenum Security, Control, Sound & Alarm Cable (White, 1000 ft)
The Syston 5803-SP-WH-1000 is a high-quality 16 AWG, 2-conductor, stranded copper cable, supplied in a 1000-foot spool. Built for professional low-voltage installations, this plenum-rated cable is ideal for security systems, alarms, sound distribution, intercoms, and control wiring. With its CMP/CL3P/FPLP/FT6 fire-safety rating, it ensures code compliance in plenum spaces and delivers safe, long-lasting performance.
Key Features
-
Conductor: 16 AWG stranded bare copper
-
Configuration: 2-conductor design
-
Jacket: White PVC plenum-rated (CMP/CL3P/FPLP/FT6)
-
Safety Standards: Class 3 rated, fire-retardant, low-smoke emissions
-
Length: 1000 ft spool for large-scale installations
-
Performance: Reliable for both residential and commercial in-wall applications

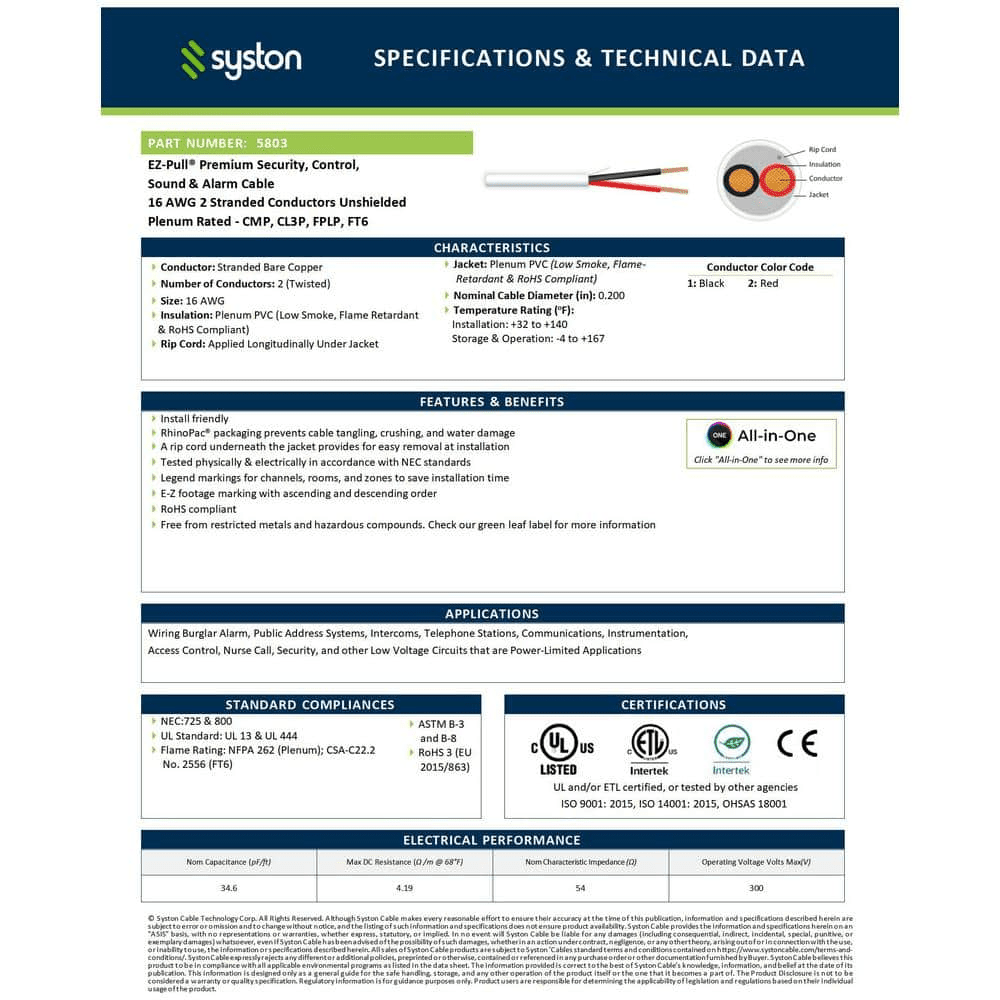

Specifications Table
| Specification |
Detail |
| Part Number |
5803-SP-WH-1000 |
| Conductor Size |
16 AWG stranded copper |
| Number of Conductors |
2 |
| Jacket Type |
White PVC, plenum-rated |
| Fire-Safety Ratings |
CMP, CL3P, FPLP, FT6 |
| Voltage Rating |
Class 3, up to 300 V |
| Spool Length |
1000 ft (305 m) |
| Typical Applications |
Security, alarm, sound, control wiring |
Ideal Applications
-
Security Systems: Alarm sensors, control panels, and detectors
-
Sound & Intercom Systems: Paging and communication setups
-
Low-Voltage Control Wiring: HVAC, access control, and building automation
-
Plenum-Safe Installations: Code-compliant for ceilings, risers, and other air-handling spaces
This cable offers the flexibility, fire safety, and performance demanded by professional installers for large projects.
