Description

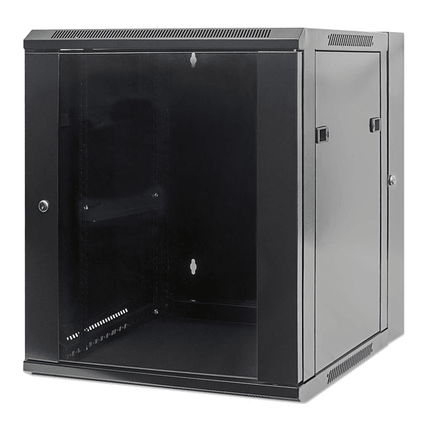

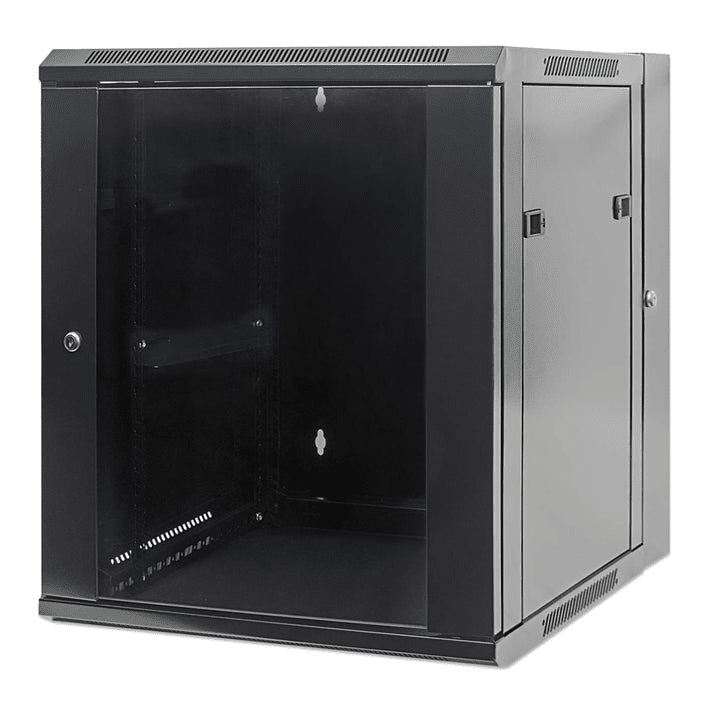

Intellinet 716277 12U 19″ Double Section Wall‑Mount Cabinet
The Intellinet 716277 is a 12‑U, fully assembled wall‑mount network cabinet designed for space‑efficient network and server installations. Ideal for telecommunications closets, surveillance, A/V systems, or compact IT deployments in Phoenix, Mesa, Chandler, and other Arizona market locations, this cabinet offers utility, security, and professional‑grade build quality for installers, integrators, and technicians.
Tri‑Tek Electronics, based in Mesa, AZ, is an authorized distributor providing full manufacturer warranty, factory support, and best pricing. We support professionals across the Phoenix metro area with fast local availability and expert service.
Key Features
-

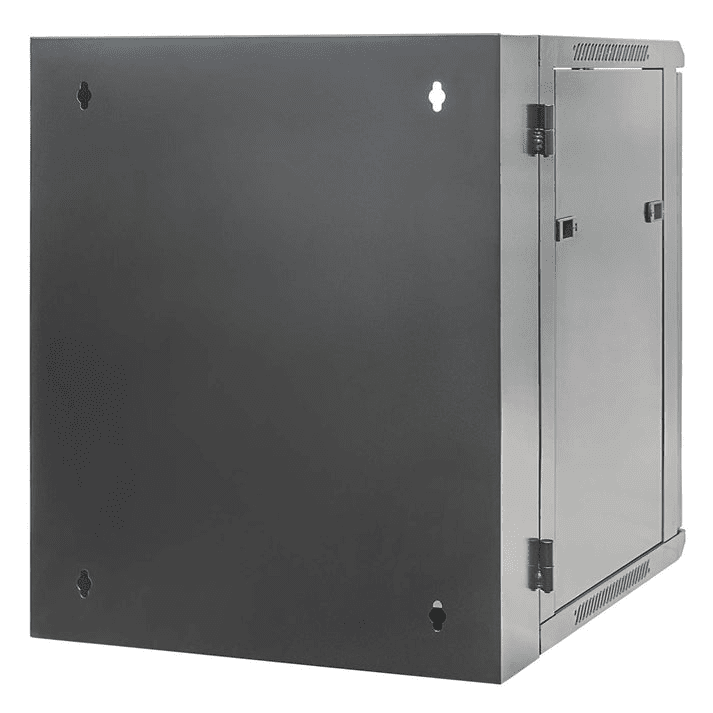

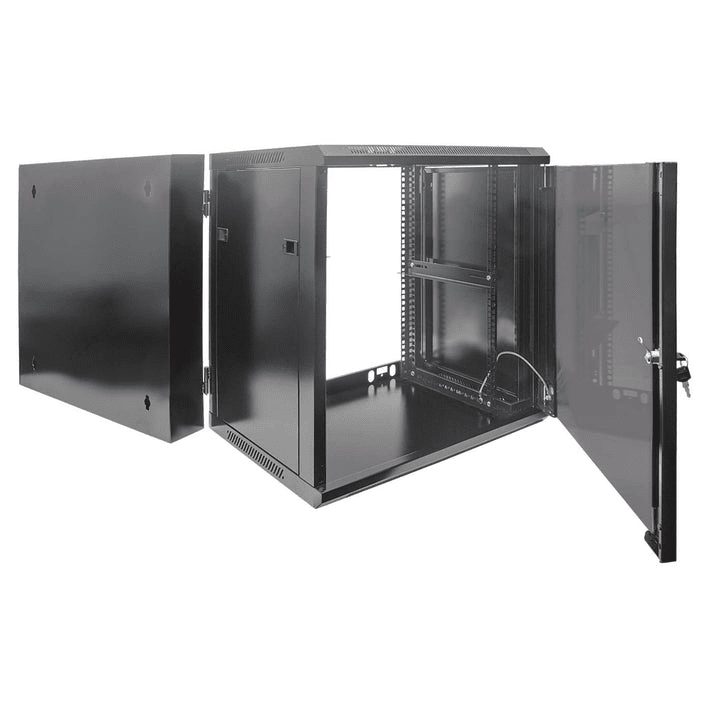

Wall‑mount 19″ equipment cabinet with double‑section design for rear access without full wall removal
-
Maximum static load capacity: 30 kg (66 lbs)
-
Usable depth: 425 mm (16.73″) accommodates standard network equipment and cabling
-

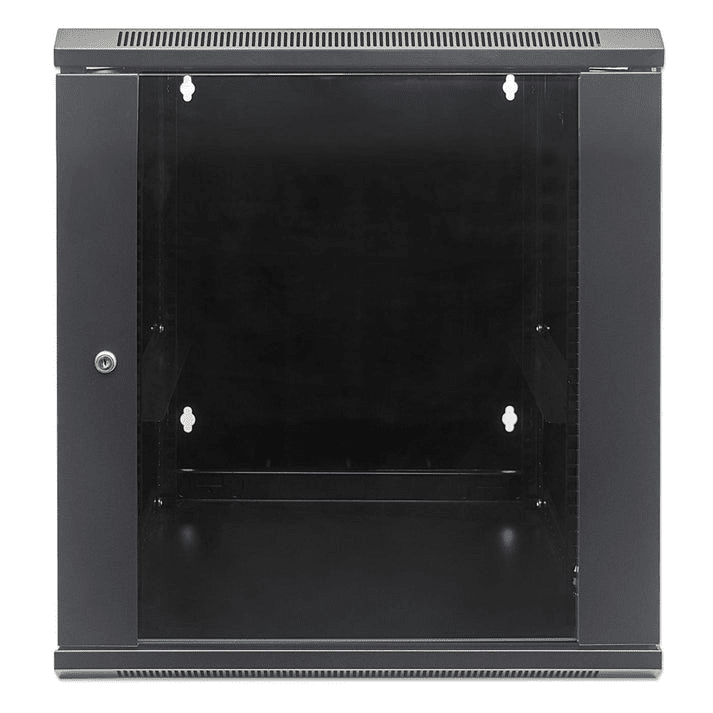

Front tempered‑glass door opens past 180° for ease of access
-

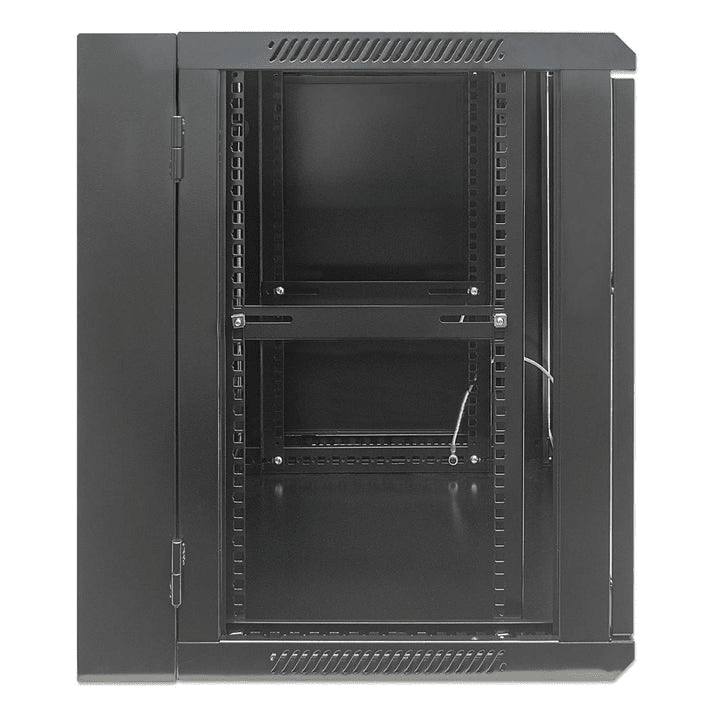

Lockable removable side panels and rear access section for flexible cable management
-
Constructed of cold‑rolled SPCC steel with antistatic powder coating (up to 1.2 mm thick)
-
Dimensions: approx. 635 mm H × 600 mm W × 550 mm D (25″ × 23.62″ × 21.65″)
-
Black finish (RAL 9004)
-
Standard 19″ format; compliant with ANSI/EIA RS‑310‑D, IEC 60297‑2, DIN 41494 Part 1 & 7
-
IP20 rated for internal equipment protection
-
Ships fully assembled for rapid deployment
-
Includes rack screws, cage nuts, keys, and mounting hardware
-
3‑year manufacturer warranty
Specification Table
| Specification |
Value |
| Rack Height |
12 U |
| External Dimensions (H×W×D) |
635 mm × 600 mm × 550 mm (25″ × 23.62″ × 21.65″) |
| Usable Depth |
425 mm (16.73″) |
| Max Load Capacity |
30 kg (66 lbs) |
| Construction Material |
SPCC cold‑rolled steel, antistatic powder coating |
| Finish / Color |
Black (RAL 9004) |
| Access Design |
Double-section rear access; lockable/removable panels |
| Door Type |
Tempered glass front door, opens over 180° |
| Protection Rating |
IP20 |
| Standards Compliance |
ANSI/EIA RS‑310‑D, IEC 60297‑2, DIN 41494 Part 1 & 7 |
| Warranty |
3‑year manufacturer warranty |
Installation / Usage Scenario
This 12U wall‑mount cabinet is ideal for compact installations where floor space is limited, such as network closets, AV control hubs, or utility rooms. For instance, an installer in Tempe could mount switches, patch panels, and a UPS in the cabinet while utilizing the rear hinge section for cable adjustments post-installation—without needing to unmount the unit from the wall. The 425 mm depth ensures ample room for standard 19″ gear, while the fully assembled delivery reduces setup time and labor. The lockable panels and IP20 rating make it a reliable and secure enclosure for sensitive network equipment.
Why Choose Tri‑Tek Electronics?
-
Tri‑Tek Electronics is an authorized distributor of Intellinet network products
-
Convenient Mesa, AZ location for same-day pickup or fast local delivery across Phoenix, Chandler, Tempe, Gilbert, Glendale, and beyond
-
Full factory warranty and professional support from local experts familiar with Arizona installation conditions
-
We assist with cabinet sizing, rack layout planning, accessory selection, and installation guidance
Final Recommendation
If you need a compact, secure, and high‑quality wall‑mounted 12U rack cabinet with double-section rear access, the Intellinet 716277 is an excellent solution. With a professional build, quick deployment, and full accessory support, it’s ideal for low-profile networking projects across the Phoenix metro area—available now from Tri‑Tek Electronics in Mesa, AZ.
