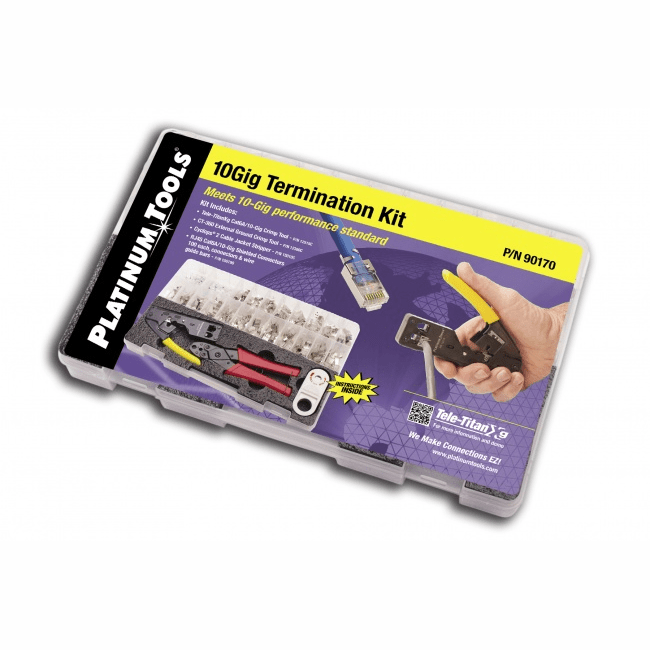

Platinum Tools 90170 10Gig Termination Kit
The Platinum Tools 90170 10Gig Termination Kit is a professional-grade solution designed for installers working with large diameter high-performance Ethernet cables. This comprehensive kit provides the essential tools and connectors required to properly terminate Cat6A, Cat6E, Cat7, and oversized Cat5e/6 industrial Ethernet cables, enabling reliable installations capable of supporting 10 Gigabit network speeds for modern data, voice, video, and PoE infrastructure.
Engineered for field efficiency and precision, the kit includes specialized termination tools and shielded connectors designed to simplify high-performance network installations while maintaining signal integrity and shielding continuity. The 90170 kit is ideal for low voltage installers, IT professionals, AV integrators, and security system technicians who require dependable results in demanding environments such as commercial buildings, data centers, surveillance systems, and structured cabling deployments.
Tri-Tek Electronics is an authorized distributor of Platinum Tools products, ensuring customers receive full manufacturer warranty coverage, factory support, and competitive pricing. Installers and technicians throughout Phoenix, Mesa, Chandler, Tempe, Scottsdale, Glendale, and the surrounding Arizona areas rely on Tri-Tek Electronics for professional networking tools and supplies. Tri-Tek Electronics also maintains a retail location in Mesa, Arizona, providing local installers quick access to the tools and equipment needed for successful installations.

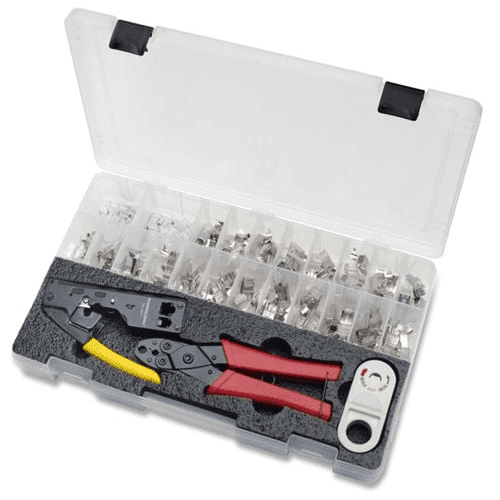

Kit Contents
The Platinum Tools 90170 kit includes the essential components required for professional 10Gig network cable termination:
-
Tele-TitanXg Cat6A / 10Gig Crimp Tool (P/N 12515)
-
RJ45 Cat6A / 10Gig Shielded Connectors – 100 pieces (P/N 106190)
-
Cyclops 2 Cable Jacket Stripper (P/N 15010C)
-
CT-360 External Ground Crimp Tool (P/N 12360C)
Key Features
-
Complete professional termination solution for Cat6A, Cat6E, Cat7, and oversized Cat5e/6 cables
-
Designed to support 10 Gigabit high-speed network infrastructure
-
Includes professional tools and connectors for consistent field installations
-
Tele-TitanXg straight-action crimp tool provides precise vertical crimp force
-
Cyclops 2 cable stripper automatically adjusts to score cable jackets without damaging conductors
-
CT-360 crimp tool provides a secure 360° crimp on shielded connector ground tabs
-
Shielded connectors help maintain signal integrity in high-performance network environments
-
Ideal for commercial structured cabling, AV networks, surveillance systems, and data infrastructure
RJ45 Cat6A / 10Gig Shielded Connector Specifications
| Specification |
Details |
| Connector Type |
Shielded RJ45 |
| Cable Compatibility |
Cat6A, Cat6E, Cat7, oversized Cat5e/6 |
| Maximum Cable Outer Diameter |
8.5 mm (0.335 in) |
| Maximum Conductor Diameter |
1.35 mm (0.053 in) |
| Compliance |
UL Listed |
| Environmental |
RoHS Compliant |
| Quantity Included |
100 connectors |
Cyclops 2 Cable Jacket Stripper Specifications
| Specification |
Details |
| Cable Type |
Shielded and Unshielded Twisted Pair |
| Compatible Jacket Materials |
PVC, Plenum, and similar materials |
| Cable Outer Diameter Range |
0.10 in – 0.43 in (2.5 mm – 11 mm) |
| Blade Type |
Self-adjusting precision scoring blade |
| Design |
Prevents damage to shielding and conductors |
CT-360 External Ground Crimp Tool Specifications
| Specification |
Details |
| Crimp Type |
360° external ground crimp |
| Cable Outer Diameter Range |
0.245 in – 0.335 in (6.2 mm – 8.5 mm) |
| Tool Construction |
All steel frame |
| Finish |
Black oxide corrosion-resistant |
| Handle Type |
Molded comfort grips |
| Operation |
Spring-loaded, non-ratcheted |
Tele-TitanXg Cat6A Crimp Tool Specifications
| Specification |
Details |
| Tool Type |
RJ45 Crimp Tool |
| Application |
Cat6A / 10Gig shielded connectors |
| Crimp Action |
Straight-action vertical crimp |
| Design Benefit |
Consistent crimp height with minimal hand force |
| Intended Use |
Professional structured cabling installations |
Example Installation Scenario
A network installer upgrading a commercial office building or deploying new 10 Gigabit network infrastructure may be installing Cat6A or Cat7 cabling between switches, patch panels, and network equipment. With the Platinum Tools 90170 10Gig Termination Kit, the technician can quickly strip the cable jacket using the Cyclops 2 stripper, arrange the conductors into the shielded RJ45 connector, and complete a precise termination using the Tele-TitanXg crimp tool.
For shielded cabling environments where EMI protection is critical—such as data centers, surveillance systems, or AV distribution networks—the CT-360 ground crimp tool ensures proper grounding of the connector shield, maintaining reliable high-speed network performance.
This streamlined workflow improves installation efficiency while delivering professional-quality terminations.
Why Installers Choose Platinum Tools
-
Designed specifically for modern high-performance Ethernet installations
-
Durable tools built for professional field use
-
Simplifies Cat6A and 10Gig cable termination procedures
-
Helps maintain network reliability and signal integrity
-
Trusted by installers, technicians, and infrastructure professionals
Tri-Tek Electronics proudly supplies Platinum Tools products to installers and technicians across Phoenix, Mesa, Chandler, Tempe, Scottsdale, and Glendale, helping local professionals complete network infrastructure projects with confidence.
