Description

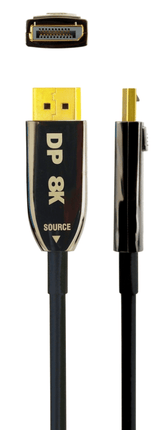

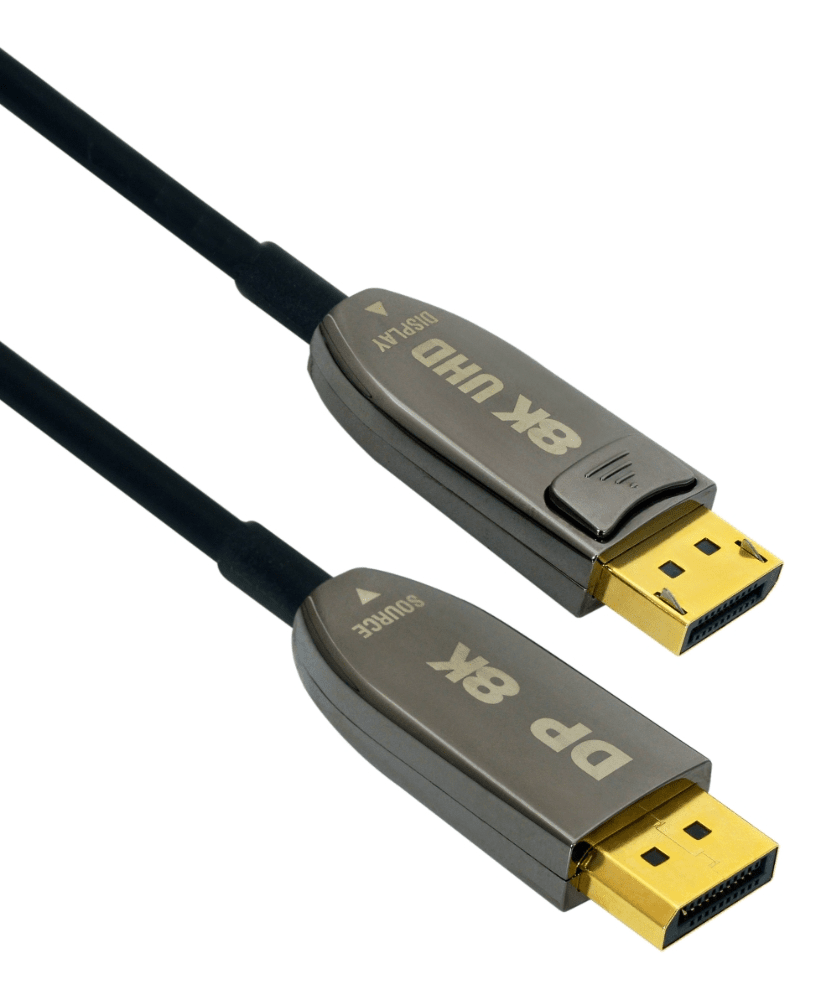

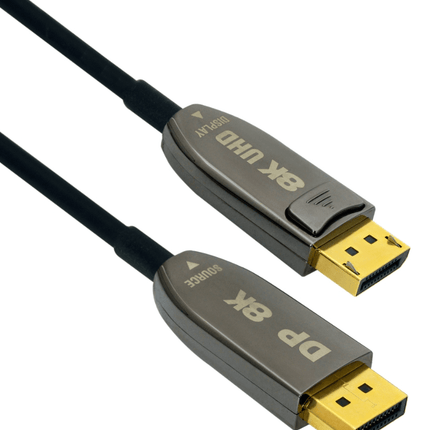

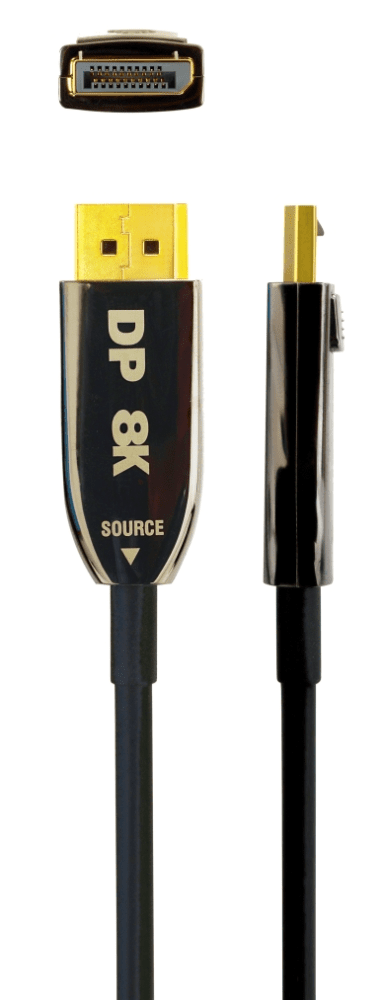

QVS DF8-100 100ft Active DisplayPort 1.4 UltraHD 8K Black Cable with Latches
The QVS DF8-100 is a professional-grade 100-foot Active DisplayPort 1.4 cable engineered to deliver uncompromised UltraHD video and audio performance over extended distances. Utilizing active signal regeneration technology, this cable supports high-bandwidth DisplayPort 1.4 applications including 8K video, high refresh rate displays, digital signage, conference room installations, control rooms, broadcast environments, and professional AV systems. Its integrated active circuitry helps maintain reliable signal integrity where standard passive DisplayPort cables may not provide sufficient performance over long cable runs.
Designed with secure latching DisplayPort connectors, the DF8-100 maintains a stable connection in demanding commercial and professional installations. The cable is directional and incorporates transmitter and receiver technology within the connectors, eliminating the need for external power supplies while supporting advanced DisplayPort 1.4 features including Multi-Stream Transport (MST) and digital audio transmission.
As an authorized distributor of QVS products, Tri-Tek Electronics provides full manufacturer warranty coverage, factory support, and competitive pricing. Customers throughout Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, and Glendale, Arizona rely on Tri-Tek Electronics for professional AV connectivity solutions and expert technical assistance.
Features
• Active DisplayPort 1.4 cable for long-distance signal transmission
• Supports UltraHD 8K resolution up to 7680 x 4320 at 60Hz
• Supports UHD 4K resolution up to 144Hz
• Maximum bandwidth of 32.4Gbps (HBR3)
• Secure latching DisplayPort connectors
• Built-in active signal regeneration technology
• Supports Multi-Stream Transport (MST) daisy chaining
• Supports digital audio transmission
• Directional cable design with integrated transmitter and receiver
• Powered directly from the DisplayPort interface
• HDCP 2.2 compliant
• DPCP compliant
• RoHS 2.0 and REACH compliant
• Ideal for professional AV, digital signage, conference rooms, and control system installations
Specifications
| Specification |
Details |
| Manufacturer |
QVS |
| Part Number |
DF8-100 |
| Cable Type |
Active DisplayPort 1.4 Cable |
| Connector A |
DisplayPort Male |
| Connector B |
DisplayPort Male |
| Connector Style |
Latching Connectors |
| Length |
100 ft (30.5 m) |
| Color |
Black |
| DisplayPort Version |
1.4 |
| Maximum Resolution |
8K UHD (7680 x 4320) @ 60Hz |
| Supported 4K Resolution |
Up to 144Hz |
| Maximum Bandwidth |
32.4Gbps |
| Audio Support |
Yes |
| MST Support |
Yes |
| HDCP Support |
HDCP 2.2 |
| Directional |
Yes |
| Power Source |
Powered by DisplayPort Port |
| Compliance |
DPCP, RoHS 2.0, REACH |
Typical Applications
• Large conference room display systems
• Corporate boardroom AV installations
• Digital signage deployments
• Command and control centers
• Broadcast and production studios
• Educational and training facilities
• Video wall applications
• Long-distance workstation-to-display connections
• Professional gaming and content creation environments
Example Installation Scenario
A systems integrator is installing an 8K-capable digital signage display in a corporate lobby where the media player and control equipment are located in a secure equipment room approximately 100 feet away. The QVS DF8-100 provides a reliable, high-bandwidth DisplayPort connection without requiring external signal boosters or repeaters. The active circuitry helps preserve signal quality across the entire cable run while the latching connectors ensure the connection remains secure in a commercial environment.
