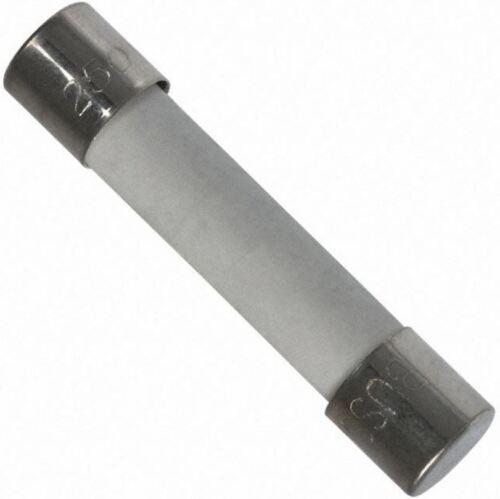

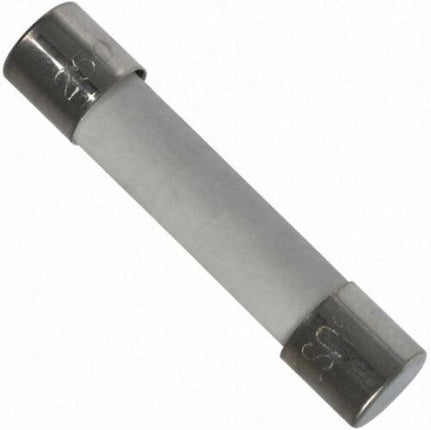

Bussmann ABC-1/2A 1/2 Amp 250V Fast-Acting Ceramic Fuse – Box of 100 (Closeout Special)
Tri-Tek Electronics, an authorized distributor of Bussmann products, is pleased to offer the ABC-1/2A 1/2 Amp 250V Fast-Acting Ceramic Fuse in a box of 100 units as a Closeout Special. This offer is limited to stock on hand.
Product Overview
The Bussmann ABC-1/2A is a 1/2 Amp, 250V fast-acting ceramic fuse designed for reliable overcurrent protection in electronic circuits. Its robust construction and precise performance make it suitable for a variety of applications, including power supplies, industrial equipment, and consumer electronics.
Key Features
-
Current Rating: 1/2 Amp
-
Voltage Rating: 250V AC / 125V DC
-
Interrupting Rating: 35A at 250V AC; 10,000A at 125V AC/DC
-
Construction: Ceramic tube with nickel-plated brass end caps
-
Dimensions: 1/4" x 1-1/4" (6.35mm x 31.75mm)
-
Compliance: UL Listed, CSA Certified, RoHS Compliant
-
Response Time:
-
100% of rated current: 4 hours minimum
-
135% of rated current: 60 minutes maximum
-
200% of rated current: 120 seconds maximum
Applications
Ideal for use in electronic circuits where fast-acting overcurrent protection is essential. Common applications include:
Installation Example
In a typical installation, the ABC-1/2A fuse can be mounted in a standard 1/4" x 1-1/4" fuse holder or clip. For instance, in an industrial control panel, it can protect sensitive components by interrupting the circuit during overcurrent conditions, thereby preventing damage to equipment and ensuring safety.
Closeout Special
This is a Closeout Special, and availability is limited to stock on hand. Don’t miss this opportunity to secure high-quality Bussmann fuses at an exceptional value.
