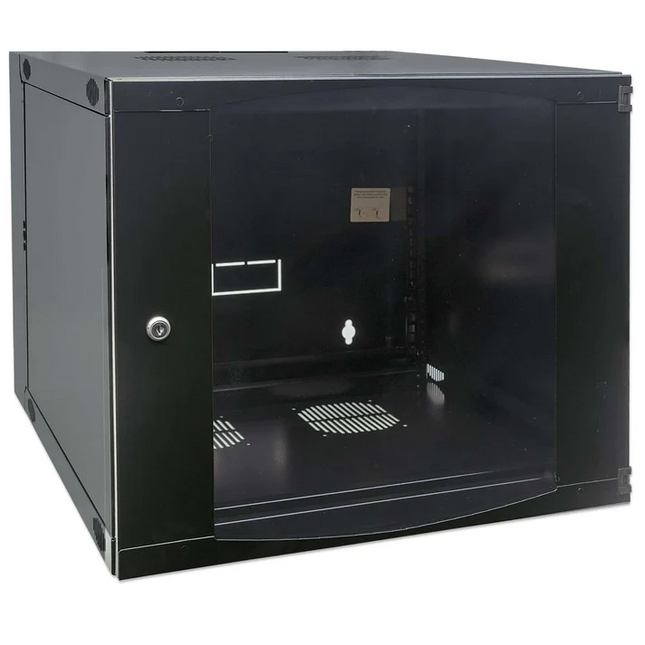

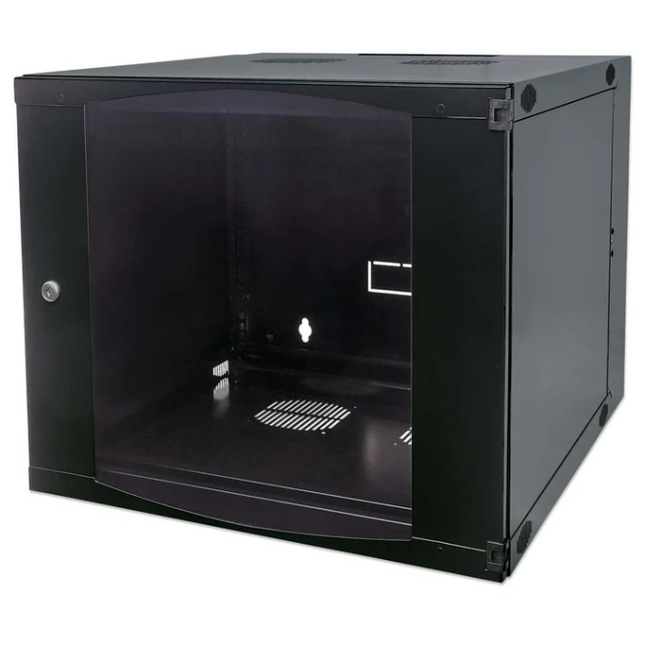

Intellinet 713863 12U 19-Inch Swing-Out Wall Mount Network Cabinet, 23.6" Deep, Lockable Glass Door, Black The Intellinet 713863 12U Swing-Out Wall Mount Network Cabinet provides a secure, space-efficient enclosure for professional network, telecommunications, security and low-voltage installations. Designed for standard 19-inch rackmount equipment, this double-section wall cabinet combines a 12U rack capacity, 23.6-inch overall depth, lockable glass front door and swing-out hinged rear section to simplify equipment installation and ongoing service. The hinged-back design is particularly useful for technicians because it provides convenient rear access to installed equipment and cabling without requiring the entire cabinet to be removed from the wall. Cable entry is available through the rear or top panel, helping installers organize Ethernet, fiber, power and other low-voltage cabling. The cabinet is manufactured from cold-rolled SPCC steel and features a black RAL 9004 finish. It ships flat packed for more efficient transportation and storage. Product Features 12U wall-mount network cabinet Designed for standard 19-inch rackmount equipment Double-section cabinet with swing-out hinged-back design Provides convenient rear access to equipment and cabling Lockable glass front door 4 mm toughened glass door Cold-rolled SPCC steel construction Black RAL 9004 finish 23.6-inch overall cabinet depth Maximum usable device depth up to approximately 18.5 inches Adjustable distance between front and rear mounting rails Cable entry through rear or top panel Maximum static load of 66 lb. / 30 kg Ships flat packed Includes installation hardware and two keys 3-year manufacturer warranty Complies with ANSI/EIA RS-310-D, IEC60297-2, DIN41494 Part 1 and DIN41494 Part 7 Specifications Specification Details Manufacturer Intellinet Network Solutions Manufacturer Part Number 713863 Alphanumeric Part Number INC-WMDF-24-12U Rack Standard 19 inch Rack Height 12U Cabinet Type Swing-Out / Double-Section Wall Mount Overall Height 593 mm / 23.35 in. Overall Width 540 mm / 21.26 in. Overall Depth 600 mm / 23.62 in. Mounting Rail Adjustment 279–359 mm / 10.98–14.13 in. Maximum Usable Device Depth Up to approximately 18.5 in. Maximum Static Load 30 kg / 66 lb. Construction Cold-Rolled SPCC Steel Front Door Lockable Glass Door Color Black RAL 9004 Shipping Configuration Flat Packed Product Net Weight 24.5 kg Product Gross Weight 26.3 kg Packaging Brown Box UPC 766623713863 EAN 0766623713863 Manufacturer Warranty 3 Years Package Contents 2 rail frames Top panel Bottom panel Front panel Back panel Side panels Installation hardware 10 M6 hardware sets 2 keys Ideal for Network and Low-Voltage Installations The Intellinet 713863 is well suited for structured cabling, Ethernet networks, IP surveillance systems, telecommunications equipment and other low-voltage installations where floor space is limited. Its 12U capacity can accommodate compatible 19-inch equipment such as network switches, patch panels, fiber enclosures, cable management hardware and other rackmount components. For example, a technician installing a small-business network can wall mount the cabinet in an equipment room and use the rack space for a patch panel, Ethernet or PoE switch, cable management and related network hardware. The swing-out rear section provides access behind the equipment, making cable termination, troubleshooting and future system changes significantly easier than with a conventional fixed wall cabinet. Professional Installation Advantages For network installers and technicians, rear accessibility can be one of the most useful features of a wall-mounted rack enclosure. Once conventional cabinets are populated with equipment, reaching connectors and cabling at the rear can become difficult. The Intellinet 713863 addresses this issue with its hinged-back construction, allowing the equipment section to swing away from the wall for improved service access. The flat-packed design also makes the cabinet easier to transport and store before installation, while its lockable glass front door helps protect network equipment against unauthorized access while allowing technicians to visually inspect installed components. Authorized Intellinet Distributor in Arizona Tri-Tek Electronics is an authorized distributor of Intellinet Network Solutions products, helping ensure customers receive genuine Intellinet equipment with full manufacturer warranty coverage, competitive pricing and factory support. Tri-Tek Electronics also maintains a retail location in Mesa, Arizona, providing a convenient local source for network cabinets, racks, structured cabling products and low-voltage installation supplies for customers throughout Mesa, Phoenix, Chandler, Tempe, Gilbert, Scottsdale, Glendale and surrounding Arizona communities.
