Toggle Switches - Standard
Philmore Mfg. ON-OFF, Bat Handle Toggle Switch, SPST
This particular product is the Philmore Mfg. 30-219 SPST toggle switch, equipped with a standard-sized bat handle and designed for ON-OFF function. It has a current rating of 3A at 125V AC and 1A at 250V AC. The initial contact resistance is 5 Meg ohm (maximum), and the insulation resistance is 100 Meg ohm (minimum) at 500V DC. With a dielectric strength of 1000V AC 50/60 Hz for 1 minute, this switch features contact and terminal materials made of nickel-plated brass, and a Solder-type terminal. Its action is ON-OFF, with an actuator and a 0.50" mounting hole.
$2.69
Philmore Mfg. ON-OFF, Ball Handle Toggle Switch, SPST
The Philmore Mfg. 30-1720 model offers the ON-OFF feature with a ball handle toggle switch and SPST configuration. This switch has a current rating of 6A @ 125V AC and 3A @ 250V AC, while its initial contact resistance is 50 Meg ohm (Max.). It also boasts a high insulation resistance of 100 Meg ohm (Min.) @ 500V DC and dielectric strength of 1000V AC 50/60 Hz for 1 minute. The contact material is made of brass and the wire terminals are made of brass with a bright nickel plating. These terminals are designed for stripped and tinned wire leads and can be easily mounted with its 0.50" metal mounting hole.
$4.29

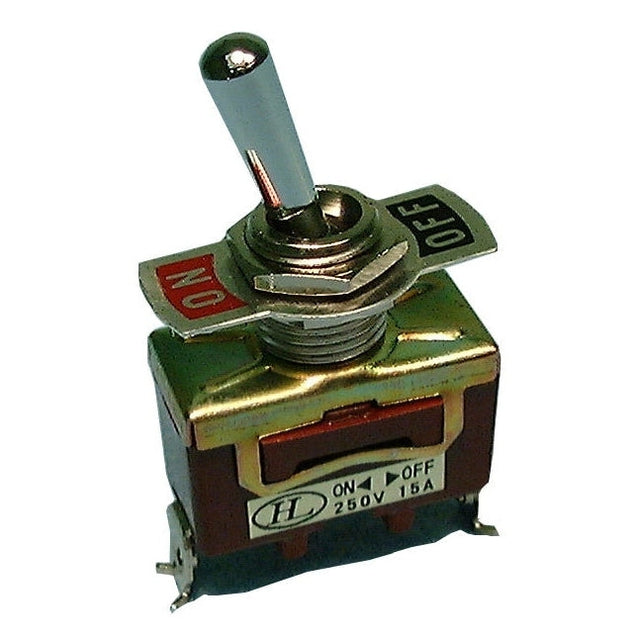

Philmore Mfg. ON-OFF, Bat Handle Toggle Switch, SPST
The Philmore Mfg. 30-067 model is a Bat Handle Toggle Switch, SPST with a current rating of 15A @ 125V AC and 10A @ 277V AC. It features a low initial contact resistance of 50m Ohm (Max) and a high insulation resistance of 100 Meg ohm (Min) @ 500V DC. Its dielectric strength is 1000V AC 50/60 Hz for 1 minute. The contact material is brass with a silver plate, and the terminal material is also brass. It uses a screw terminal type and has an ON-OFF actuator with a metal mounting hole of 0.50".
$4.29
