Toggle Switches - Heavy Duty

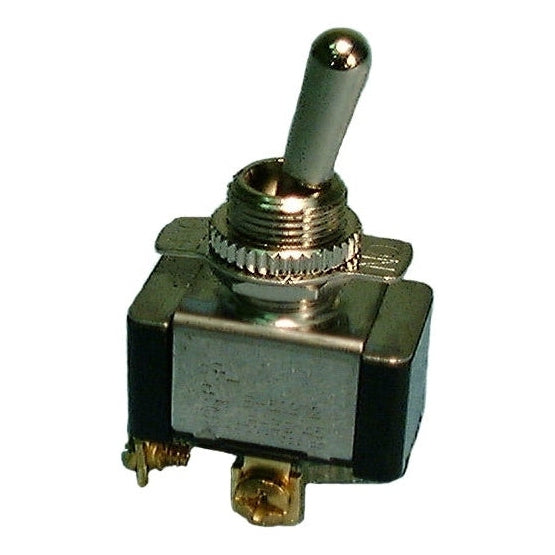

Philmore Mfg. (ON)-OFF, H.D. Bat Handle Toggle Switch, SPST
Philmore 30-076 H.D. Bat Handle Toggle Switch, SPST Overview: Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. The Philmore 30-076 Heavy Duty Bat Handle Toggle Switch is a Single Pole Single Throw (SPST) switch designed for durability and reliable performance. It features a straightforward (ON)-OFF operation, making it suitable for a wide range of electrical applications. Features and Specifications: Type: Heavy Duty Bat Handle Toggle Switch Operation: (ON)-OFF Current Rating: 20A @ 125V AC, 10A @ 277V AC Horsepower Rating: 3/4 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass - Tin Dipped Terminal Type: Solder Actuator: Metal Mounting Hole: 0.50" Example Installation Scenario: This toggle switch is ideal for use in heavy-duty industrial machines where a reliable (ON)-OFF control is essential. It can be installed in control panels, machinery housings, or any other equipment requiring a robust toggle switch with a clear (ON)-OFF action. The brass terminals ensure secure solder connections, and the metal actuator provides a tactile and sturdy switch operation. Value for Installers and Technicians: For installers and technicians, the Philmore 30-076 switch offers reliability and ease of installation. The clear ON-OFF operation ensures straightforward usage, and its high current rating allows it to handle demanding applications. The switch's robust construction and high-quality materials ensure long-term durability and performance.
$6.59
Philmore Mfg. ON-OFF, Heavy Duty Bat Handle Toggle Switch, DPST
Designed for heavy-duty use, the Philmore Mfg. 30-345 toggle switch is a reliable choice for control over a wide range of electrical currents. With a current rating of 20A @ 125V AC and 10A @ 277V AC, this DPST switch can handle up to 1-1/2 horsepower at 125-250V AC. Its brass contact material with bright nickel plate offers a low initial contact resistance of 50 Meg ohm (Max) and high insulation resistance of 100 Meg ohm (Min) @ 500V DC. Additionally, the switch is capable of withstanding a dielectric strength of 1000V AC 50/60Hz for 1 minute, ensuring safe and efficient operation. The body material is sturdy and the actuator is made of metal, providing durability and longevity. The switch can easily be mounted with its 0.50" mounting hole, making it a practical and versatile choice for various applications
$5.79
Philmore Mfg. ON-ON, H.D. Bat Handle Toggle Switch, SPDT
The Philmore Mfg. 30-013 ON-ON H.D. Bat Handle Toggle Switch has a current rating of 20A at 125V AC, 10A at 277V AC, and 3/4 HP at 125-250V AC. The initial contact resistance is a maximum of 50m Ohm, with a minimum insulation resistance of 100 Meg ohm at 500V DC. It has a dielectric strength of 1000V AC at 50/60 Hz for 1 minute. The switch's contact material is brass with a bright nickel plate, while the terminal material is also brass. It features a screw action ON-ON actuator and a metal mounting hole with a diameter of 0.50".
$5.09
Philmore Mfg. (ON)-OFF-(ON), H.D. Bat Handle Toggle Switch, SPDT
Philmore 30-055 H.D. Bat Handle Toggle Switch, SPDT Overview: Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. The Philmore 30-055 Heavy Duty Bat Handle Toggle Switch is a Single Pole Double Throw (SPDT) switch designed for durability and reliable performance. It features a versatile (ON)-OFF-(ON) operation, making it suitable for a wide range of electrical applications. Features and Specifications: Type: Heavy Duty Bat Handle Toggle Switch Operation: (ON)-OFF-(ON) Current Rating: 20A @ 125V AC, 10A @ 277V AC Horsepower Rating: 3/4 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass Terminal Type: Screw Actuator: Metal Mounting Hole: 0.50" Example Installation Scenario: This toggle switch is ideal for use in industrial machinery where a reliable (ON)-OFF-(ON) control is essential. It can be installed in control panels, machinery housings, or other equipment requiring a robust toggle switch with a flexible (ON)-OFF-(ON) action. The brass screw terminals ensure secure and easy connections, and the metal actuator provides a tactile and sturdy switch operation. Value for Installers and Technicians: For installers and technicians, the Philmore 30-055 switch offers reliability and ease of installation. The clear (ON)-OFF-(ON) operation ensures straightforward usage, and its high current rating allows it to handle demanding applications. The switch's robust construction and high-quality materials ensure long-term durability and performance.
$5.99
Philmore Mfg. (ON)-OFF-(ON), H.D. Bat Handle Toggle Switch, DPDT
Philmore 30-050 H.D. Bat Handle Toggle Switch, DPDT Overview: Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. The Philmore 30-050 Heavy Duty Bat Handle Toggle Switch is a Double Pole Double Throw (DPDT) switch designed for durability and reliable performance. It features a versatile (ON)-OFF-(ON) operation, making it suitable for a wide range of electrical applications. Features and Specifications: Type: Heavy Duty Bat Handle Toggle Switch Operation: (ON)-OFF-(ON) Current Rating: 20A @ 125V AC, 10A @ 277V AC Horsepower Rating: 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 50 mΩ (Max) Insulation Resistance: 100 MΩ (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass Terminal Type: Screw Actuator: Metal Mounting Hole: 0.50" Example Installation Scenario: This toggle switch is ideal for use in industrial machinery where a reliable (ON)-OFF-(ON) control is essential. It can be installed in control panels, machinery housings, or other equipment requiring a robust toggle switch with a flexible (ON)-OFF-(ON) action. The brass screw terminals ensure secure and easy connections, and the metal actuator provides a tactile and sturdy switch operation. Value for Installers and Technicians: For installers and technicians, the Philmore 30-050 switch offers reliability and ease of installation. The clear (ON)-OFF-(ON) operation ensures straightforward usage, and its high current rating allows it to handle demanding applications. The switch's robust construction and high-quality materials ensure long-term durability and performance.
$9.59
Philmore Mfg. ON-OFF, Heavy Duty Bat Handle Toggle Switch, SPST
Philmore Manufacturing SKU 30-305, ON-OFF, Heavy Duty Bat Handle Toggle Switch, SPST, Rated for: 20A @125V AC, 10A @ 277V AC, and 3/4 HP @ 125-250V AC. Features an initial contact resistance of 50 Meg ohm (Max), insulation resistance of 100 Meg ohm (Min) @ 500V DC, and dielectric strength of 1000V AC 50/60Hz for 1 minute. Made of brass with a bright nickel plate, and includes .250" quick connect terminals. The action is ON-OFF with a metal actuator and a mounting hole of 0.500".
$4.49
Philmore Mfg. ON-OFF-ON, H.D. Bat Handle Toggle Switch, DPDT
Philmore Mfg. 30-325 ON-OFF-ON H.D. Bat Handle Toggle Switch Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage and best pricing and factory support. The Philmore Mfg. 30-325 is a high-quality, heavy-duty bat handle toggle switch, designed for reliable performance in demanding applications. This DPDT switch features robust construction with a brass contact material and bright nickel plating, making it ideal for industrial and commercial use. Features and Specifications Switch Type: DPDT (Double Pole Double Throw) Current Rating: 20A at 125V AC 10A at 277V AC 1-1/2 HP at 125-250V AC Initial Contact Resistance: 50m Ohm (maximum) Insulation Resistance: 100 Meg ohm (minimum) at 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass with bright nickel plating Terminal Material: Brass Terminals: .250" quick connect Mounting Hole: 0.50" Example Installation Scenario This toggle switch is perfect for industrial control panels where a durable and reliable switching solution is required. For instance, it can be used to control motorized equipment in a manufacturing plant, providing robust handling of high currents and ensuring safety and reliability in operation. Why Choose the Philmore Mfg. 30-325 Toggle Switch? Reliable performance under high current loads Durable construction with high-quality materials Easy installation with quick connect terminals Versatile usage in various industrial and commercial applications
$7.29

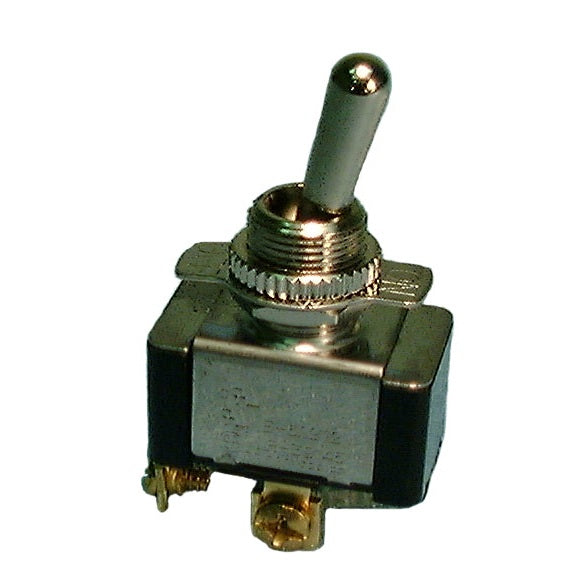

Philmore Mfg. ON-OFF, HD Bat Handle Toggle Switch, SPST
Introducing ON-OFF Bat Handle Toggle Switch, SPST by Philmore Mfg. This high-definition switch boasts a current rating of 20A@125V AC and 10A@277V AC, making it a top choice for industrial use. With 3/4 HP capacity at 125/250V AC and initial contact resistance of 50 Meg ohm, it guarantees efficient performance and improved safety measures. The switch also features a dielectric strength of 1000V AC 50/60 Hz for 1 minute, ensuring reliable insulation. Made of brass, the terminals are designed to provide secure connections and long-lasting durability. The 0.50" mounting hole allows for easy installation. Upgrade your electrical system with ON-OFF Bat Handle Toggle Switch, SPST.
$4.39
Philmore Mfg. ON-OFF, H.D. Bat Handle Toggle Switch, DPST
Philmore 30-312 H.D. Bat Handle Toggle Switch, DPST Overview: Tri-Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. The Philmore 30-312 Heavy Duty Bat Handle Toggle Switch is a Double Pole Single Throw (DPST) switch designed for high durability and reliable performance. It features a straightforward ON-OFF operation, making it suitable for a wide range of heavy-duty electrical applications. Features and Specifications: Type: Heavy Duty Bat Handle Toggle Switch Operation: ON-OFF Current Rating: 20A @ 125V AC, 10A @ 277V AC Horsepower Rating: 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass Terminal Type: Screw Actuator: Metal Mounting Hole: 0.50" Example Installation Scenario: This toggle switch is ideal for use in industrial machinery and equipment where a reliable ON-OFF control is essential. It can be installed in control panels, machinery housings, or other equipment requiring a robust toggle switch with a clear ON-OFF action. The brass screw terminals ensure secure and easy connections, and the metal actuator provides a tactile and sturdy switch operation. Value for Installers and Technicians: For installers and technicians, the Philmore 30-312 switch offers reliability and ease of installation. The clear ON-OFF operation ensures straightforward usage, and its high current rating allows it to handle demanding applications. The switch's robust construction and high-quality materials ensure long-term durability and performance.
$6.89
