Multi-Contact Connectors

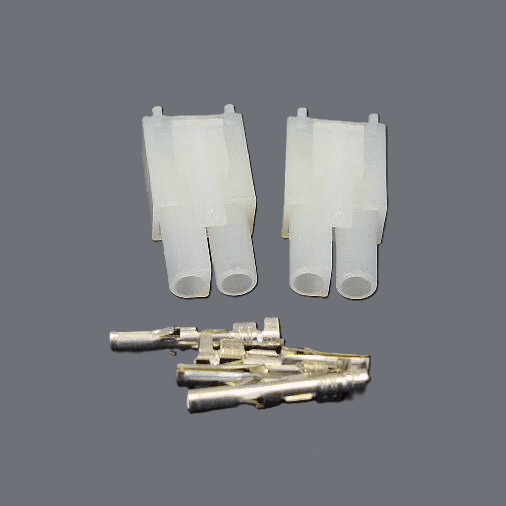

Philmore 61-342 3191 International .093" Panel Mount Locking Connector-2 PIN Receptacle This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 2-circuit Panel Mount Receptacle Housing Pins supplies with terminals Pack of 2 pieces 600V @ 12A maximum current per circuit Dimensions: .56" W x .30"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

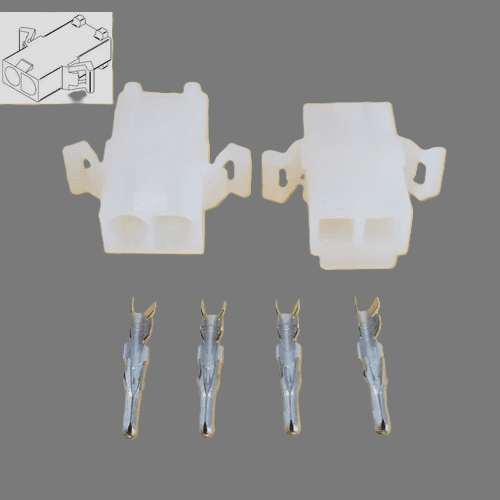

Philmore 61-322 3191 International .093" Panel Mount Locking Connector-2 PIN Plug This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 2-circuit Panel Mount Housing with Plugs Pins supplies with terminals Pack of 2 pieces 600V @ 12A maximum current Dimensions: .58" W x .32"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-323 3191 International .093" Panel Mount Locking Connector-3 PIN Plug This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 3-circuit Panel Mount Housing with Plugs Pins supplies with terminals Pack of 2 pieces 600V @ 11A maximum current per circuit Dimensions: .85" W x .32"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-343 3191 International .093" Panel Mount Locking Connector-3 PIN Receptacle This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 3-circuit Panel Mount Receptacle Housing Pins supplies with terminals Pack of 2 pieces 600V @ 11A maximum current per circuit Dimensions: .83" W x .30"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-344 3191 International .093" Panel Mount Locking Connector-4 PIN Receptacle This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 4-circuit Single Row Panel Mount Receptacle Housing Pins supplies with terminals Pack of 2 pieces 600V @ 9A maximum current per circuit Dimensions: 1.09" W x .30"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-324 3191 International .093" Panel Mount Locking Connector-4 PIN Plug This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 4-circuit Panel Mount Housing with Plugs Pins supplies with terminals Pack of 2 pieces 600V @ 9A maximum current per circuit Dimensions: 1.1" W x .32"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-346 3191 International .093" Panel Mount Locking Connector-6 PIN Receptacle This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 6-circuit 2-row Panel Mount Receptacle Housing Pins supplies with terminals Pack of 2 pieces 600V @ 9A maximum current per circuit Dimensions: .83" W x .56"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-326 3191 International .093" Panel Mount Locking Connector-6 PIN Plug This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 6-circuit, 2 rows of 3 Panel Mount Housing with Plugs Pins supplies with terminals Pack of 2 pieces 600V @ 9A maximum current per circuit Dimensions: .85" W x .59"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-335 3191 International .093" Panel Mount Locking Connector-15 PIN Plug This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 15-circuit 3-rows Panel Mount Housing with Plugs Pins supplies with terminals Pack of 2 pieces 600V @ 6A maximum current per circuit Dimensions: .1.39" W x .87"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

Philmore 61-355 3191 International .093" Panel Mount Locking Connector-15 PIN Receptacle This series is similar to regular .093" series connectors but features positive locks and isolated terminals. 15-circuit 3-row Panel Mount Receptacle Housing Pins supplies with terminals Pack of 2 pieces 600V @ 6A maximum current per circuit Dimensions: 1.37" W x .83"H x 1.18"L Images are for example reference only. Actual product may be different depending on number of circuits.

Read more less

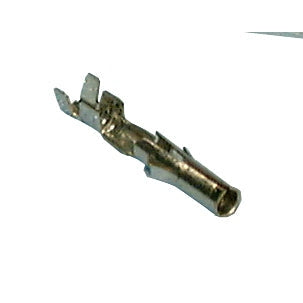

Philmore 61‑292 — Female Sockets 24‑20 AWG for .093″ Power Connector Housings (Pack of 50) Overview The Philmore 61‑292 is a set of 50 female crimp sockets designed for use with .093-inch series power connector housings. These high-quality sockets accept 24–20 AWG wire sizes and are ideal for creating secure, removable connections in power and signal wiring assemblies. Designed to mate with compatible male pins in the Philmore “61” series, these terminals are an essential component in many modular connector configurations. Tri‑Tek Electronics is an authorized distributor of Philmore products, ensuring full manufacturer warranty coverage, best pricing, and factory support. Local customers in Mesa, AZ — and the greater Phoenix, Chandler, Gilbert, Scottsdale, and Tempe areas — benefit from expert support and convenient local availability. Key Features & Specifications Includes 50 female crimp sockets per pack Designed for use with .093″ power connector housings (Philmore 61 series) Compatible wire gauge: 24 to 20 AWG High-conductivity metal contacts, typically phosphor bronze or copper alloy Plated for corrosion resistance and conductivity Rated for up to 12 A, 250 V when used with proper housings Designed for press-fit or snap-in insertion into .093 series housings Mates with male pins such as Philmore 61‑280, 61‑282, and others Durable and reusable when paired with compatible extraction tools Application & Installation Notes The 61‑292 female sockets are commonly used in electronics, custom cable assemblies, industrial control panels, lighting systems, and automotive electrical systems where modular and serviceable wiring connections are required. Installation Process: Strip the wire end (24–20 AWG) to the appropriate length. Crimp the socket onto the wire using a suitable crimping tool. Insert the crimped contact into a compatible .093 housing until it locks in place. Use an extraction tool if removal is needed. Example Use Scenario An electronics technician creating a power harness for an LED driver may select Philmore .093 series connectors for their robust current handling and modularity. Using 61‑292 female sockets with a 5-circuit housing, the technician can easily create a plug-in solution for power and control lines, enabling quick servicing or upgrades in the field. Why Choose This Product? Ideal for installers and technicians requiring modular, secure connections Compatible with a wide range of Philmore housings and pin styles Cost-effective pack size for bench stock or production Trusted quality from Philmore, supported by Tri-Tek Electronics in Mesa, AZ Suitable for industrial, hobbyist, and professional use

Read more less

Philmore 61‑282 — Male Pin for .093″ Power Connector Housings (Bag of 50) Overview The Philmore 61‑282 is a bag of 50 male crimp pins designed for use with .093-inch power connector housings. These crimp pins are engineered to mate with corresponding female sockets in compatible Philmore “61” series connectors, providing robust and modular power connections suitable for a variety of electrical applications. Tri‑Tek Electronics is an authorized distributor for Philmore products, offering full manufacturer warranty coverage, factory-direct support, and fast local availability in Mesa, AZ for customers across Phoenix, Chandler, Gilbert, Tempe, and surrounding areas. Key Features & Specifications Quantity: 50 male crimp pins per bag Designed for .093″ Philmore power connector housings Compatible with matching female sockets such as Philmore 61-292 Crimp-type terminal — allows for strong mechanical and electrical connection Typically used with 24–20 AWG wire in .093" connector systems Rated for up to 12 A, 250 V (when used in appropriate housing) Made from durable, conductive metal with corrosion-resistant plating Suitable for use in free-hanging or panel-mount plug-style housings Precision-fit for snap-in placement within the housing body Application & Installation Notes Philmore 61-282 pins are used widely in wiring harnesses, equipment panels, LED installations, and other applications where secure, removable power connections are needed. The modular nature of these pins allows technicians and installers to configure custom connectors tailored to specific system requirements. Installation Steps: Strip the wire end to the proper length for crimping. Crimp the 61-282 pin to the conductor using a high-quality crimp tool. Insert the crimped pin into the appropriate .093" connector housing until it locks in place. Pair with female sockets and housings for a complete connector assembly. For maintenance or rework, use an appropriate pin extraction tool. These pins allow for fast production of custom cable assemblies and quick field servicing by simply disconnecting and replacing damaged or reconfigured segments. Use Example A technician assembling a multi-pin power connector for an industrial LED controller would select a 6-position .093" plug housing and install six 61-282 male pins onto power and signal wires. The connector mates with a corresponding female housing equipped with 61-292 sockets, enabling fast and repeatable module installations and service replacements. Why Choose This Product? Provides dependable, field-serviceable modular wiring connections Ideal for power distribution in electronics, lighting, and control systems Compatible across the Philmore .093 connector family Conveniently packaged in a 50-piece bag for stockroom or bench use Backed by Tri-Tek Electronics’ factory-authorized support and local expertise

Read more less
