Inline Video and RF Adaptors

Pan Pacific AD-DVIF-VGAM DVI I-Analog/Digital Receptacle to VGA Plug Inline Adaptor The Pan Pacific AD-DVIF-VGAM is a high-quality DVI-I (Analog/Digital) Receptacle to VGA Plug Inline Adapter, designed for converting DVI-I signals to VGA. This versatile adapter ensures compatibility between modern digital devices and older VGA-based monitors, projectors, or display systems. Whether you're working in an IT environment, doing A/V installations, or need a simple solution for home office setups, this adapter provides reliable performance and ease of use. The adapter is ideal for connecting DVI-I sources such as desktop computers, laptops, or media players to VGA displays. It’s also highly durable, ensuring long-term use in both commercial and residential installations. Features: DVI-I to VGA conversion: Supports both analog and digital signals, allowing seamless connectivity between DVI-I sources and VGA displays. Compact design: Lightweight and easy to install, perfect for on-the-go use or permanent setups. High signal quality: Ensures clear video transmission without degradation of image quality. Plug-and-play: No additional drivers or software are needed for installation. Durable construction: Built to withstand frequent connections and disconnections. Specifications: Connector 1: DVI-I (24+5 pin) Female Receptacle Connector 2: VGA Male Plug Compatibility: Supports devices with DVI-I output and displays with VGA input Resolution: Supports up to 1080p depending on the source device and display capabilities Color: Black Dimensions: 1.75" x 1" x 0.5" Installation Scenario: An installer working on a conference room setup may use the Pan Pacific AD-DVIF-VGAM adapter to connect a modern DVI-I equipped laptop to an older VGA projector. This eliminates the need to replace the projector, saving costs while maintaining functionality. The adapter is ideal for field technicians who need quick, reliable solutions for legacy display connections in office or educational environments. Why Choose the Pan Pacific AD-DVIF-VGAM? Cost-effective solution for connecting DVI-I devices to VGA displays. Perfect for technicians and installers needing dependable connectivity in various setups. Backed by Tri-Tek Electronics, ensuring full manufacturer warranty coverage, best pricing, and factory support. Visit our Mesa, AZ retail location or contact us online for any questions or additional assistance.

Read more less

Pan Pacific RFA-8482 High-Quality SMA Male to TNC Female Adapter The Pan Pacific RFA-8482 is a precision-engineered adapter designed to connect an SMA male connector to a TNC female connector. This high-quality RF adapter is ideal for use in various RF, microwave, and wireless applications where reliable signal transmission and conversion between different connector types are required. Manufactured with premium materials, the RFA-8482 ensures low signal loss, durability, and excellent performance in both indoor and outdoor installations. Key Features: Connector Types: SMA male to TNC female High Durability: Built with corrosion-resistant materials for long-term performance Low Signal Loss: Ensures optimal signal integrity with minimal loss Versatile Applications: Suitable for RF communication systems, antennas, coaxial cables, and testing environments Compact Design: Allows for easy integration into existing systems without adding bulk Specifications: Impedance: 50 Ohms Frequency Range: DC to 11 GHz Material: Nickel-plated brass body with gold-plated contacts Operating Temperature: -55°C to +165°C VSWR: ≤ 1.3 RoHS Compliant: Yes Example Installation Scenario: This adapter is commonly used by RF technicians and wireless installers who need to interface devices with SMA connectors to systems with TNC connectors, such as connecting a high-frequency antenna to a test apparatus or RF communication system. The RFA-8482 is perfect for use in lab environments, field installations, or testing setups where connector adaptability is essential. Why Choose the Pan Pacific RFA-8482? Durability: Ensures long-lasting use in a variety of environments. Reliability: Delivers consistent performance with minimal signal loss. Versatility: Ideal for both professional technicians and hobbyists needing high-quality RF connectivity solutions. Tri-Tek Electronics is an authorized distributor of Pan Pacific products, ensuring full manufacturer warranty coverage and the best pricing and factory support. Visit our retail location in Mesa, AZ or order online for local Arizona service.

Read more less

Pan Pacific RPA-2462P Reverse Polarity SMA RG-58 Crimp Jack The Pan Pacific RPA-2462P is a Reverse Polarity SMA (RP-SMA) Crimp Jack designed specifically for RG58/U coaxial cable. This connector features a male pin and is widely used in various RF communication applications. The RP-SMA interface is essential in wireless systems such as Wi-Fi networks, GPS, and other wireless devices, where a non-standard polarity configuration is needed. Key Features: Connector Type: RP-SMA Crimp Jack Cable Type: RG58/U Pin: Male Impedance: 50 Ohms, suitable for RF applications Frequency Range: Up to 6 GHz, supporting Wi-Fi, GPS, and RF communication systems Material: Nickel-plated brass for durability, gold-plated center pin for better conductivity Dielectric: PTFE insulator for stable performance across a wide temperature range Application Examples: This connector is perfect for RF applications where reverse polarity is required. It is commonly used in the following scenarios: Wi-Fi Routers and Antennas: For connecting antennas to routers or access points in wireless networks. GPS Systems: For automotive or marine GPS antennas. RF Communication Equipment: Used in two-way radios, cellular boosters, and surveillance systems requiring secure RF transmission. Installation Process: Prepare the RG58/U Cable: Strip the outer jacket to expose the center conductor. Crimp the Connector: Insert the conductor into the male pin and use a crimp tool to secure the jack onto the cable. Connect to RP-SMA Plug: Ensure proper alignment with the mating connector for a stable and secure connection. Why Choose Tri-Tek Electronics: Authorized Distributor: Full manufacturer warranty and technical support guaranteed. Local Service: Visit our Mesa, AZ location for expert assistance and immediate availability. Reliable Pricing: Get competitive pricing and the best factory support for all your installation needs.

Read more less

Pan Pacific SMA-2717P, SMA Straight Crimp Jack for RG-316 and RG-174 The Pan Pacific SMA-2717P is a high-performance SMA straight crimp jack designed for use with RG-316 and RG-174 coaxial cables. Engineered for demanding RF and microwave applications, this connector ensures stable, low-loss connections, making it ideal for wireless communication systems, antennas, and test equipment. Its durable construction, featuring a gold-plated center contact and nickel-plated brass body, provides excellent conductivity and corrosion resistance, ensuring reliable long-term performance. The SMA-2717P crimp jack is designed for quick and secure crimp installation, offering installers and technicians a dependable solution for high-frequency applications requiring precise, compact connections. Key Features: Connector Type: SMA straight crimp jack (female) Cable Compatibility: RG-316 and RG-174 coaxial cables Gold-Plated Center Pin: Ensures excellent conductivity and low signal loss Nickel-Plated Brass Body: Provides corrosion resistance and durability Compact Design: Perfect for installations with limited space Wide Frequency Range: Suitable for RF and microwave applications up to 18 GHz Secure Crimp Connection: Guarantees stable and long-lasting performance Specifications: Impedance: 50 Ohms Frequency Range: DC to 18 GHz VSWR: 1.3:1 (typical) Center Contact Resistance: ≤ 3 mΩ Outer Contact Resistance: ≤ 2 mΩ Insulation Resistance: ≥ 5,000 MΩ Temperature Range: -65°C to +165°C Body Finish: Nickel-plated brass Center Pin Finish: Gold-plated Example Installation Scenario: An installer working on a wireless network system might use the Pan Pacific SMA-2717P to connect RG-316 or RG-174 cables to antenna systems or communication devices. The jack provides a secure and reliable connection, ensuring high signal integrity over long distances. The compact design of the SMA-2717P makes it ideal for installations where space is limited, such as in densely packed equipment enclosures or mobile communication devices. Benefits for Installers and Technicians: Efficient Installation: The crimp design makes installation fast and secure, reducing the risk of loose connections. Superior Signal Quality: Gold-plated contacts minimize signal loss, making this connector suitable for high-frequency applications. Durability: The nickel-plated brass body is corrosion-resistant, ensuring a long-lasting, reliable connection even in harsh environments. Tri-Tek Electronics is an authorized distributor of Pan Pacific products, offering the SMA-2717P with a full manufacturer warranty. We provide the best pricing, factory support, and expert service from our retail location in Mesa, AZ.

Read more less

Pan Pacific BNC-3306-75 BNC Plug-Jack 75 Ohm Right Angle Adapter The Pan Pacific BNC-3306-75 is a high-quality right-angle adapter designed to connect BNC plugs to jacks in 75-ohm systems. Its right-angle configuration is ideal for installations where space is limited or where cable routing requires a 90-degree turn. Features: 75 Ohm Impedance: Ensures optimal performance in video and RF applications. Right-Angle Design: Facilitates connections in tight spaces, reducing strain on cables. Durable Construction: Built to withstand regular use in professional settings. Specifications: Part Number: BNC-3306-75 Impedance: 75 Ohms Orientation: Right Angle Connector Type: BNC Plug to BNC Jack Installation Example: In a broadcast studio, space behind equipment racks is often limited. Utilizing the BNC-3306-75 adapter allows technicians to connect video equipment without bending cables excessively, preserving signal integrity and prolonging cable life. Tri-Tek Electronics, an authorized distributor of Pan Pacific products, offers the BNC-3306-75 adapter, ensuring full manufacturer warranty coverage, competitive pricing, and direct factory support.

Read more less

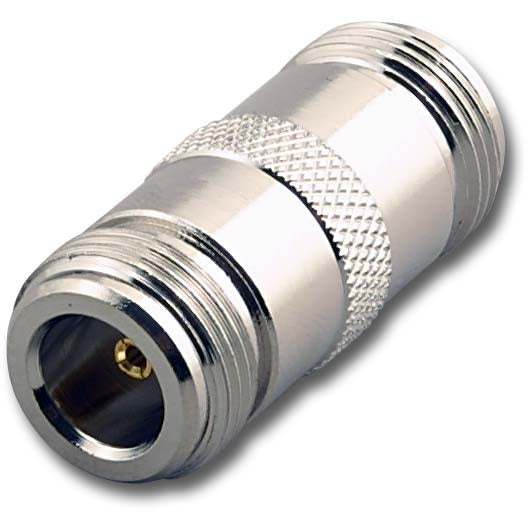

Pan Pacific RFN-7650 N-Type Female to Female Inline Splice Connector The Pan Pacific RFN-7650 is a precision-engineered N-Type Female to Female Inline Splice Connector designed for high-frequency RF applications. With its robust construction and reliable performance, this adapter is ideal for professionals in telecommunications, broadcasting, and RF testing environments. Tri-Tek Electronics, as an authorized distributor, ensures full manufacturer warranty coverage, competitive pricing, and direct factory support for this product. Key Features Connector Type: N-Type Female to N-Type Female Impedance: 50 Ohms Frequency Range: DC to 11 GHz Construction: Durable nickel-plated brass housing with gold-plated contacts Length: 1.2585 inches (31.96 mm) Compatibility: UG-29B/U standard Cross-Reference Part Numbers: RFN-1013-1, Amphenol 82-101 Typical Applications The RFN-7650 is commonly used to connect two N-Type male cables, facilitating seamless signal transmission in: RF testing setups Antenna installations Telecommunication systems Broadcasting equipment Laboratory environments For instance, an RF technician in Phoenix might use this adapter to extend the length of an existing coaxial cable run without compromising signal integrity, ensuring optimal performance in high-frequency applications. Why Choose Tri-Tek Electronics? Tri-Tek Electronics, located in Mesa, Arizona, is committed to providing high-quality electronic components to professionals and hobbyists alike. As an authorized distributor of Pan Pacific products, we guarantee: Authentic products with full manufacturer warranty Competitive pricing and direct factory support Expert advice and customer service tailored to your needs Visit our Mesa retail location or contact us to learn more about the RFN-7650 and other RF connectivity solutions.

Read more less
