D-Sub Connectors and Hardware

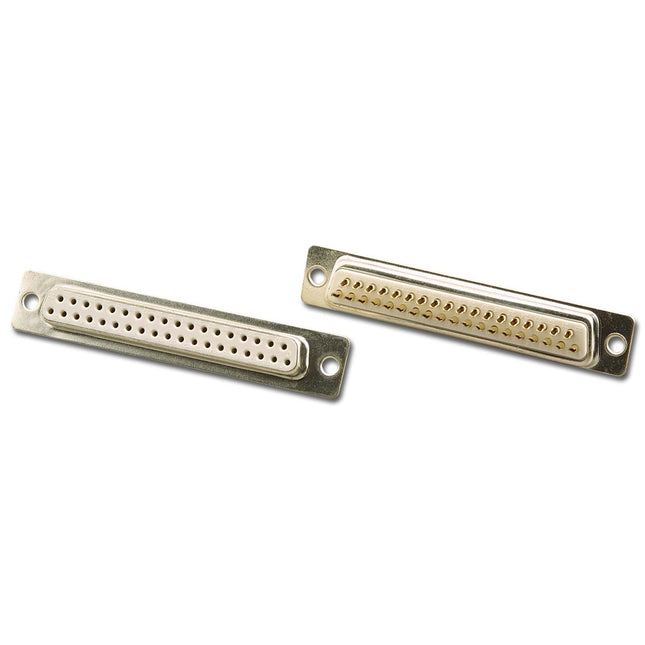

Pan Pacific DS-37S/T-P 37-Pin Female D-Sub Connector – Solder Cup, Tin Shell The Pan Pacific DS-37S/T-P is a full-size DB-37 female connector designed for reliable point-to-point wiring in control systems, test equipment, and data-acquisition racks. Sturdy tin-plated steel shells shield sensitive signals, while precision solder-cup contacts provide secure terminations for discrete leads or custom cable assemblies. Tri-Tek Electronics in Mesa, AZ is an authorized Pan Pacific distributor, offering factory-fresh connectors with complete manufacturer warranty, competitive local pricing, and responsive Phoenix-area support. Key Features & Benefits Standard DB-37 female layout with 37 solder-cup contacts for easy hand-solder termination Tin-plated steel shell delivers rugged mechanical protection and 360° EMI/RFI shielding High-temperature glass-filled PBT insulator resists flux and reflow heat during assembly Copper-alloy contacts with overall tin plating ensure low contact resistance and excellent solder wicking Threaded 4-40 jack-screws included for secure panel or cable-mount mating Rated 3 A per contact, 300 V RMS, operating range –55 °C to +105 °C RoHS-compliant materials meet modern environmental directives Example Installation Scenario A Mesa-based machine-builder is wiring a PLC breakout panel that requires multiple discrete I/O signals to exit through one shielded cable. By soldering individual 22-AWG leads to the DS-37S/T-P’s cups and anchoring the connector to a bulkhead cut-out, the technician creates a serviceable, EMI-tight interface that mates directly with the customer’s existing DB-37 harness—saving time and ensuring plug-and-play compatibility on the factory floor. Value for Installers, Hobbyists, and Technicians Control-panel builders achieve neat, high-density terminations without specialized crimp tooling Electronics hobbyists assemble custom breakout boxes for vintage computer or audio gear Field service techs keep spares on hand to replace damaged connectors during on-site repairs Why Buy from Tri-Tek Electronics Tri-Tek Electronics stocks the DS-37S/T-P for same-day will-call or rapid shipment throughout Phoenix, Chandler, Gilbert, Tempe, Scottsdale, and Glendale. Every connector is backed by Pan Pacific’s warranty and supported by our in-house applications team to guarantee the right fit for your project.

Read more less

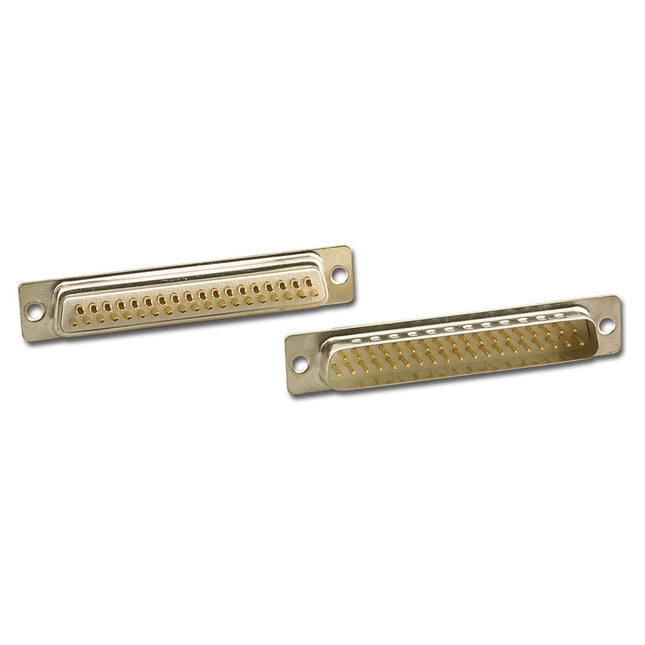

Pan Pacific DS-37P/T 37-Pin Male D-Sub Connector – Solder Cup, Tin Shell The Pan Pacific DS-37P/T is a robust DB-37 male connector engineered for dependable point-to-point wiring in industrial control cabinets, laboratory instrumentation, and legacy serial-bus interfaces. Its tin-plated steel shell shields sensitive signals against EMI/RFI, while precision solder-cup contacts accept discrete wires for custom harnesses and field repairs. Tri-Tek Electronics in Mesa, AZ is an authorized Pan Pacific distributor, providing factory-fresh connectors with full manufacturer warranty, best local pricing, and responsive support for professionals across the Phoenix metro area. Key Features and Benefits Standard DB-37 male configuration with 37 solder-cup contacts for secure hand-solder terminations Tin-plated steel shell offers rugged mechanical protection and 360-degree electromagnetic shielding High-temperature glass-filled PBT insulator withstands soldering heat and resists chemical attack Copper-alloy contacts tin-plated for low resistance and excellent solder flow Supplied with 4-40 jack-screws and hex nuts for reliable panel or hood mounting Rated 3 A per contact at 300 V RMS; operating temperature –55 °C to +105 °C RoHS-compliant construction meets current environmental standards Example Installation Scenario A Phoenix-based automation engineer is retrofitting a motion-control enclosure that routes 32 digital I/O lines to a breakout box. By soldering color-coded 24-AWG leads to the DS-37P/T cups and fastening the connector to a punched sub-panel opening, the technician creates a serviceable, shielded interface that mates cleanly with the customer’s existing female DB-37 cable—minimizing downtime and ensuring seamless integration. Value for Installers, Hobbyists, and Technicians Panel builders gain high-density terminations without investing in specialized crimp tooling Electronics hobbyists assemble custom bench test fixtures or vintage computer adapters with professional results Field service techs keep a few on hand to replace damaged connectors during on-site equipment repairs Why Buy from Tri-Tek Electronics Tri-Tek Electronics stocks the DS-37P/T for same-day will-call or rapid shipment throughout Mesa, Chandler, Gilbert, Tempe, Scottsdale, Glendale, and the wider Phoenix area. Every connector is factory-fresh, fully warranted by Pan Pacific, and backed by our in-house applications team to ensure the perfect fit for your project.

Read more less

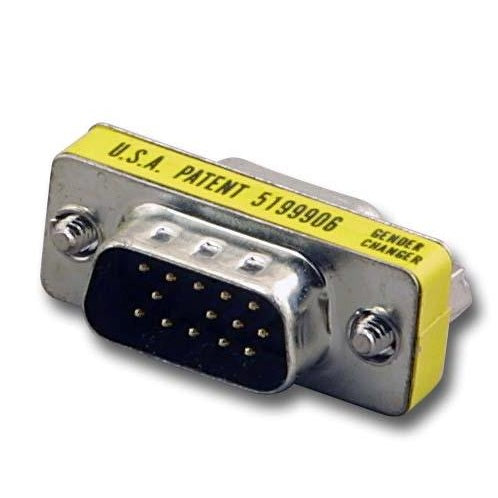

Pan Pacific AD‑LGC‑H15MM — Low Profile VGA HiDen 15‑Pin Gender Changer (Male ↔ Male) Product Overview The Pan Pacific AD‑LGC‑H15MM is a low profile HiDen (high density) 15‑pin D‑Sub gender changer, with male connectors on both ends. It is designed to couple two female HD15 (VGA-style) ports in a compact footprint, ideal where space is limited or depth behind panels is shallow. This model is part of Pan Pacific’s passive adaptor series, specifically designed for use in environments requiring minimal connector depth and clean inline connectivity. This version of the AD-LGC-H15MM is specified without pin 9, making it ideal for systems that do not require a power signal (such as 5V on pin 9 in some VGA configurations). The omission of pin 9 also reduces potential shorting risks and signal interference in simplified signal-only transmission scenarios. Key Features & Specifications Parameter Description Connector Type D‑Sub HiDensity 15‑pin (HD15) VGA Gender Male ↔ Male (couples two female ports) Profile Low profile (shallow depth for tight installations) Pin 9 Not present / not wired Application Type Inline VGA coupling or panel-mount scenarios Shell Type Metal shell with hex nut spacers for secure fitment Use Cases & Best Practices Tight-Space VGA Panel InstallationsIdeal for mounting behind wall plates, control panels, or rack-mounted faceplates where clearance is minimal. Ensures flush mounting without stressing connectors or causing bulging. Direct VGA Cable CouplingEnables quick connection between two female VGA cables or port jacks without the need for bulky adapters. Maintains a professional, clean install finish. Signal-Only VGA SystemsSuitable for signal-only VGA configurations where pin 9 (typically used for +5V power) is not required. Reduces unnecessary voltage lines in environments where they are not needed. Rack System CablingIn equipment racks or A/V hubs where adjacent ports and limited depth are concerns, this low-profile gender changer minimizes spatial interference and maintains proper cable management. Example Installation Scenario An AV technician is wiring a conference room with a VGA wall plate connected to a projector input. Both ends of the setup use female VGA connectors. The AD‑LGC‑H15MM allows the technician to join these female ends cleanly and securely behind the wall plate. Its low-profile design prevents wall obstruction and stress on the connectors, maintaining both aesthetic and electrical integrity. Another common use case would be within an AV rack, where space between patch panels and rear bulkhead connections is limited. This gender changer fits easily without interfering with other panel-mounted gear or straining connector pins. Tri-Tek Electronics is an authorized distributor of Pan Pacific products. We ensure full manufacturer warranty coverage, factory-direct support, and offer the best industry pricing. Local customers in Mesa, AZ and surrounding areas including Phoenix, Chandler, Tempe, Gilbert, Glendale, and Scottsdale can also benefit from convenient in-store pickup and technical support from our retail location.

Read more less
