ICI152983, USB-C 3-in-1 Multiport A/V Converter
USB-C Male to DVI-I, HDMI or VGA Females; 4K@30Hz on HDMI Port, 1080p on VGA or DVI Ports; Black
Converts A/V signal from USB-C format into HDMI or video into VGA or DVI format
Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
Supports video resolutions up to 3840x2160 at 30 Hz (4K) for HDMI and 1920x1080 at 60 Hz (1080p) for VGA or DVI
Easily connect a USB Type-C source to a DVI, HDMI or VGA display

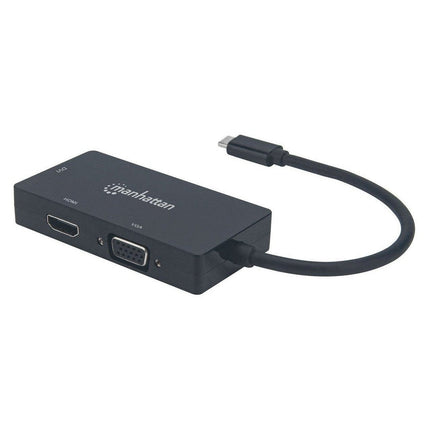

The Manhattan USB-C 3-in-1 Multiport A/V Converter gives you a fast, easy and convenient way to enjoy media from your newer USB-C-equipped computer, tablet, or smartphone on an existing DVI, HDMI or VGA display, monitor or projector. The Converter takes media from a USB-C source and turns it into HDMI audio/video (up to 4K@30Hz resolution [Ultra-High-Definition, UHD]), or DVI or VGA video (up to 1080p [HD]) so you can watch it on the display you're connected to at its supported resolution. The Converter keeps you well covered in connecting to most screens you'll come across since most screens offer DVI, HDMI or VGA connections.
Quality Construction and Easy Installation
The Converter offers full compliance with USB-C, DVI and HDCP standards so you get years of great service and reliable performance. And setup is easy. Simply connect your display's DVI, HDMI or VGA cable (not included) to the right spot on the converter and plug the converter into your USB-C device. That's all there is to this affordable, variable-display solution — no software/hardware configuration or complicated settings required. The Converter helps you get the most use out of your DVI, HDMI or VGA display(s) so you don't have to buy a new screen to enjoy media from your USB-C device.
Features:
Converts A/V signal from USB-C format into HDMI or video into VGA or DVI format
Offers Ultra-High-Definition (UHD) images on an HDMI monitor, projector or other display device
Supports video resolutions up to 3840x2160 at 30 Hz (4K) for HDMI and 1920x1080 at 60 Hz (1080p) for VGA or DVI
USB-C compliance with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
Compatible with all USB-C devices that support DP Alt Mode
Compatible with DVI-I and DVI-D interfaces
Compact, portable design; perfect for traveling and connecting to any display
Plug and Play; requires no external power supply
Fully shielded to reduce EMI and other interference sources
Molded PVC boot and strain relief
Three-year warranty
Standards and Certifications
USB 3.1
HDMI
HDCP 1.4
CE
FCC
RoHS2
WEEE
General
Video Resolutions: 640x480, 800x600, 1024x768, 1920x1080, 1920x1200, 3840x2160 at 30 Hz
32 AWG connectors
Shielding: Mylar and aluminum
Withstanding voltage: 300 V DC
Insulation resistance: 5 MΩ
Conductive resistance: 10 Ω
Supports one output at a time
Note: VGA and DVI do not support audio
Connections
USB Type-C 24-pin, male
HDMI 19-pin, female
DVI-I Single Link 29-pin, female
VGA 15-pin, female
Shielded
Physical
32 AWG cable gauge
Mylar and aluminum shielding
Thermal plastic casing
Housing length: 8.5 cm (3 in.)
Cable length: 10 cm (3.9 in.)
Weight: 51 g (1.1 oz.)
Shielded
Housing: ABS plastic
Operating Environment
Operation Temperature: 0 – 50°C (32 – 122°F)
Storage Temperature: 0 – 80°C (32 – 176°F)
Humidity (noncondensing): 5 – 90%
System Requirements
Windows 8.1/10 or Linux
Mac 10.12 or above
Package Contents
USB-C 3-in-1 Multiport A/V Converter
Quick Instruction Guide
