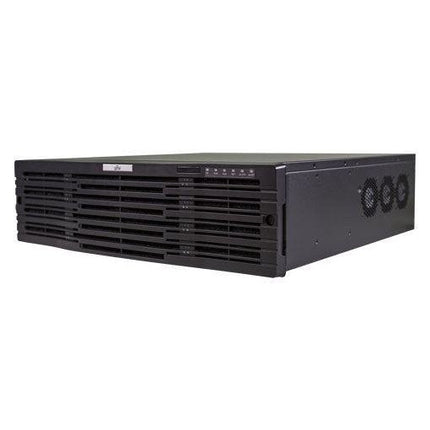

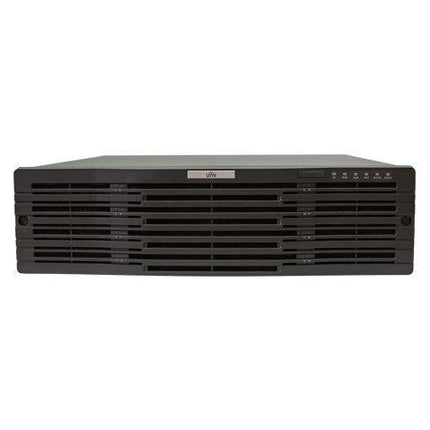

Uniview NVR516-128 High-Capacity 128-Channel 12MP NVR with 16 HDD RAID Support
The Uniview NVR516-128 is a powerful and high-capacity network video recorder (NVR) designed for extensive surveillance systems, supporting up to 128 channels of video input with 12MP resolution. This NVR is ideal for large-scale security installations such as airports, shopping malls, and city surveillance, where robust performance and reliable storage are critical.
With support for 16 hard drives (HDDs) and RAID configuration, the NVR516-128 provides ample storage and enhanced data protection, ensuring continuous recording and data integrity. The NVR is equipped with advanced video compression technologies like H.265, significantly reducing bandwidth and storage requirements. Additionally, its intuitive user interface and remote access capabilities make it a preferred choice for professional installers and technicians.
Capability Highlights:
- Face Recognition
- People Counting
-
License Plate Recognition (LPR)
-
Dewarping (Fisheye or Pano): 4*4MP or 2*5MP or 2*4K
- Color Search Retrieval
Key Features:
-
Supports 128 Channels: Handles large-scale surveillance systems with up to 128 IP cameras.
-
12MP Resolution Support: Captures ultra-high-definition video with up to 12MP resolution for clear and detailed images.
-
16 HDD Bays: Offers extensive storage capacity with support for 16 HDDs, ensuring long-term video retention.
-
RAID Support: Includes RAID 0/1/5/6/10 for enhanced data protection and redundancy.
-
H.265 Video Compression: Efficiently compresses video to reduce bandwidth and storage usage without compromising video quality.
-
4K Video Output: Provides a clear display with 4K resolution via HDMI output for high-quality monitoring.
-
Hot-Swappable HDDs: Allows easy replacement of hard drives without system downtime.
-
Advanced Security Features: Includes motion detection, event alerts, and customizable recording schedules.
-
Remote Access: Manage and view recordings remotely via web browsers or mobile apps (iOS and Android).
-
Easy Integration: Compatible with third-party IP cameras through ONVIF compliance.
Installation Scenario:
The Uniview NVR516-128 is ideal for large-scale installations requiring extensive surveillance coverage, such as industrial complexes, corporate campuses, and municipal surveillance projects. For instance, an airport might deploy this NVR to manage video feeds from hundreds of cameras covering different zones, including terminals, runways, and parking areas. The high channel count, along with 16 HDD bays and RAID support, ensures that all critical footage is recorded and safely stored, even in high-traffic environments. Installers will find the NVR516-128’s hot-swappable HDD feature particularly beneficial, as it minimizes system downtime during maintenance.
Why Choose Tri-Tek Electronics:
Tri-Tek Electronics is an authorized distributor of Uniview products, ensuring you receive full manufacturer warranty coverage, competitive pricing, and factory support. Our retail location in Mesa, AZ, offers convenient access to the latest surveillance technology, backed by expert customer service.
Specifications:
-
Video Input: 128 Channels
-
Video Output: HDMI (up to 4K), VGA
-
Recording Resolution: Up to 12MP
-
Compression Format: H.265/H.264/MJPEG
-
Storage: 16 SATA interfaces, up to 16TB per HDD, supporting RAID 0/1/5/6/10
-
Network Protocols: TCP/IP, DHCP, DNS, DDNS, NTP, RTSP, etc.
-
Remote Access: Web browsers, mobile apps (iOS, Android)
-
Power Supply: Dual redundant power supply, AC 100~240V
-
Operating Temperature: -10°C to 55°C (14°F to 131°F)
-
Dimensions: 440mm × 460mm × 133mm (17.3" × 18.1" × 5.2")
