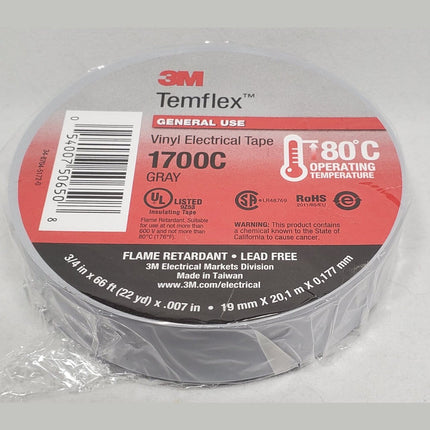

3M™ Temflex™ Vinyl Electrical Tape 1700, Gray – Closeout Special
The 3M™ Temflex™ Vinyl Electrical Tape 1700 is a 7-mil thick, general-purpose vinyl electrical tape designed for protective jacketing and harnessing. This flame-retardant tape is suitable for indoor and weather-protected outdoor applications, providing reliable performance for various electrical tasks.
Features & Benefits:
-
Flame-Retardant: Enhances safety by reducing the risk of fire.
-
Durable PVC Backing: Offers excellent resistance to abrasion, moisture, alkalies, acids, and varying weather conditions.
-
Versatile Application: Ideal for primary electrical insulation of wire and cable splices up to 600V and protective jacketing.
-
Temperature Resistant: Performs in a wide operating temperature range of 32°F to 176°F (0°C to 80°C).
-
Compliance: UL Listed and CSA Certified, ensuring adherence to industry standards.
Applications: This tape is suitable for primary electrical insulation of splices up to 600 volts, protective jacketing for high-voltage cable splices and repairs, and harnessing of wires and cables. Its conformable nature allows for easy application on irregular surfaces, making it a versatile solution for various electrical insulation needs.
Example Installation Scenario: An electrician can use the 3M™ Temflex™ 1700 tape to insulate a wire splice in a residential electrical system. The tape's flame-retardant properties and durable PVC backing provide a secure and long-lasting insulation solution, ensuring safety and reliability.
Authorized Distributor: Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of 3M products. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and access to factory support.
Specifications:
-
Part Number: 3M1700C
-
Color: Gray
-
Thickness: 7 mils (0.18 mm)
-
Width: 0.75 inches (19 mm)
-
Length: 66 feet (20.1 meters)
-
Operating Temperature Range: 32°F to 176°F (0°C to 80°C)
-
Dielectric Strength: >1000 V/mil
-
Breaking Strength: 17 lbs/in (30 N/cm)
-
Elongation: 200%
-
Adhesion to Steel: 22 oz/in (2.4 N/cm)
-
Adhesion to Backing: 22 oz/in (2.4 N/cm)
Closeout Special: This is a closeout special, with price and availability limited to stock on hand only. Take advantage of this offer to secure high-quality electrical tape at a competitive price.
