Description

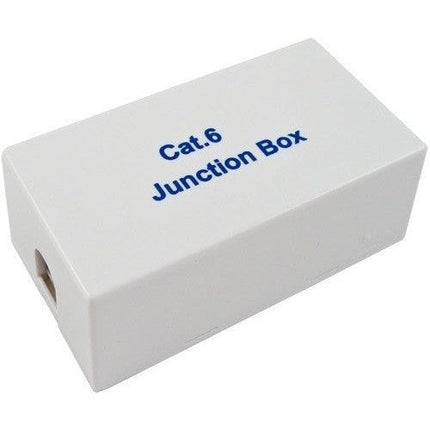

Vertical Cable 040-372/C6J/WH Cat 6 Junction Splice Box – White
The Vertical Cable 040-372/C6J/WH Cat 6 Junction Splice Box is a robust and reliable solution for extending or repairing Ethernet cable runs. Constructed from high-impact ABS plastic, this junction box is designed to withstand the demands of both residential and commercial networking environments. Its compact, white housing ensures a clean and professional appearance in any installation.
Key Features
-
High-impact ABS construction for durability
-

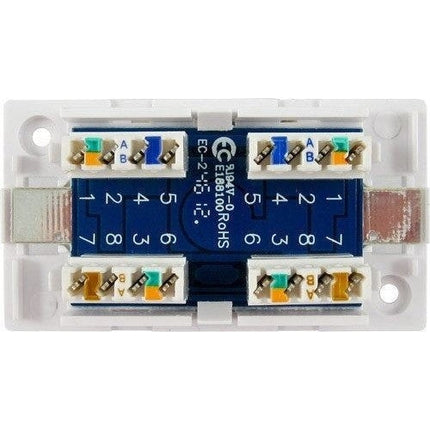

Compatible with both 110 and Krone type termination blocks
-
Supports T568A and T568B wiring standards
-
Includes screws, cable ties, and adhesive tape for mounting flexibility
-
UL 94 V-0 fire retardant rating and UL listed
-
Complies with ISO/IEC 11801 and ANSI/TIA/EIA 568 B.2 standards
-
Operates in environments from -10°C to 60°C
-
Supports 22-26 AWG solid wire
Technical Specifications
| Specification |
Details |
| Part Number |
040-372/C6J/WH |
| Color |
White |
| Material |
High-impact ABS plastic |
| Termination Types |
110 & Krone |
| Wiring Standards |
T568A & T568B |
| Fire Rating |
UL 94 V-0 |
| Certifications |
UL Listed |
| Operating Temperature |
-10°C to 60°C |
| Wire Gauge Compatibility |
22-26 AWG solid wire |
| Standards Compliance |
ISO/IEC 11801, ANSI/TIA/EIA 568 B.2 |
Installation Scenario
In a commercial office setting in Mesa, Arizona, an installer encounters a damaged Cat 6 cable run within a wall. Utilizing the Vertical Cable 040-372/C6J/WH Junction Splice Box, the technician can efficiently splice the cable without the need for a complete rewire. The included mounting accessories allow for secure attachment to various surfaces, ensuring a stable and professional repair that maintains network integrity.
Tri-Tek Electronics, located in Mesa, AZ, is an authorized distributor of Vertical Cable products. Purchasing from Tri-Tek ensures full manufacturer warranty coverage, competitive pricing, and factory support. Whether you're an installer, hobbyist, or technician, the 040-372/C6J/WH Junction Splice Box offers a dependable solution for maintaining and extending Cat 6 network installations.
